Description

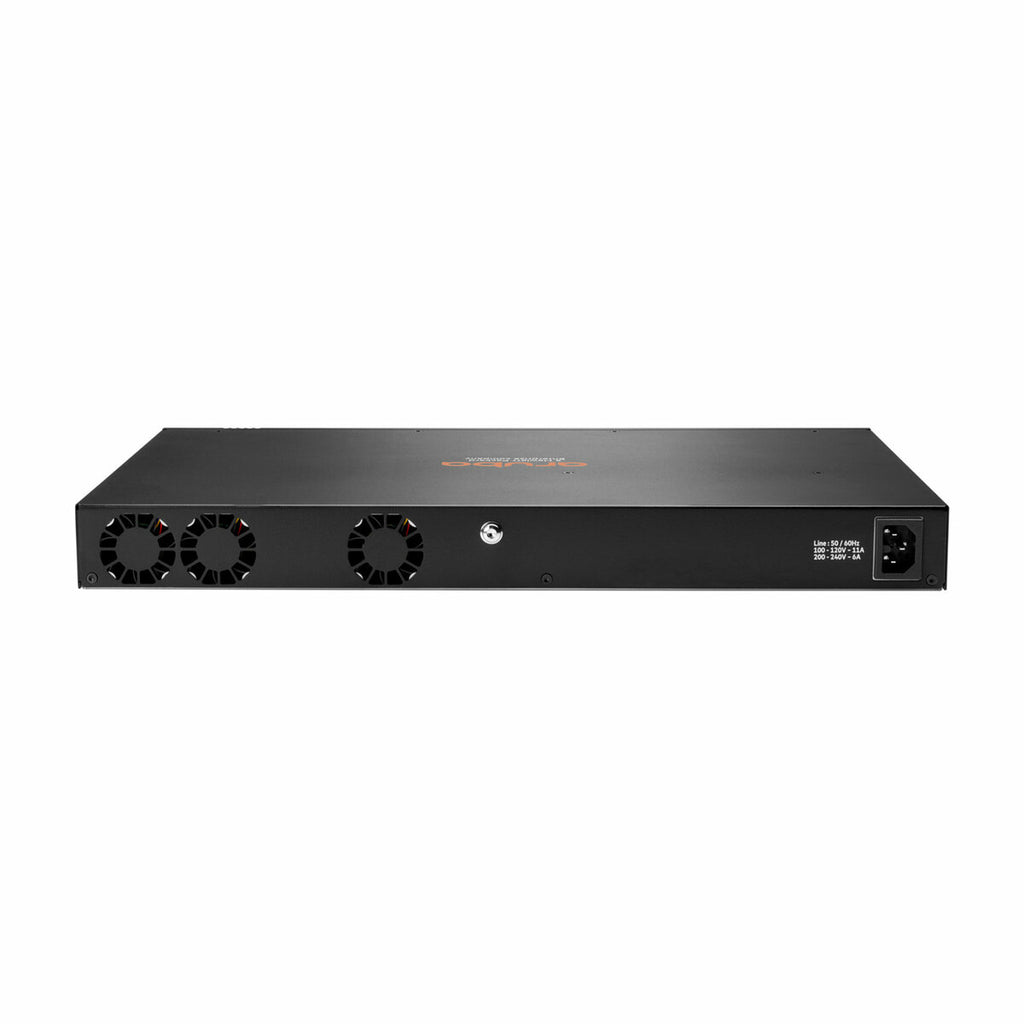

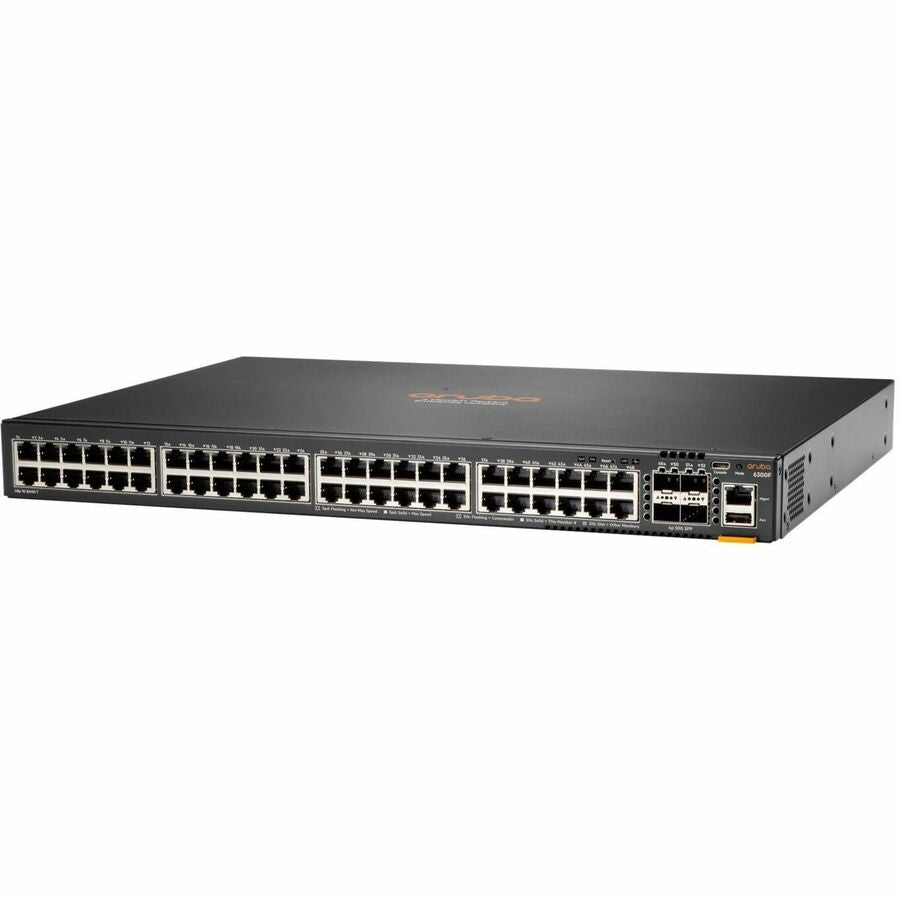

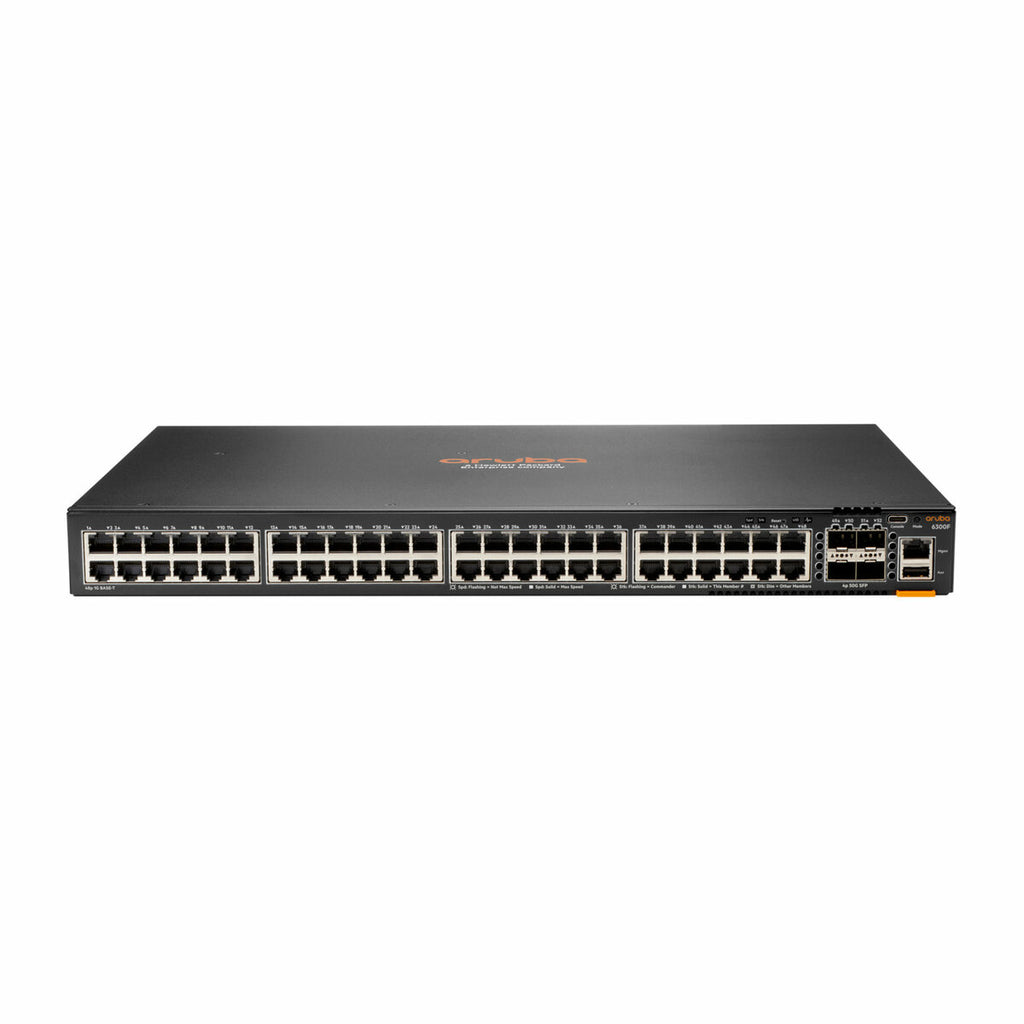

The HPE Aruba Networking CX 6300F Switch (JL667A#ARB) is a high-performance, stackable Layer 3 managed switch with 48 Gigabit Ethernet ports and 4 high-speed SFP56 uplink/stacking ports. Designed for enterprise campus, branch, and data center deployments, it features a fully programmable OS, Gen7 ASICs for wire-speed switching, and Arubaβs Network Analytics Engine for real-time network insights.
This switch supports advanced Layer 3 routing protocols including BGP, OSPF, and VRF, making it ideal for scalable environments requiring intelligent segmentation, automation, and security. The CX 6300F delivers powerful stacking capabilities, front-plane VSF, and supports up to 10 units per stack.
With flexible PoE support, robust management options including Aruba Central and Switch Multi-Edit Software, and support for Smart Rate and MACsec, the JL667A#ARB offers unmatched operational efficiency and performance.
| Category | Details |
|---|---|
| Model Number | JL667A#ARB |
| Switch Type | Layer 3, Managed, Stackable |
| Ports | 48 Γ 10/100/1000Base-T, 4 Γ SFP56 (1G/10G/25G/50G) uplink/stacking ports |
| Console Ports | 1 Γ USB-C, 1 Γ USB-A, 1 Γ OOBM Ethernet port |
| Performance | Switching Capacity: 496 GbpsThroughput: 369 Mpps |
| Latency | 1Gbps: 2.28ΞΌs10Gbps: 1.46ΞΌs25Gbps: 1.90ΞΌs50Gbps: 3.49ΞΌs |
| PoE Support | IEEE 802.3af (PoE), 802.3at (PoE+) |
| Stacking | Up to 10 switches per stack (VSF, front-plane stacking) |
| Memory & Processor | Quad Core Arm Cortex-A72 @ 1.8GHz8GB DDR4 RAM32GB eMMC flash |
| Network OS | ArubaOS-CX with Network Analytics Engine (NAE) |
| Power Supply | Fixed PSU 100V-120V / 200V-240V AC |
| Power Consumption | Idle: 52WMax Load: 74W |
| Cooling | Front-to-back and side-to-back airflow |
| Mounting | Rack-mountable (1U height) |
| Dimensions | 1.73 Γ 17.4 Γ 12.9 in (4.4 Γ 44.2 Γ 32.8 cm) |
| Management | Aruba Central, AirWave, CLI, SNMP v2c/v3, RMON, REST API, Switch Multi-Edit |
| Advanced Features | VXLAN, EVPN, VRF, Dynamic Segmentation, MACsec-256, QoS, AVB, PTP, LRM |
