Description

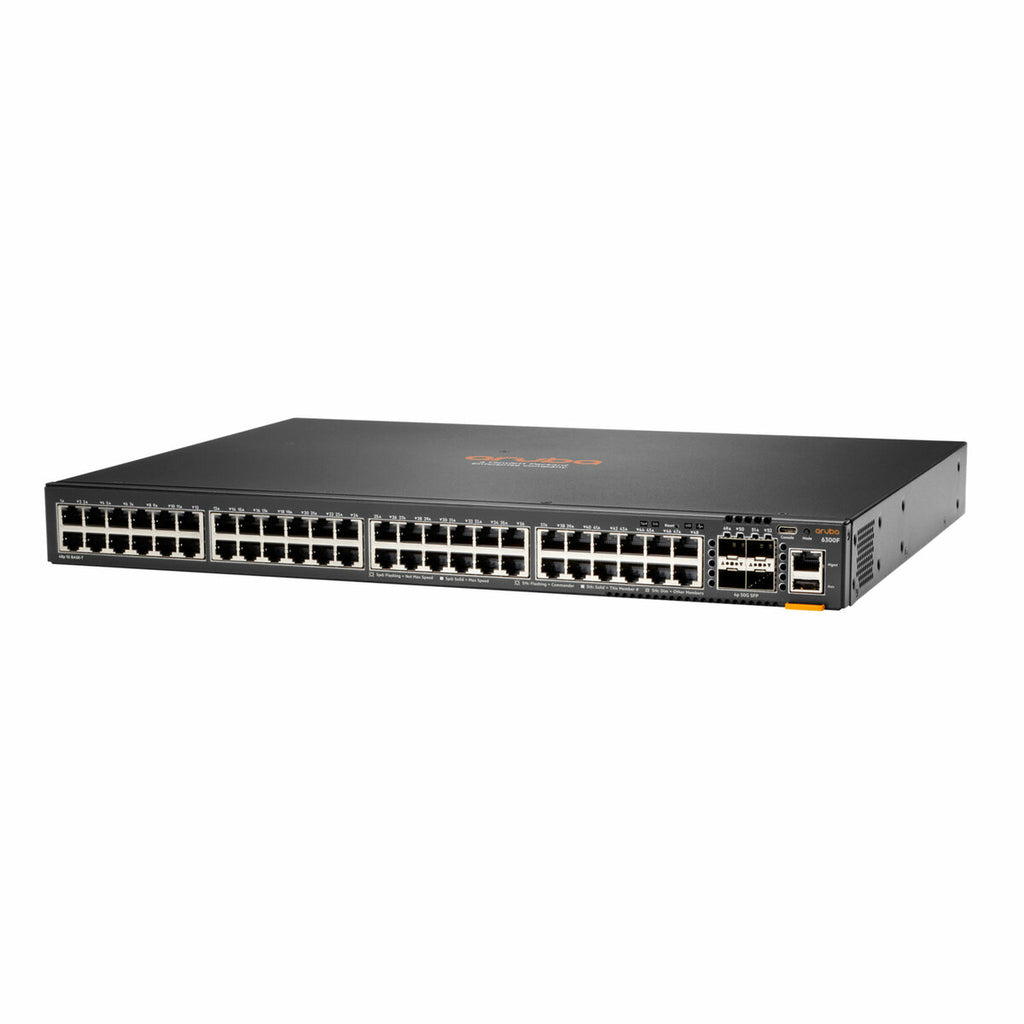

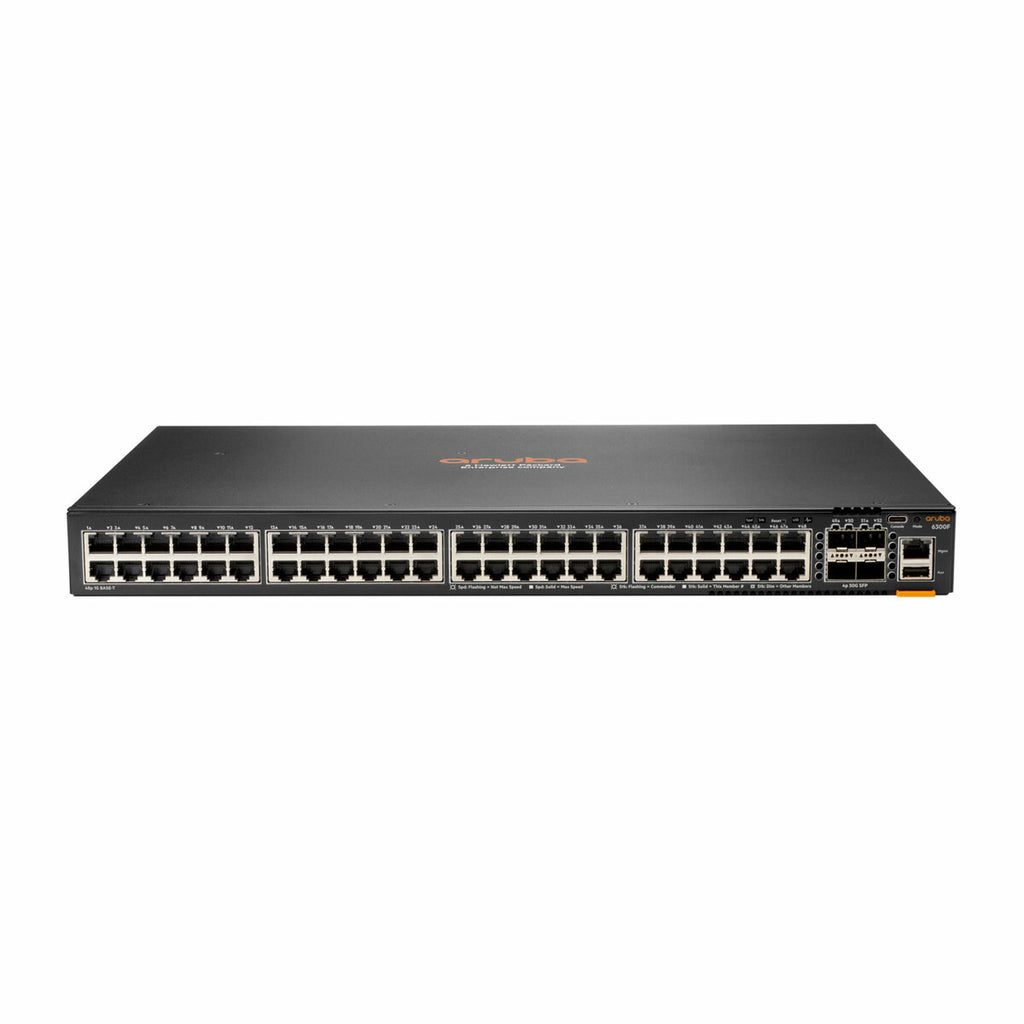

The HPE Aruba Networking CX 6300F JL667A#ACF is a high-performance, stackable Layer 3 managed switch designed for enterprise access and aggregation layers. With 48 Gigabit Ethernet ports and 4 high-speed SFP56 uplink/stacking ports, it supports intelligent network automation, visibility, and security features. Powered by Aruba’s Gen7 ASICs and AOS-CX, this switch delivers low-latency, non-blocking performance and enables simplified network operations with tools like the Aruba Network Analytics Engine and Central cloud management. Ideal for modern enterprise environments demanding scalability, PoE, and multi-gigabit speeds.
| Specification | Details |
|---|---|
| Model Number | JL667A#ACF |
| Series | Aruba CX 6300F Switch Series |
| Switch Type | Layer 3, Stackable, Managed |
| Ports | 48 × 10/100/1000BASE-T + 4 × SFP56 (1G/10G/25G/50G) |
| Stacking | Up to 10 switches (via VSF over SFP56 ports) |
| Console Ports | 1 × USB-C, 1 × USB Type-A, 1 × OOBM |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | 1G: 2.28µs, 10G: 1.46µs, 25G: 1.90µs, 50G: 3.49µs |
| Processor & Memory | Quad-Core ARM Cortex A72 1.8GHz, 8GB DDR4 RAM, 32GB eMMC |
| PoE Support | No PoE on this model |
| Operating System | Aruba AOS-CX |
| Management | Aruba Central, AirWave, CLI, SNMP v2c/v3, RMON |
| Airflow | Front and side to back |
| Mounting | Rack-mountable |
| Power Supply | Fixed PSU, 100–240V AC |
| Power Consumption | Idle: 52W, Full Load: 74W |
| Dimensions | 1.73 x 17.4 x 12.9 inches |
