Description

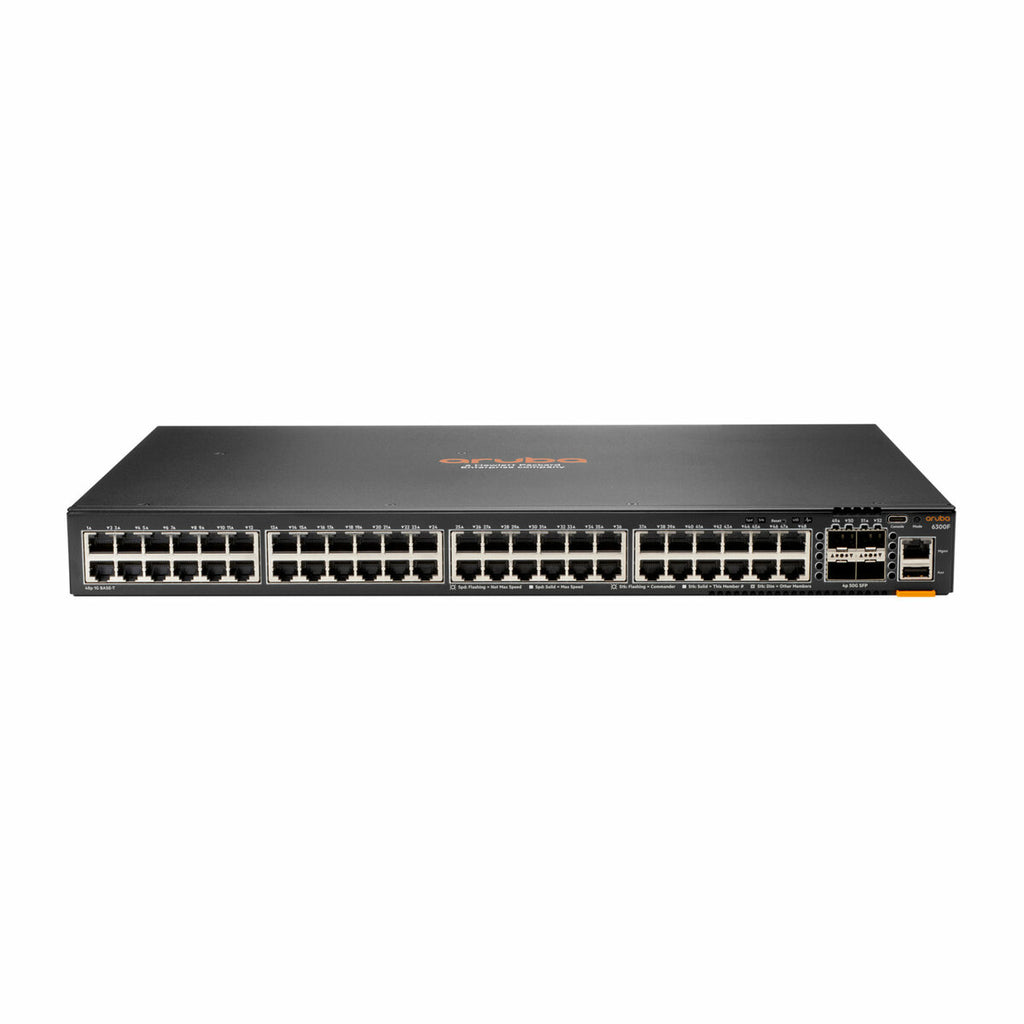

The HPE Aruba Networking CX 6300F Switch (JL667A#AC6) is a high-performance, intelligent Layer 3 stackable switch designed to meet the demands of enterprise access, aggregation, and top-of-rack deployments. Featuring 48 Gigabit Ethernet ports and 4 x SFP56 uplink/stacking ports, this switch delivers exceptional performance with up to 496 Gbps switching capacity and 369 Mpps throughput.
Powered by a Gen7 ASIC architecture and fully programmable AOS-CX, it offers real-time analytics, automation, and secure policy enforcement via Aruba Central and Network Analytics Engine (NAE). With VSF stacking support for up to 10 switches, robust PoE capabilities, and intelligent monitoring tools, this switch ensures scalability, visibility, and simplified network management.
Ideal for modern enterprise environments supporting IoT, cloud, and mobile-first applications.
| Specification | Details |
|---|---|
| Product Model | JL667A#AC6 |
| Series | HPE Aruba Networking CX 6300F |
| Switch Type | Layer 3 Managed Stackable Switch |
| Port Configuration | 48 x 10/100/1000 Base-T, 4 x SFP56 (1G/10G/25G/50G) |
| PoE Support | IEEE 802.3af, 802.3at |
| Stacking | Up to 10 switches with VSF |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | 1G: 2.28ΞΌs, 10G: 1.46ΞΌs, 25G: 1.90ΞΌs, 50G: 3.49ΞΌs |
| Processor & Memory | Quad-Core Arm Cortex-A72 @1.8GHz, 8GB DDR4, 32GB eMMC |
| Buffer Memory | 8 MB / 16 MB / 32 MB Shared Packet Buffer (model-dependent) |
| Management Interfaces | 1x USB-C Console, 1x OOBM, 1x USB Type-A |
| Management Options | Aruba Central, AirWave, CLI, SNMP v2c/v3, RMON, Multi-Edit Software |
| Stacking Bandwidth | Up to 400 Gbps |

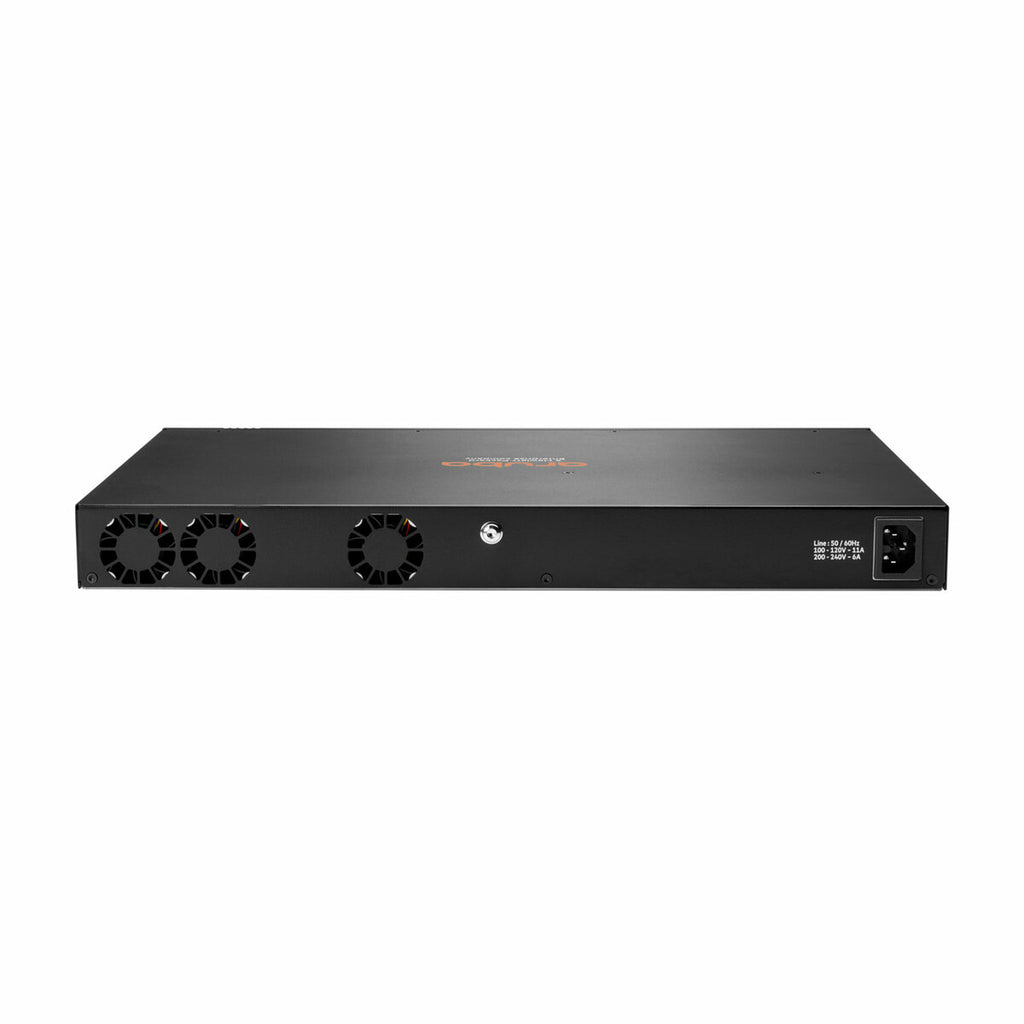

| Power Supply | Fixed PSU: 100Vβ120V / 200Vβ240V |
| Power Consumption | Idle: 52W, Max: 74W |
| Form Factor | 1U Rack-Mountable |
| Dimensions | 1.73 x 17.4 x 12.9 in (H x W x D) |
