Description

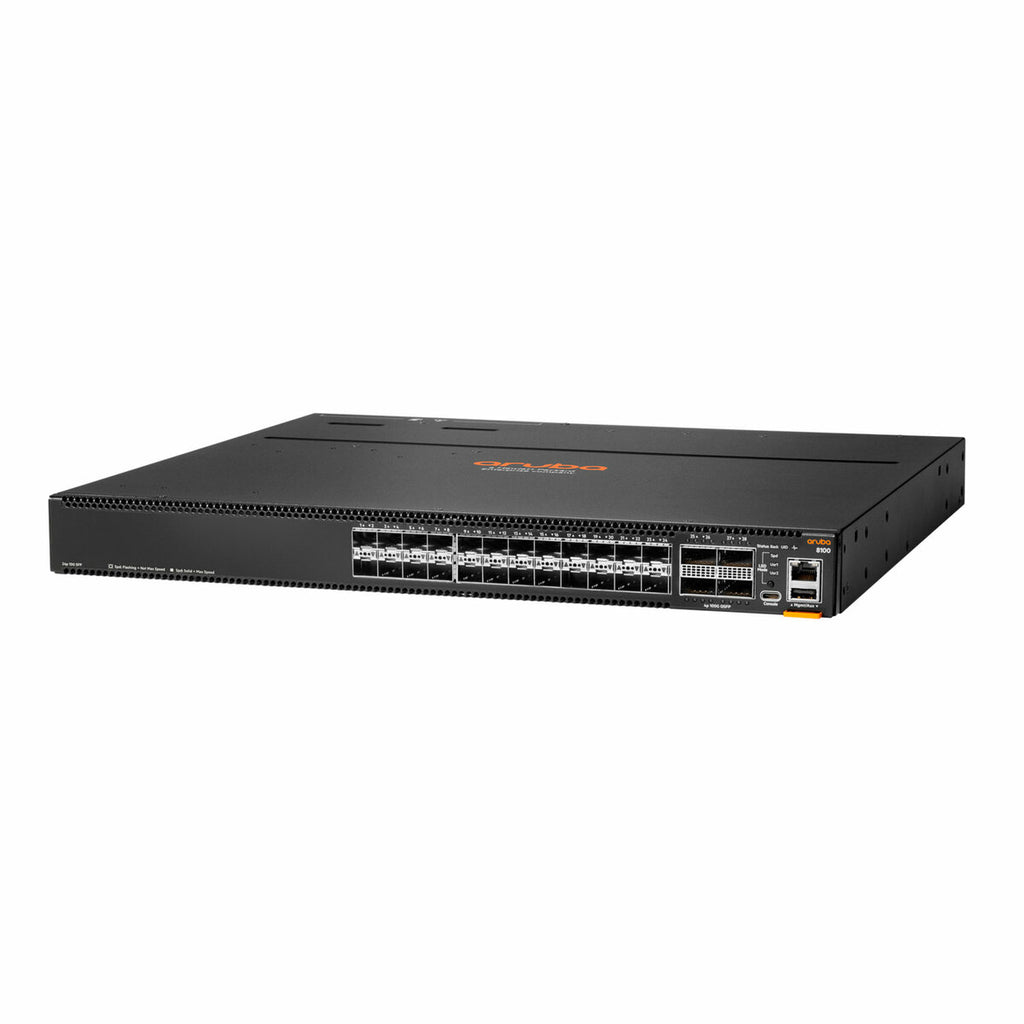

The HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch (R9W86A#ABA) is a high-performance, intelligent Layer 3 switch designed for modern enterprise networks, campus aggregation, and top-of-rack (ToR) data center environments. With 24 SFP/SFP+ ports and 4 QSFP+/QSFP28 ports, it supports 1/10/40/100GbE connectivity and breakout options for 10G and 25G, delivering 1.76 Tbps switching capacity and 1309 Mpps throughput.
Powered by the AOS-CX operating system, this switch delivers automation and programmability through REST APIs and Python scripting, while the Network Analytics Engine (NAE) provides deep network-wide visibility and intelligent monitoring. Redundant fans and power supplies ensure high availability, while front-to-back airflow makes it ideal for data center deployment.

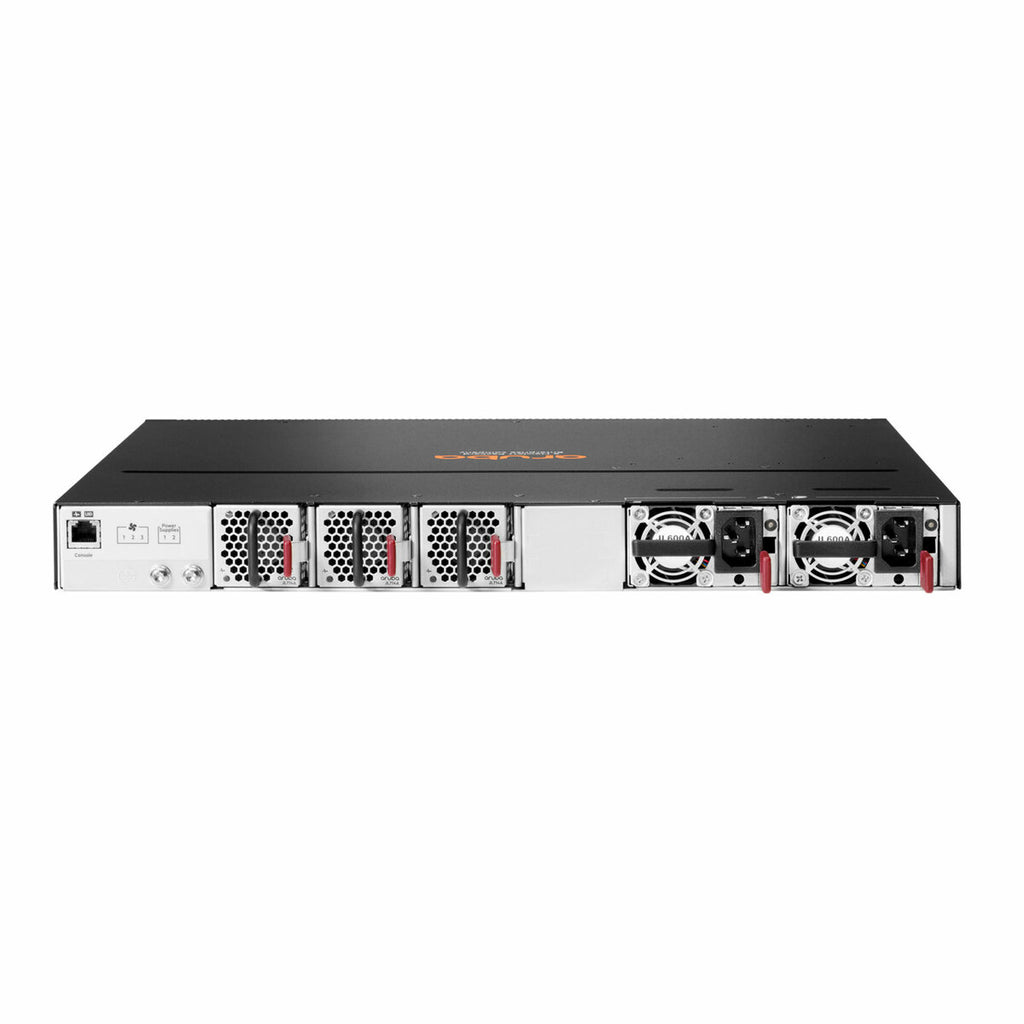

This model includes a 3-fan tray, 2x JL600A power supplies, and is rack-mountable.
| Specification | Details |
|---|---|
| Model SKU | R9W86A#ABA |
| Product Type | Layer 3 Managed Switch |
| Ports | 24x 1G/10G SFP/SFP+ 4x 40G/100G QSFP+/QSFP28 |
| Breakout Options | 4x10Gbps and 4x25Gbps from QSFP+ and QSFP28 ports |
| Airflow Direction | Front-to-Back |
| Fans | 3-fan tray included |
| Power Supplies | 2x JL600A 800W AC Power Supplies (included) |
| Processor | Quad Core ARM Cortex-A72 @ 1.8 GHz |
| Switching Capacity | 1.76 Tbps (bi-directional) |
| Forwarding Rate | 1309 Mpps |
| Idle/Max Power | 120W (Idle) / 375W (Max) |
| Heat Dissipation | 1275 BTU/hr |
| Input Voltage | 100–127V AC @ 7.1A 200–240V AC @ 3.4A |
| Management Interfaces | RJ-45 Serial Console, USB-C Console, USB-A, RJ-45 Mgmt Ethernet |
| OS | ArubaOS-CX |
| Features | VSX redundancy, Advanced L2/L3 (BGP, OSPF, VRF, IPv6), NAE, REST APIs |
| Form Factor | 1U rack-mountable |
