Description

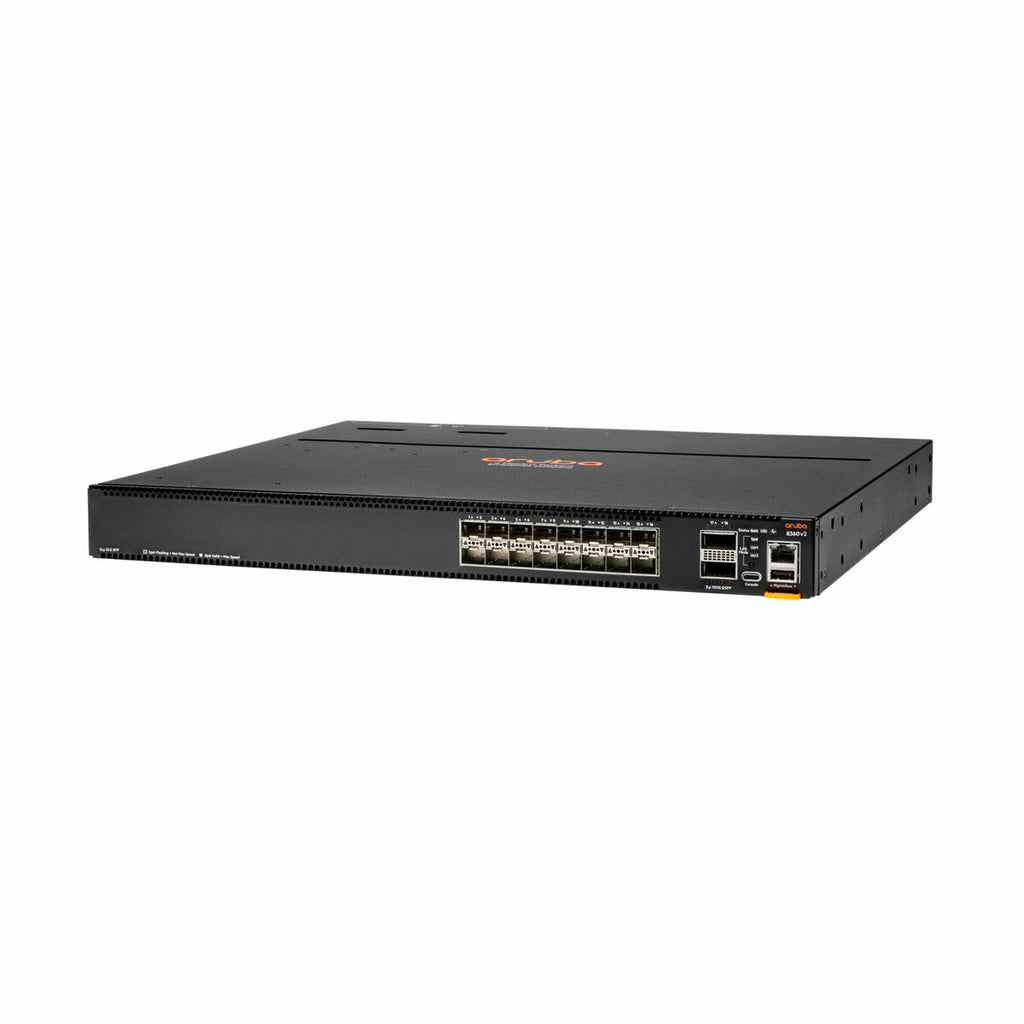

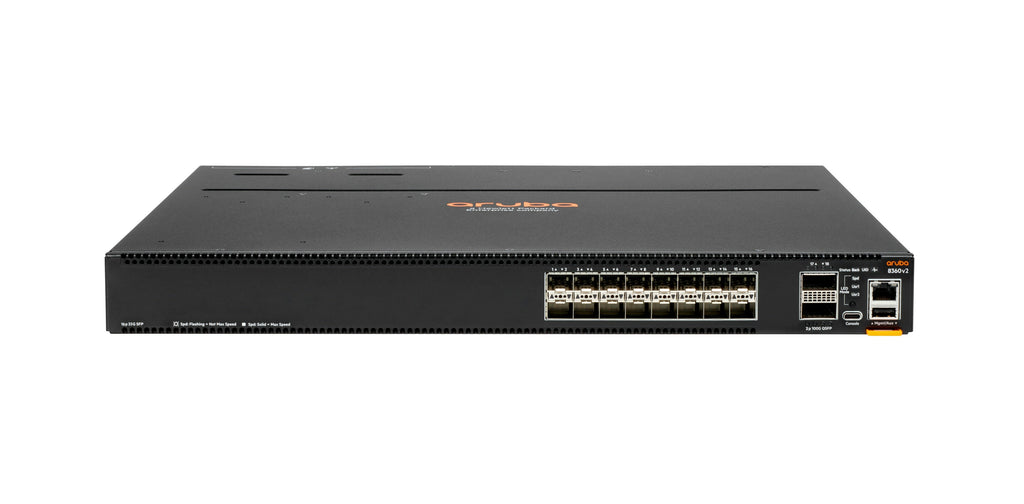

The HPE Aruba Networking CX 8360-16Y2C v2 is a high-performance, next-generation switch designed for campus core, aggregation, and virtual data center environments. With 16 ports of 1/10/25GbE and 2 ports of 40/100GbE, this rack-mounted, front-to-back airflow switch delivers 4.8 Tbps switching capacity and MACsec security, making it ideal for high-bandwidth and mission-critical networks.
Backed by the Aruba AOS-CX operating system, the CX 8360 v2 simplifies network management with embedded Network Analytics Engine (NAE), VSX high availability architecture, and support for software-defined automation through HPE Aruba Networking Fabric Composer.
Engineered with modular hardware and redundant fans and power, it offers superior fault tolerance, telemetry, and scale-out flexibility, enabling seamless upgrades and full network visibility.
| Feature | Details |
|---|---|
| Model Number | JL702C#B2B |
| Switch Type | Layer 3 Managed Switch |
| Ports | 16 × 1/10/25G SFP/SFP+/SFP282 × 40/100G QSFP+/QSFP28 |
| MACsec Support | Yes (selected ports) |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | 2,678 Mpps |
| Processor | 1.8 GHz 4-core, 64-bit CPU |
| Memory | 16 GB RAM |
| Storage | 32 GB Flash |
| Packet Buffer | 32 MB |
| Routing Protocols | Static (IPv4/IPv6), RIPv2, RIPng, OSPF/v3, BGP-4, MP-BGP (IPv6), MPLS, GRE |
| Management Interfaces | RJ45 Serial, USB-C Console, RJ45 Ethernet, USB Type-A |
| Airflow Direction | Front-to-back |
| Power Supply | Dual hot-swappable AC PSUs |
| Max Power Consumption | 325W |
| Idle Power Consumption | 110W |
| Heat Dissipation | 1,109 BTU/hr |
| Form Factor | 1U Rack-mountable |
| Dimensions (H x W x D) | 1.73 x 17.4 x 16.0 in |
| Weight | 17.00 lb |
