Description

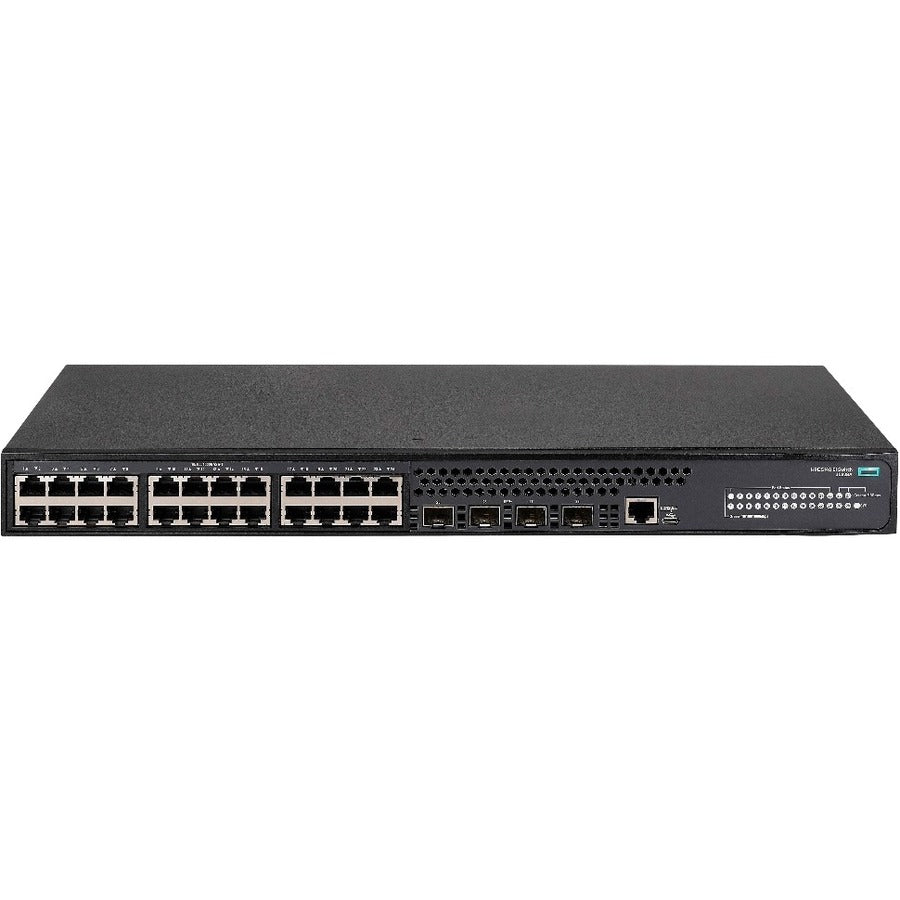

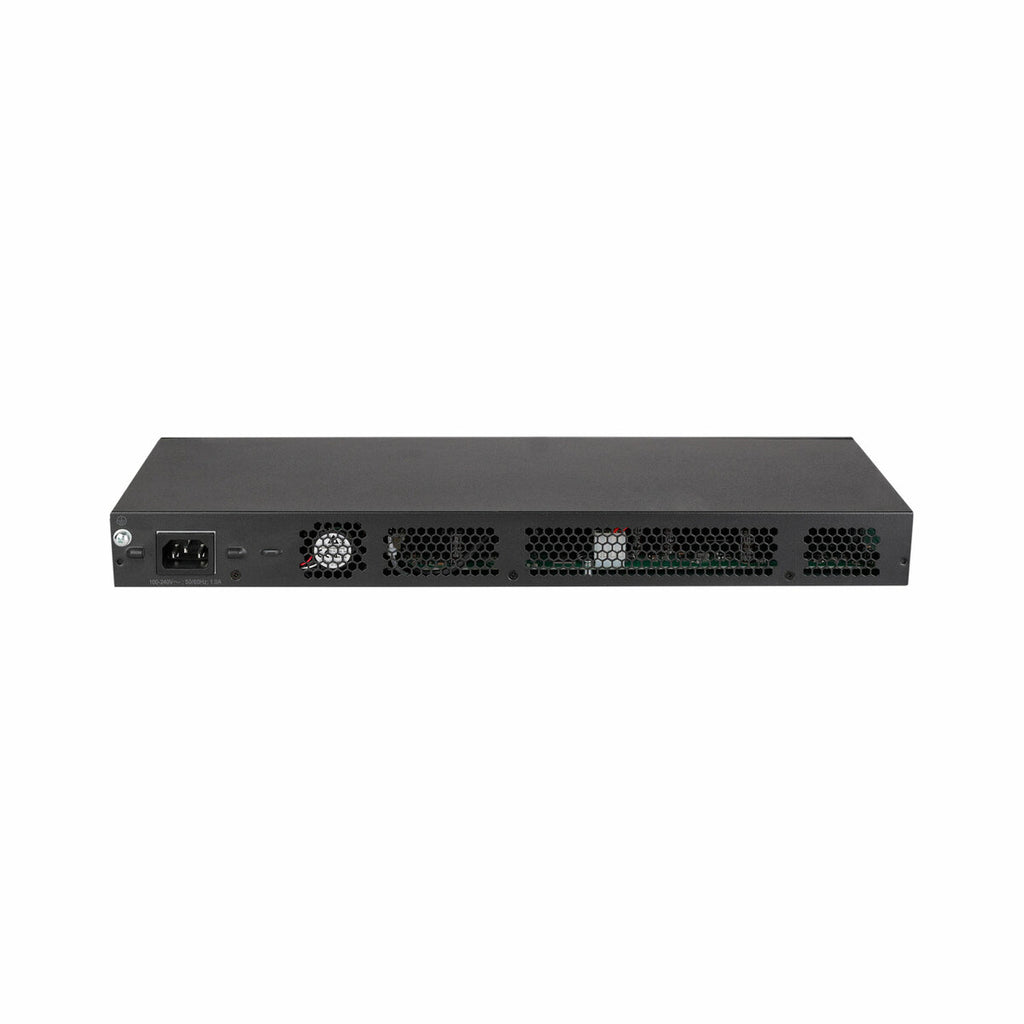

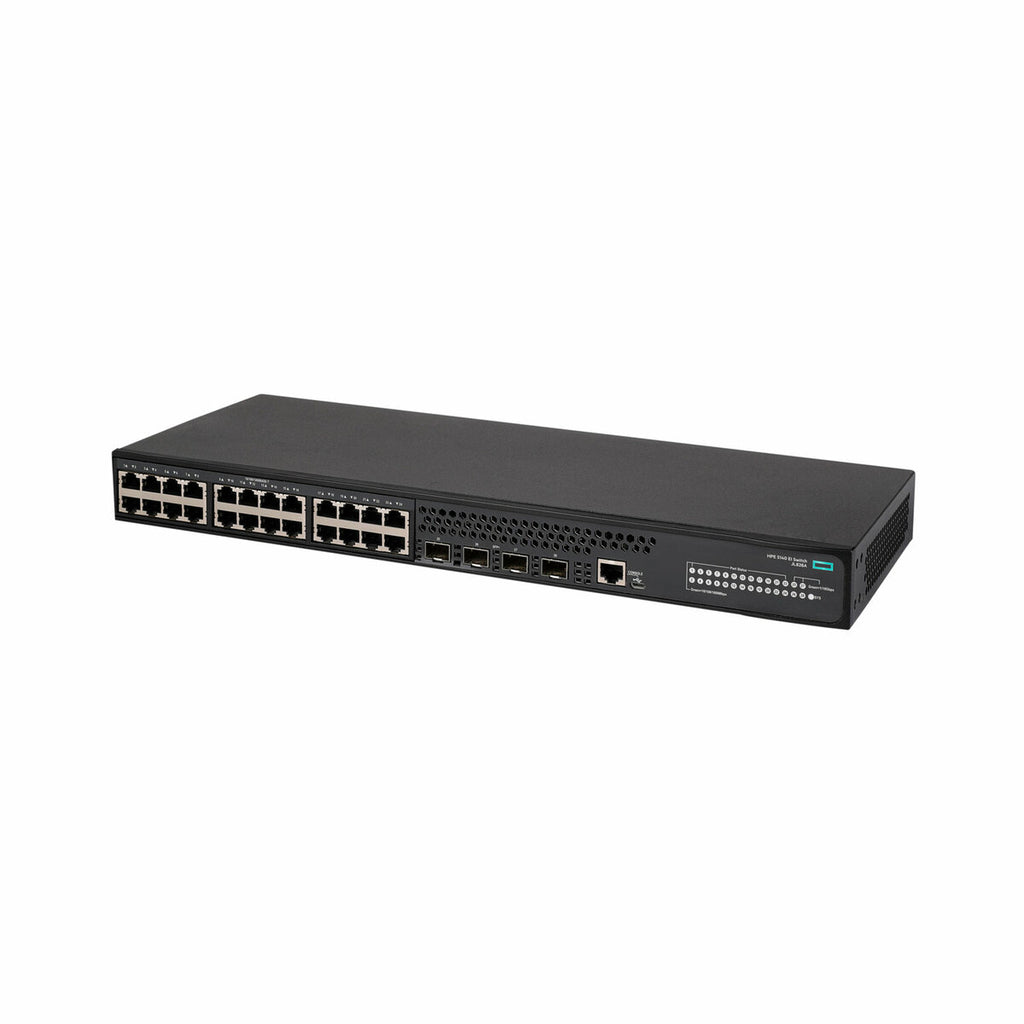

The HPE Networking Comware 5140 EI 24G 4SFP+ Switch delivers high-performance Layer 3 switching with advanced features for scalability, availability, and security—making it an ideal solution for enterprise campus access layers. This model includes 24 autosensing Gigabit Ethernet ports and 4 high-speed 10 Gigabit SFP+ uplink ports, offering flexible connectivity and uplink bandwidth for modern networks.
It supports HPE Intelligent Resilient Fabric (IRF) stacking, Smart Management Center (SmartMC), advanced security features like 802.1X, MAC authentication, ACLs, and comprehensive QoS for optimized traffic flow. With a fanless design, energy-saving features, and robust Layer 3 capabilities including static routing and RIP, this switch delivers reliable performance for converged voice, video, and data deployments.
| Feature | Details |
|---|---|
| Model Number | JL828A#ABA |
| Product Series | HPE Networking Comware 5140 EI |
| Ports | 24 × 10/100/1000Base-T RJ-45, 4 × 1/10GbE SFP+ uplinks |
| Layer Support | Layer 3 (Static Routing, RIP) |
| Stacking | IRF stacking support (up to 9 switches) |
| Switching Capacity | 128 Gbps |
| Throughput | 95 Mpps |
| Latency | < 5 µs @ 1Gbps, < 3 µs @ 10Gbps |
| PoE Support | 370W PoE+ Max (model-dependent) |
| Memory | 512 MB SDRAM, 256 MB Flash |
| MAC Address Table | 16,384 entries |
| Routing Table Size | 1,024 entries |
| Management | Web GUI, CLI, SNMP, SmartMC, Aruba IMC |
| Security Features | 802.1X, MAC Authentication, ACLs, Dynamic ARP Protection, SSHv2, RADIUS |
| QoS | Class-based QoS, traffic shaping, prioritization, WRED, SP+WRR |
| Mounting | Rack-mountable |
| Power Supply | External (ordered separately) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | Approx. 44.0 × 30.0 × 4.4 cm |
| Weight | Approx. 4.2 kg |
