Description

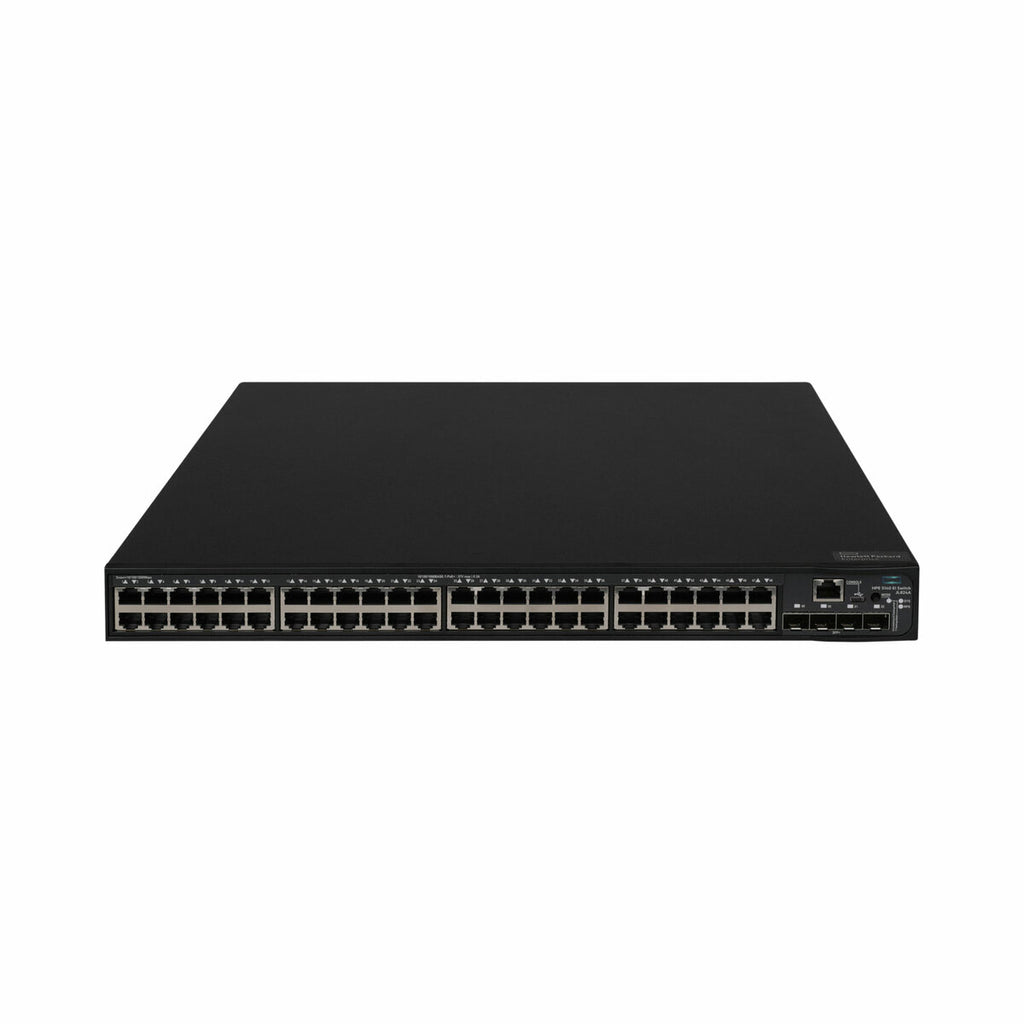

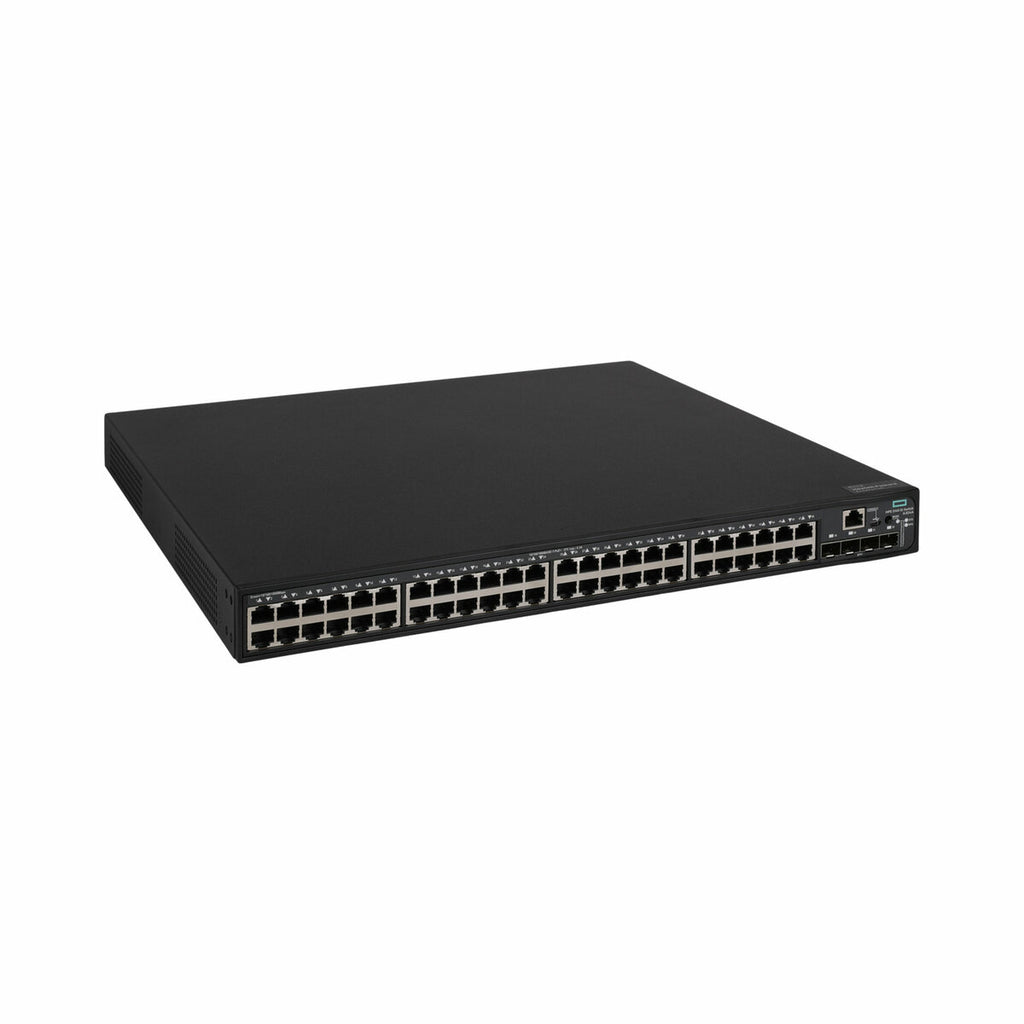

The HPE FlexNetwork 5140 EI 48G PoE+ 4SFP+ Switch (JL824A#ABA) is a high-performance Layer 3 Gigabit Ethernet switch ideal for enterprise campus access networks. Featuring 48 PoE+ ports and 4 SFP+ uplinks, this model supports advanced routing, QoS, and comprehensive security for demanding applications such as voice, video, and wireless access. With Intelligent Resilient Framework (IRF) stacking technology, energy-efficient design, and SmartMC management, this switch delivers simplified operations, high availability, and seamless scalability. Perfect for medium to large enterprise networks seeking a reliable and secure network access layer.
| Specification | Details |
|---|---|
| Model Number | JL824A#ABA |
| Product Series | HPE FlexNetwork 5140 EI Series |
| Port Configuration | 48 × 10/100/1000 RJ-45 autosensing ports 4 × 1000/10000 SFP+ uplink ports |
| Console Port | 1 × RJ-45 serial console port |
| Layer Support | Layer 2 switching, static Layer 3 routing, RIP |
| Stacking Support | IRF support up to 9 switches |
| Switching Capacity | 176 Gbps |
| Throughput | 131 Mpps |
| Latency | <5 µs (1 Gbps), <3 µs (10 Gbps) |
| MAC Address Table | 16,384 entries |
| Routing Table Size | 1024 entries |
| PoE+ Power Budget | 370W internal (expandable to 740W with optional RPS1600) |
| Power Supply | Not included; order separately Supports AC (100–240V) and DC (–54 to –57V) |
| Power Consumption | Idle: 47W Max: 478W (AC) or up to 890W with full PoE+ (DC) |
| Heat Dissipation | Up to 1671 BTU/hr (AC) or 3037 BTU/hr (DC with PoE+) |
| Memory | 512 MB SDRAM, 256 MB Flash |
| Management Options | Web GUI, CLI, SNMP, SmartMC, HPE Aruba IMC |
| Security Features | 802.1X, MAC Auth, RADIUS/HWTACACS, ARP protection, ACLs, DHCP protection |
| QoS Features | SP, WRR, SP+WRR, WRED, CAR |
| Mounting | Rack-mountable (1U) |
| Dimensions (W × D × H) | 17.32 × 15.74 × 1.72 in (440 × 400 × 43.6 mm) |
| Weight | 13.23 lbs (6.0 kg) |
