Description

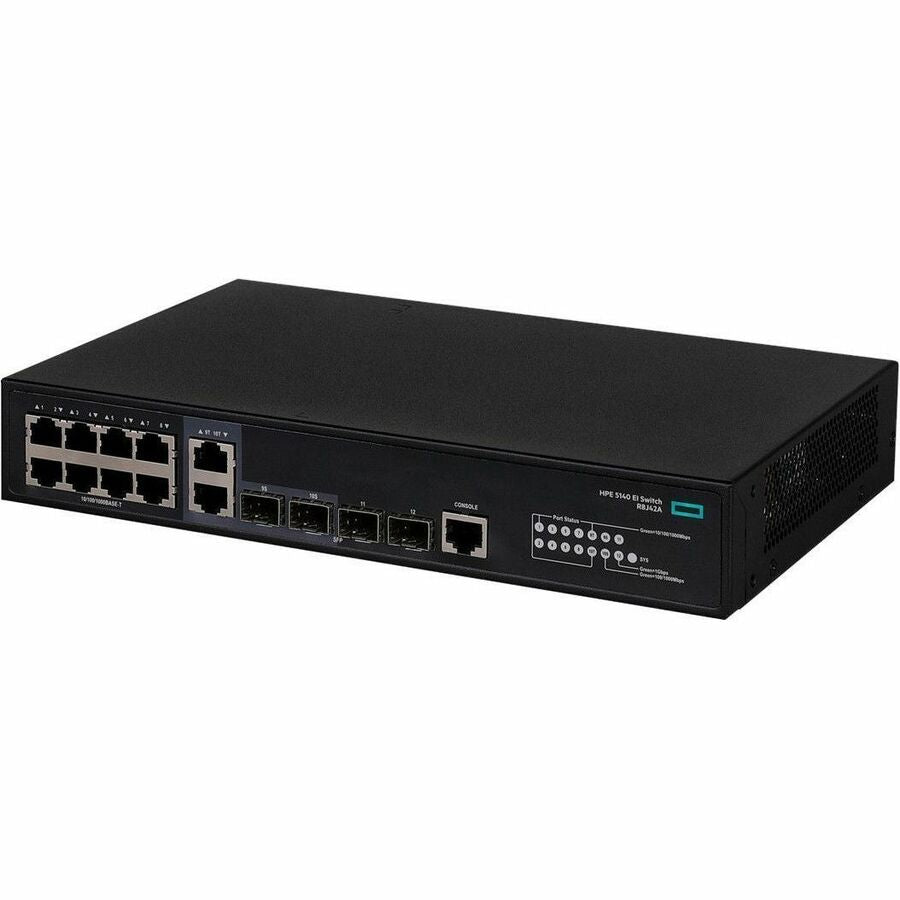

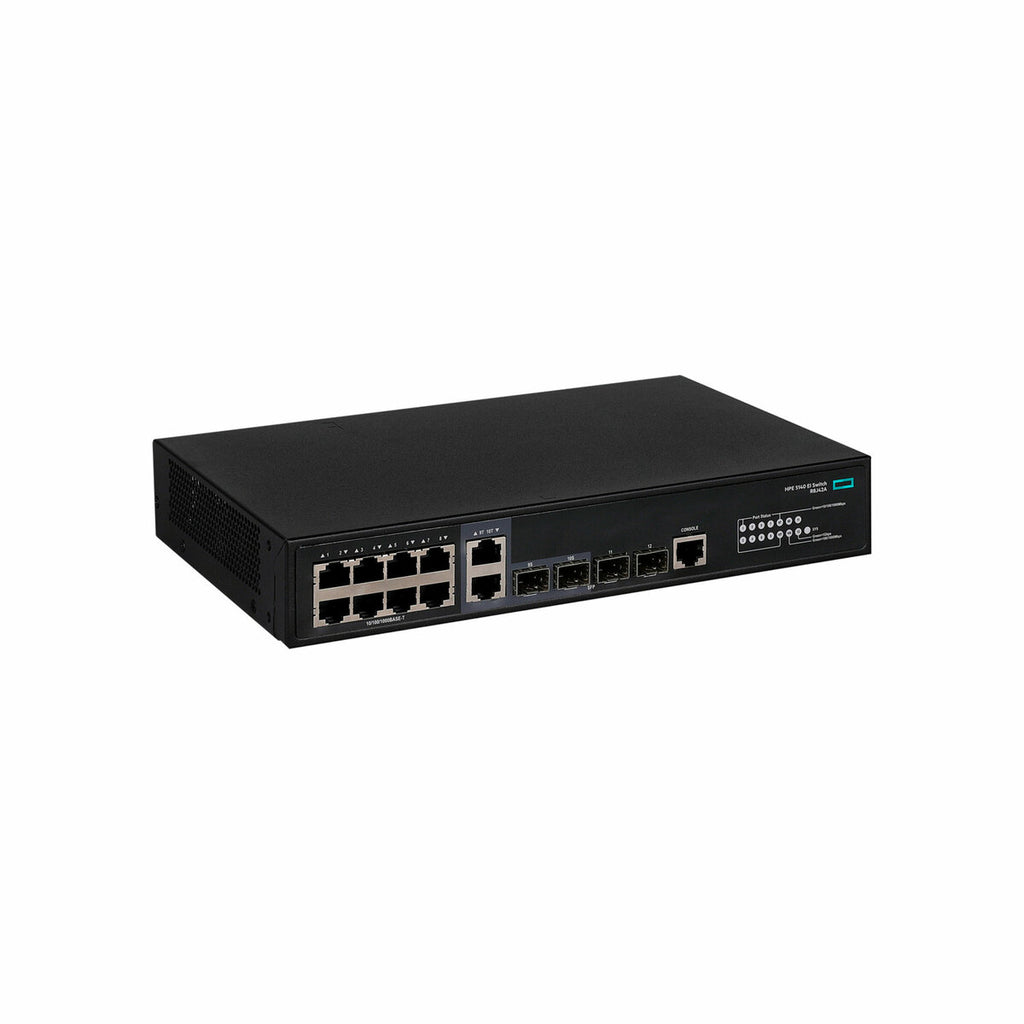

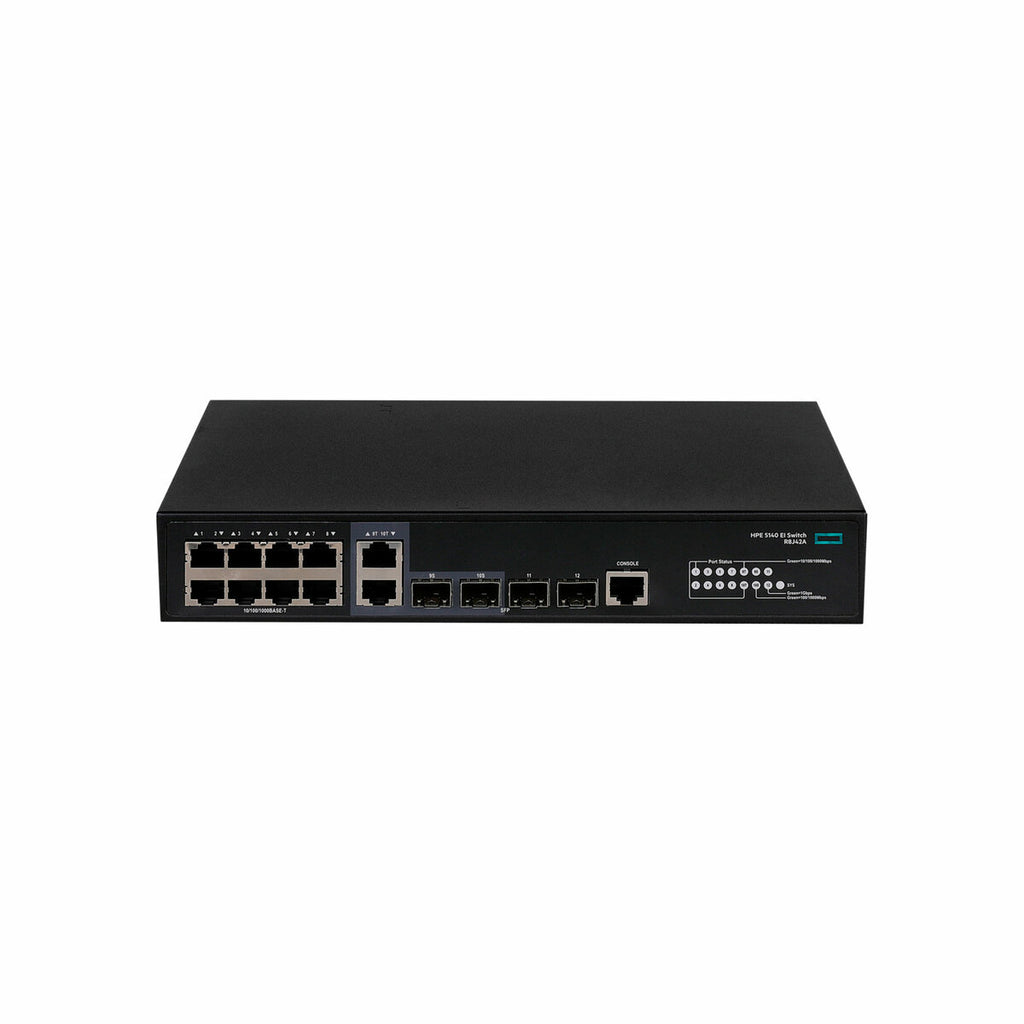

The HPE FlexNetwork 5140 EI Switch (R8J42A#ABA) is an intelligent, rack-mountable Layer 3 switch designed for high-performance access at the edge of enterprise networks. Featuring 8 Gigabit Ethernet ports, 2 Gigabit combo ports, and 2 10-Gigabit uplinks (SFP+ and 10GBase-T), this switch supports intelligent resilient networking with IRF stacking, advanced QoS, and comprehensive Layer 2–4 security controls. Embedded with SmartMC for simplified management, and managed through HPE Aruba Networking IMC, it’s a cost-effective and scalable solution for midsize and large campus deployments.
| Category | Details |
|---|---|
| Product Number | R8J42A#ABA |
| Product Type | Layer 3 Smart Managed Switch |
| Ports | - 8 × 10/100/1000 RJ-45- 2 × 1G SFP or Combo- 2 × 10G SFP+ or 10GBase-T |
| Form Factor | Rack-mountable (1U) |
| Management | - SmartMC- Web GUI- CLI- SNMP- HPE IMC |
| Routing | Static L3 Routing, RIP, IPv6 Ready |
| Switching Capacity | 24 Gbps |
| Throughput | 18 Mpps |
| Latency | < 5 µs (1G), < 3 µs (10G) |
| Memory | 512 MB SDRAM, 256 MB Flash |
| MAC Table Size | 16,384 entries |
| Routing Table Size | 1024 entries |
| IRF Stacking | Up to 9 switches |
| PoE+ Support | Up to 370W (Model Dependent) |
| Power Consumption | Max: 15W, Idle: 8W |
| Input Voltage | 100 – 240 VAC |
| Heat Dissipation | Max: 51.2 BTU/hr |
| Security Features | - 802.1X, MAC Authentication- ARP Protection- ACLs- SSHv2, SSL, SNMPv3 |
| QoS Features | Classifier-based QoS, SP/WRR/WRED Queuing, CAR |
| Dimensions (W × D × H) | 17.32 × 6.3 × 1.72 in |
| Weight | 3.31 lbs |
| Warranty | Limited Lifetime Warranty |
