Description

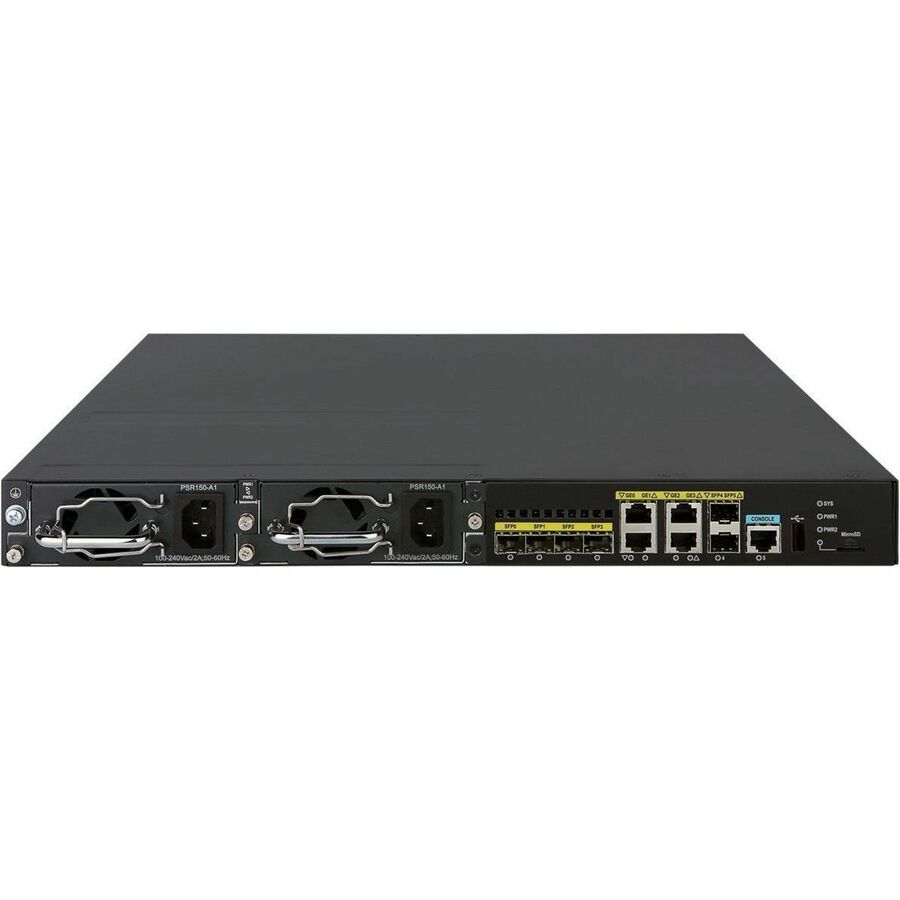

The HPE Networking MSR3620-DP Router (JM044A) is a high-performance, modular router from the HPE MSR3000 Series, designed for medium to large branch offices. Featuring a powerful 8-core processor and Comware v7 OS, it combines advanced routing, switching, security, and voice capabilities in one platform.
With 4 combo WAN ports (RJ-45 or SFP), 2 fixed SFP WAN ports, and expansion slots for HMIM and SIC modules, the MSR3620-DP offers flexible connectivity and scalable performance. Delivering up to 5 Mpps forwarding throughput and supporting up to 500,000 IPv4/IPv6 routes, this router ensures reliable performance for complex enterprise networks.
Built-in IPS, firewall, Dynamic VPN, ADVPN, and support for HPE Open Application Platform modules provide enhanced security and service delivery, while the zero-touch deployment and IMC integration simplify management. This platform is optimized for virtualization, cloud transition, and high-density voice/data environments.
| Specification | Details |
|---|---|
| Product Number | JM044A |
| Processor | 8-core 1.2 GHz |
| Memory | 512 MB flash, 2 GB DDR3 SDRAM |
| Operating System | HPE Comware v7 |
| Ports | 4 combo WAN ports (RJ-45/SFP), 2 fixed SFP WAN ports |
| Expansion Slots | 2 HMIM slots, 4 SIC slots |
| Power Supply | Dual power supply slots |
| Throughput | Up to 5 Mpps |
| Routing Table Size | 500,000 entries (IPv4 & IPv6) |
| Wireless Capability | 3G, 4G LTE (with optional modules) |
| Power Consumption | Max 100 W |
| Heat Dissipation | 218 BTU/hr (229.99 kJ/hr) |
| Input Voltage | 100-120/200-240 VAC |
| Dimensions | 44 x 48 x 4.42 cm (17.32 x 18.9 x 1.74 in) |
| Weight | 9.7 kg (21.38 lb) |
| Features | Built-in IPS, Stateful Firewall, ADVPN, ZTP, HPE IMC integration, MPLS |
| Use Case | Medium to large branch office environments requiring integrated services |
