Description

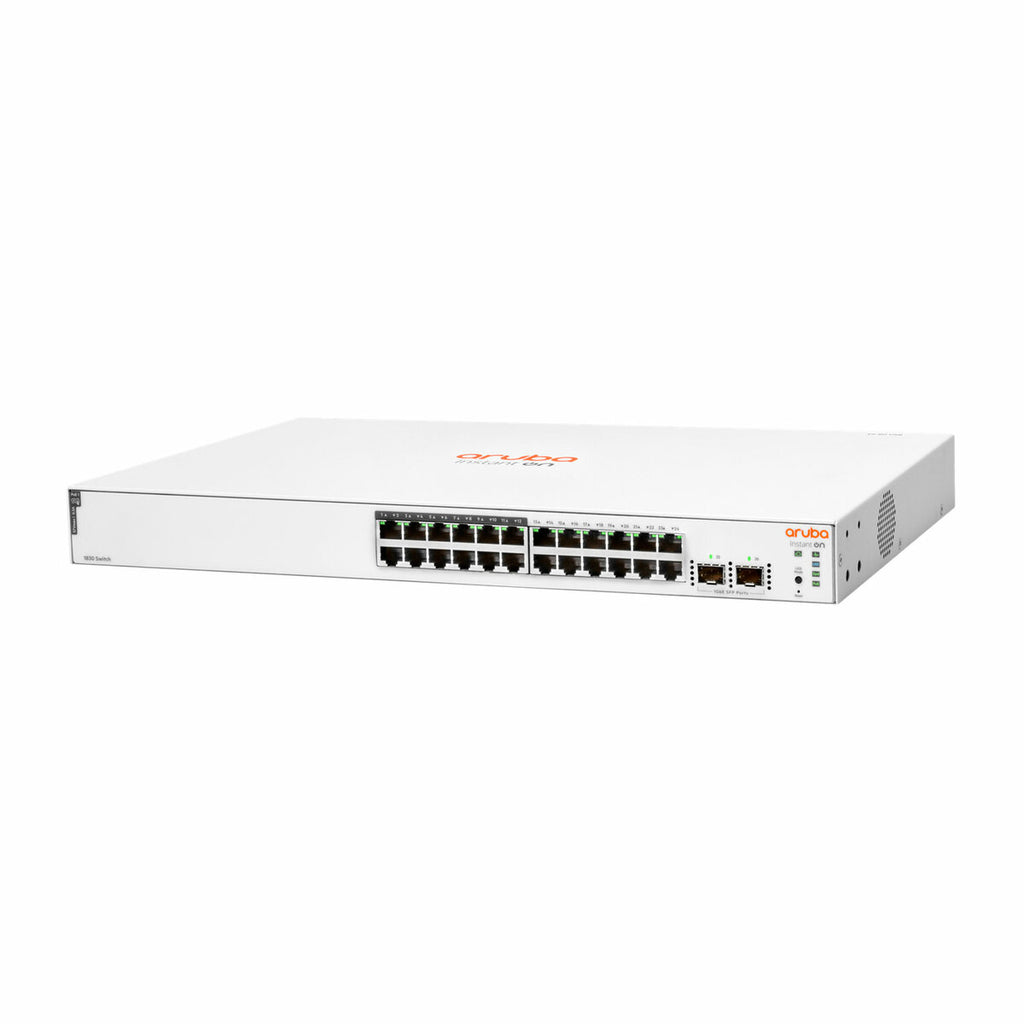

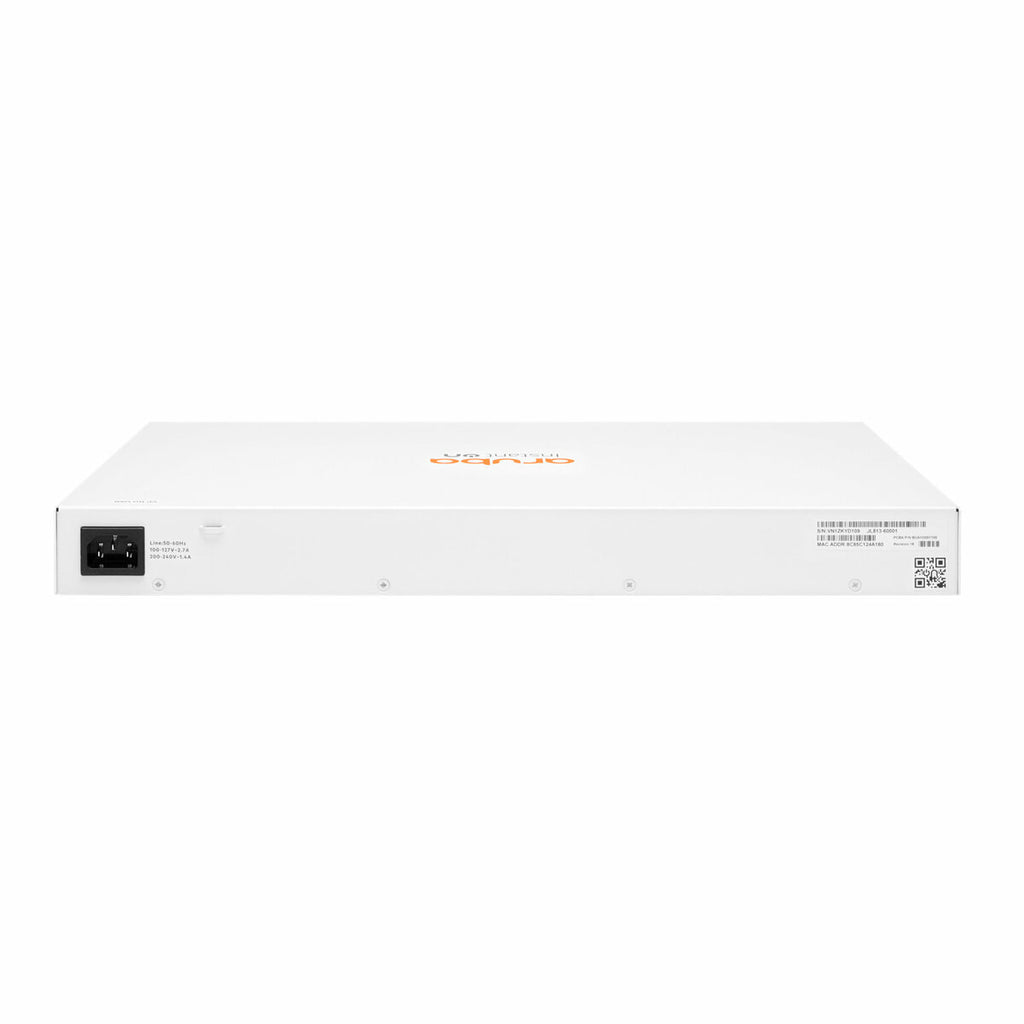

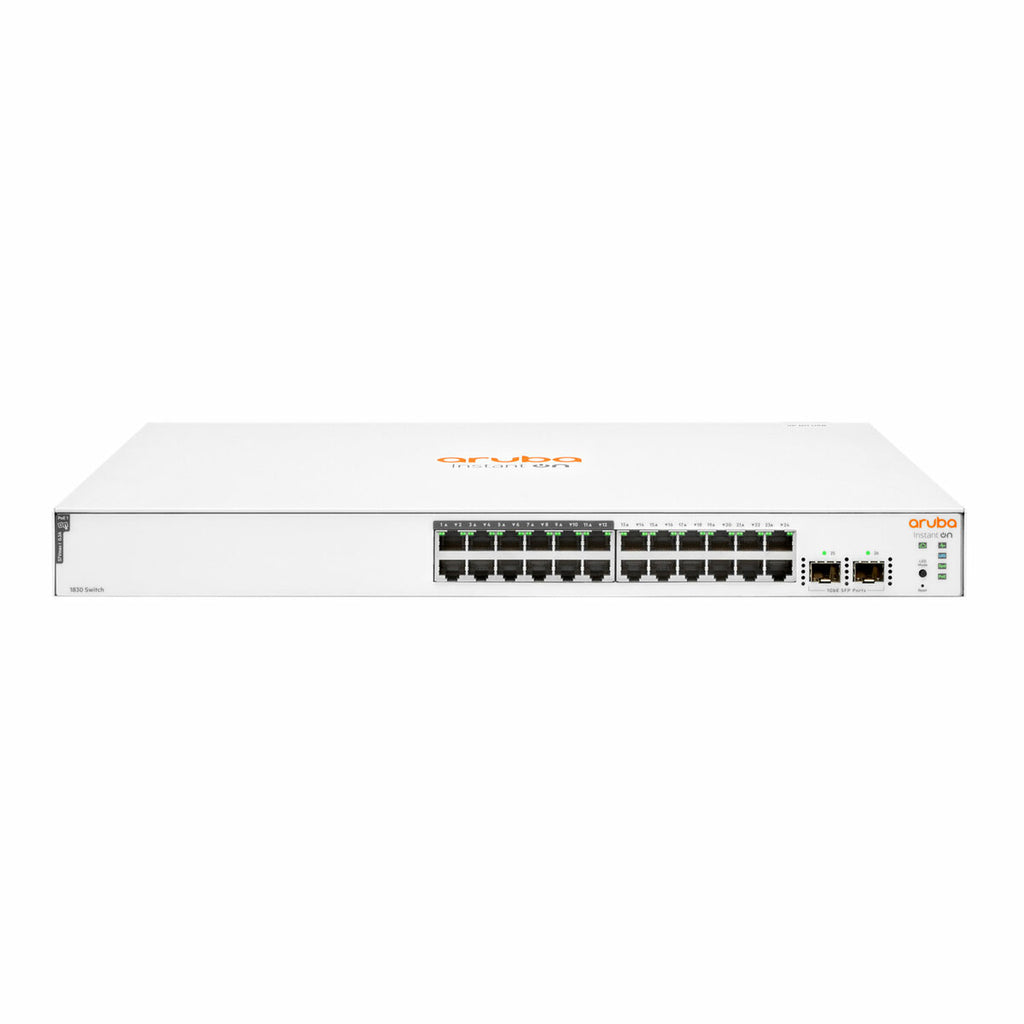

The HPE Networking Instant On 1830 24-Port Class 4 PoE Smart Switch (JL813A#ABA) delivers affordable, smart-managed Layer 2 Ethernet switching tailored for small businesses. With 24 Gigabit ports (12 of which support Class 4 PoE), and 2 dedicated SFP uplink ports, this switch is designed to handle modern IT, mobile, and cloud applications. It includes an intuitive management experience through the Instant On mobile app, web portal, or local GUI. The 195W PoE power budget supports IP phones, access points, and surveillance systems. Energy-efficient features, integrated security capabilities like VLANs and DoS protection, and a compact, rack-mountable design make this switch a future-ready solution for growing networks with limited budgets.
| Specification | Details |
|---|---|
| Product Number | JL813A#ABA |
| Switch Type | Smart-managed Layer 2 Ethernet Switch |
| Ports | 12 x RJ-45 10/100/1000 + 12 x RJ-45 10/100/1000 (PoE+) + 2 x 1G SFP |
| PoE Standard | IEEE 802.3at (Class 4 PoE) |
| PoE Budget | 195W |
| Switching Capacity | 52 Gbps |
| Throughput | 38.68 Mpps |
| Memory | 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer |
| Processor | ARM Cortex-A9 @ 800 MHz |
| Management | Instant On Cloud, Web GUI, SNMP Manager |
| Power Consumption | Max: 244.6W (100-127V), 237.2W (200-220V) / Idle: 14.5W / 13.4W |
| Input Voltage | 100 – 240 VAC |
| Form Factor | Desktop, Rack-mountable |
| Dimensions (WxDxH) | 17.44 x 9.96 x 1.73 in (443 x 253 x 44 mm) |
| Weight | 7.65 lb (3.47 kg) |
| Cooling | Fan-cooled |
| Security | VLAN, DoS protection, TPM-based authentication, Global Storm Control |
| Energy Efficiency | Compliant with 802.3az, PoE scheduling, variable-speed fans |
| Use Case | SMBs, branch offices, retail, and remote sites needing reliable PoE switching |
