Description

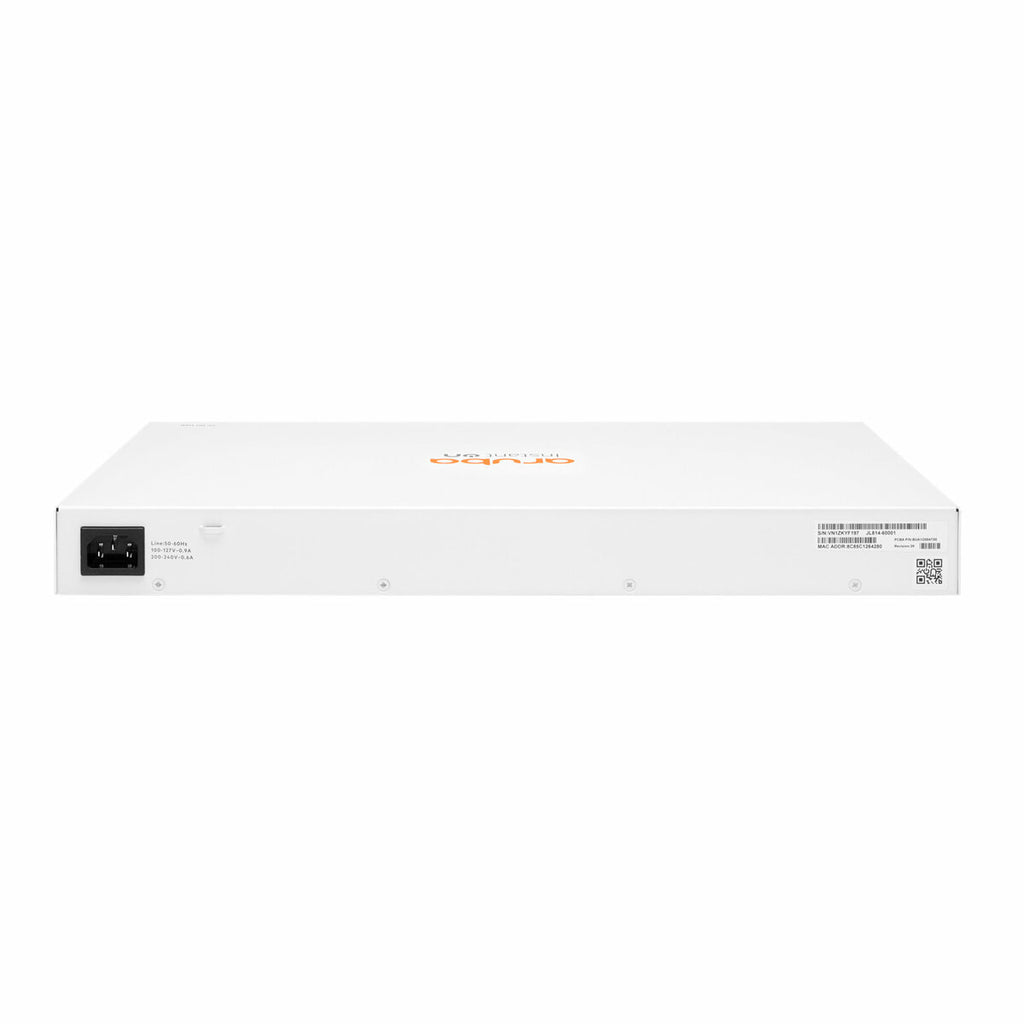

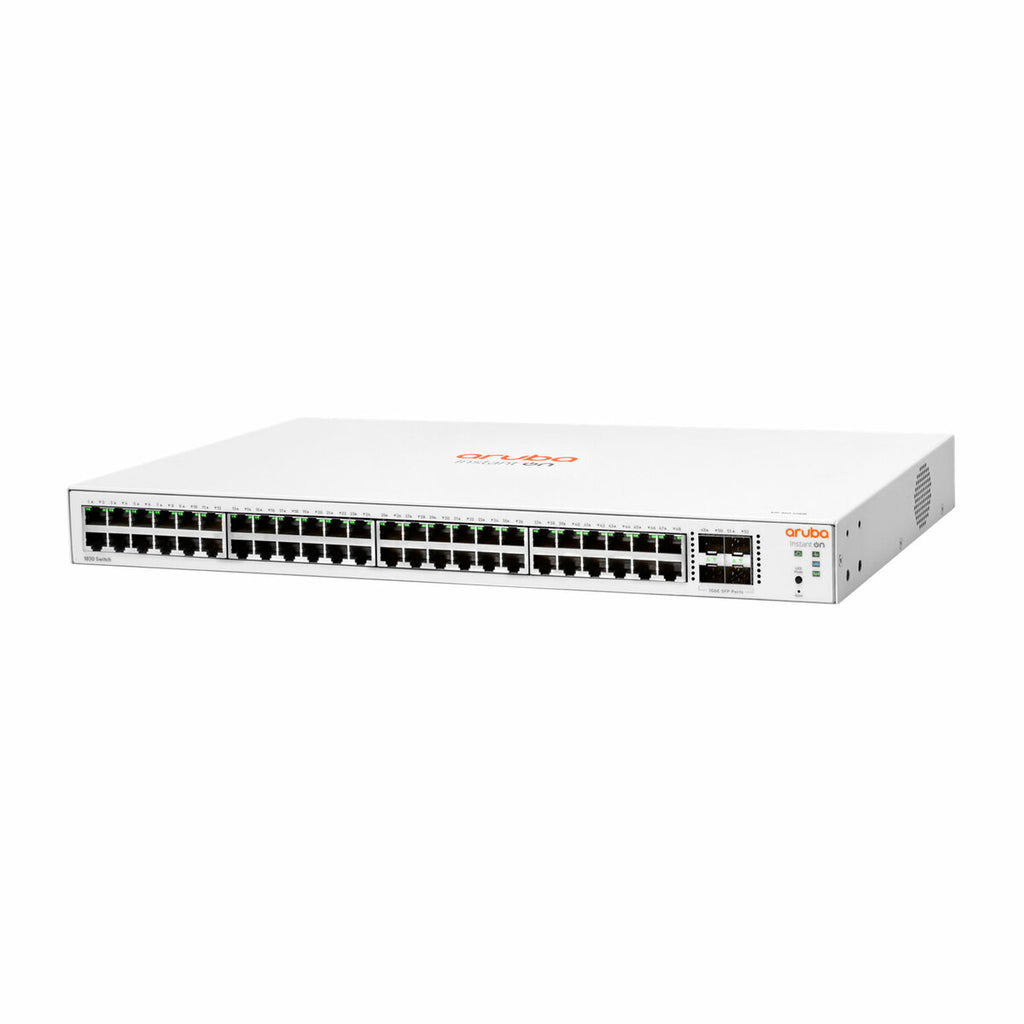

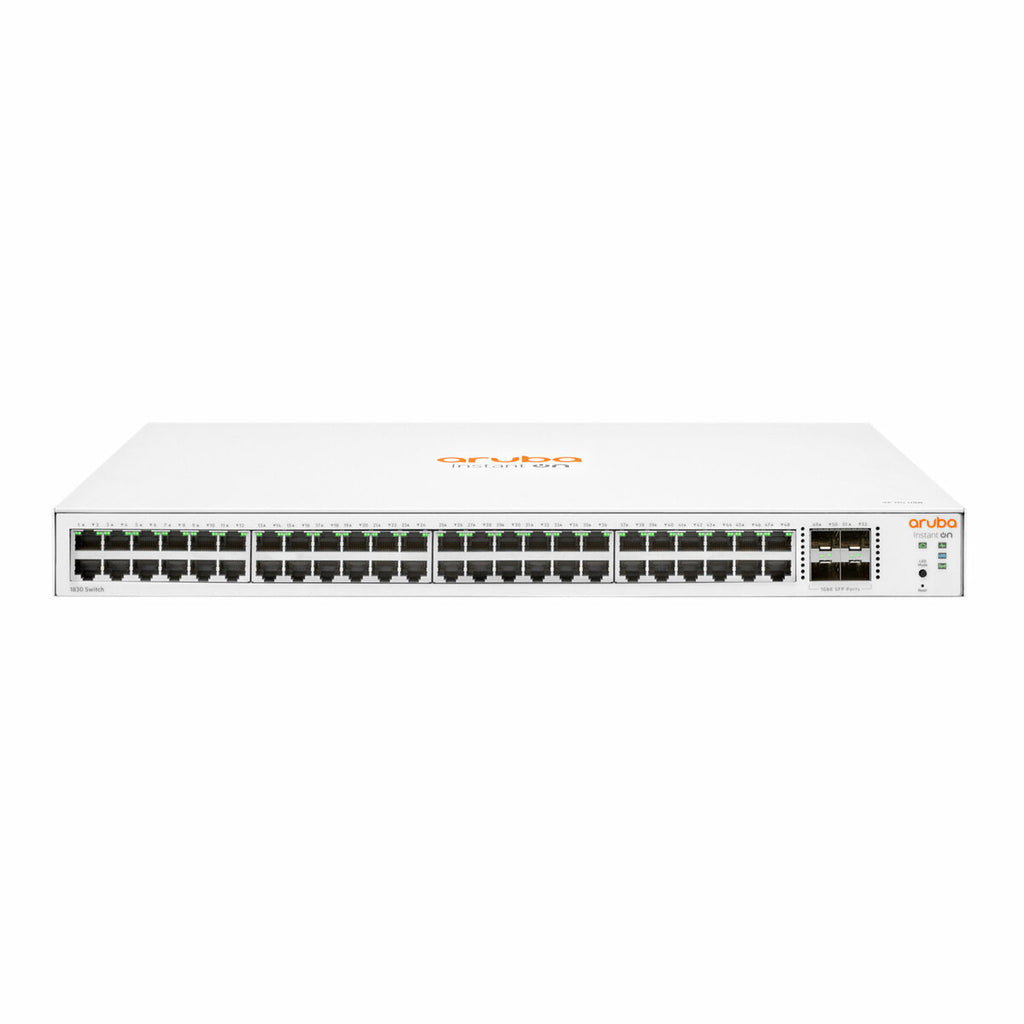

The HPE Networking Instant On 1830 48G 4SFP Switch (JL814A#ABA) is a reliable, smart-managed Layer 2 Ethernet switch designed for growing small businesses. With 48 Gigabit RJ-45 ports and 4 dedicated SFP 1G fiber ports, this rack-mountable switch delivers high-performance connectivity to support cloud, mobile, and IT applications.
Part of the HPE Instant On 1830 series, this model offers cost-effective wired networking, energy-efficient features, and simplified deployment via cloud-based or local management. It’s ideal for small and medium-sized businesses (SMBs) seeking affordable scalability and enhanced security without the complexity of full enterprise systems.
| Specification | Details |
|---|---|
| Model Number | JL814A#ABA |
| Series | HPE Networking Instant On 1830 |
| Switch Type | Smart-managed Layer 2 |
| Ports | 48 x 10/100/1000 Mbps RJ-45 |
| Uplink Ports | 4 x 1G SFP |
| PoE Support | No |
| Switching Capacity | 104 Gbps |
| Throughput | 77.37 Mpps |
| Memory | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Processor | ARM Cortex-A9 @ 800 MHz |
| Packet Buffer | 1.5 MB |
| Management Options | HPE Instant On Cloud, Local Web GUI, SNMP |
| Security Features | VLANs, DoS Protection, Global Storm Control, TPM |
| Input Voltage | 100 – 240 VAC |
| Power Consumption (Max) | 40.2W (100-127V) / 40W (200-220V) |
| Power Consumption (Idle) | 17.7W |
| Dimensions (WxDxH) | 17.44 x 9.96 x 1.73 in |
| Weight | 7.80 lb |
| Mounting Type | Desktop, Rack-mountable |
