Description

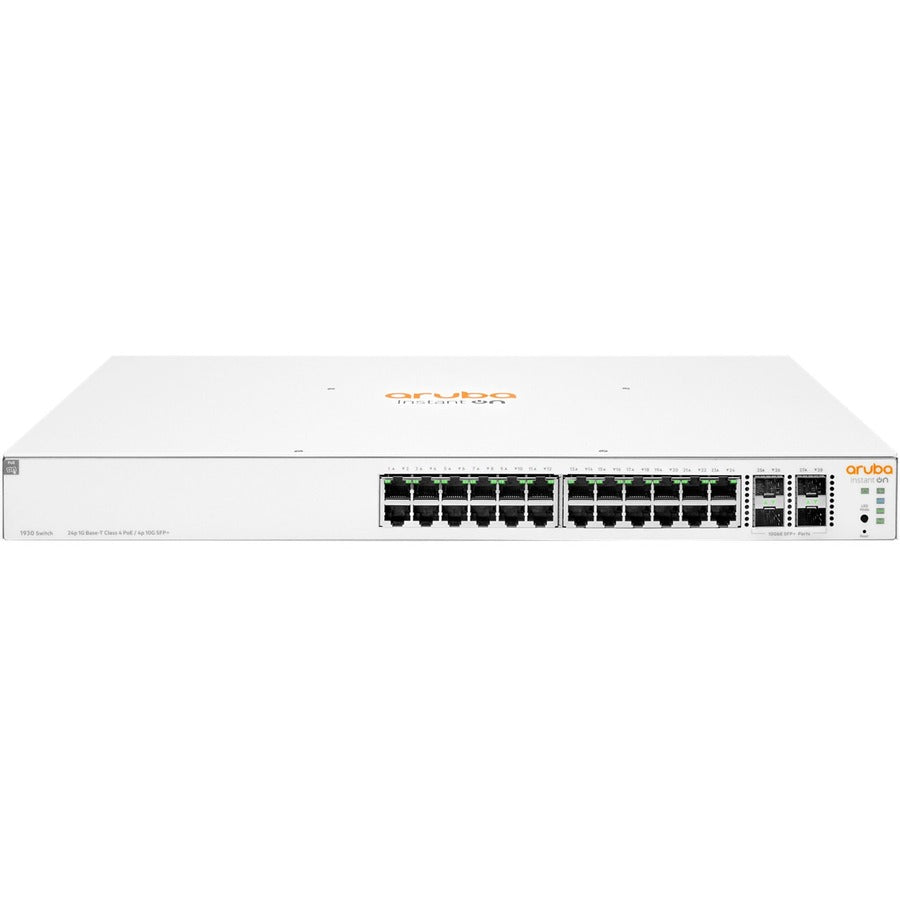

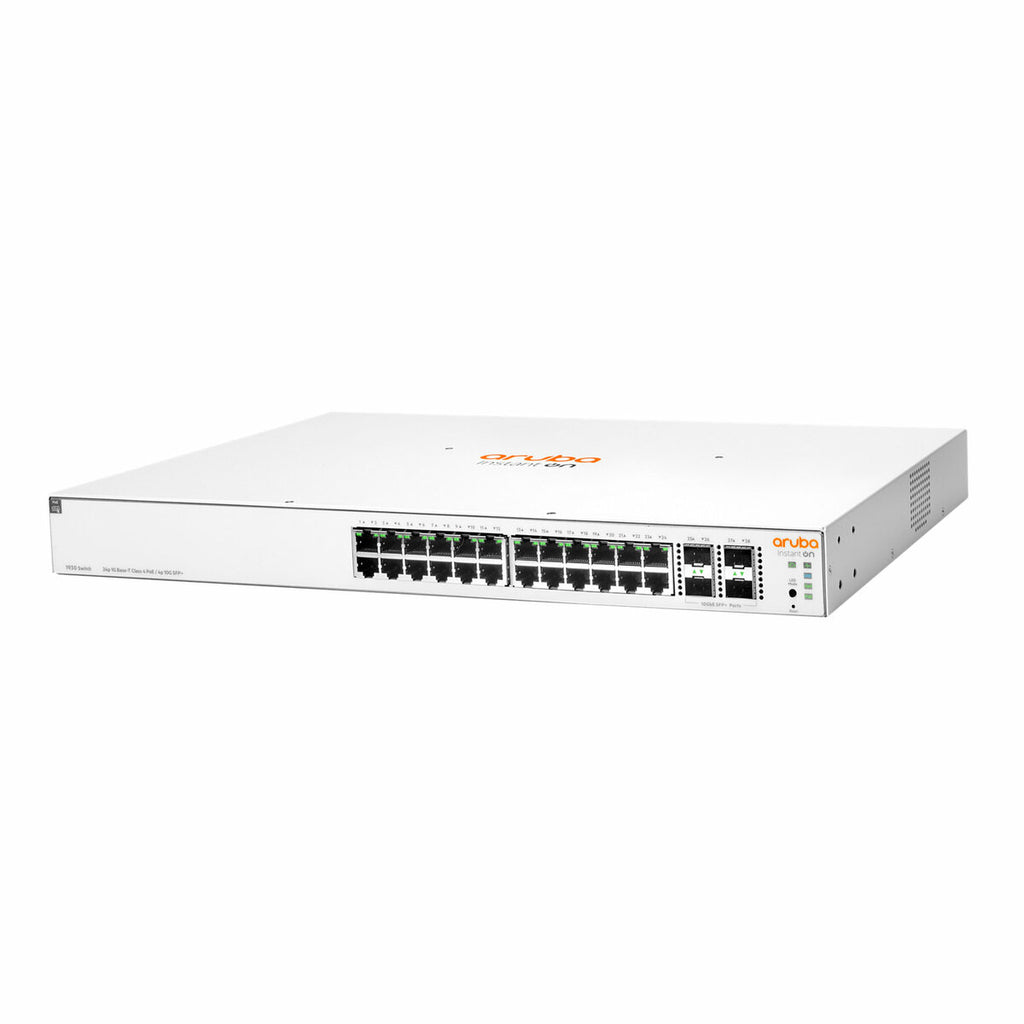

The HPE Networking Instant On 1930 24G Class 4 PoE Switch delivers powerful, smart-managed Layer 2+ switching for small and growing businesses. Featuring 24 Gigabit Ethernet ports with Class 4 PoE (195W budget) and 4 SFP+ ports for 1G/10G fiber uplinks, it supports bandwidth-intensive applications like IP surveillance, wireless access points, and VoIP deployments.
Seamlessly integrate with existing HPE Instant On ecosystems and manage the network through the Instant On mobile app, cloud portal, or local web GUI. Security and advanced features like VLANs, STP, DoS protection, and 802.1X access control ensure reliable, high-performance operation.
| Specification | Details |
|---|---|
| Model Number | JL683B#ABA |
| Product Series | HPE Networking Instant On 1930 Series |
| Switch Type | Smart Managed Layer 2+ Ethernet Switch |
| Ports | 24 x RJ-45 10/100/1000 (PoE+) + 4 x SFP+ (1G/10G) |
| PoE Power Budget | 195W (Class 4 PoE, IEEE 802.3at) |
| Switching Capacity | 128 Gbps |
| Throughput | 95.23 Mpps |
| Processor | ARM Cortex-A9 @ 800 MHz |
| Memory | 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer |
| Management Options | Instant On cloud (app/web), local web GUI, SNMP |
| Security Features | IEEE 802.1X, VLANs, DoS protection, password-protected access control |
| Input Voltage | 100–127 / 200–240 VAC |
| Power Consumption | 280W max / 30W idle |
| Dimensions (W x D x H) | 17.42 x 10.42 x 1.73 in (rack-mountable) |
| Weight | 7.69 lb (approx. 3.49 kg) |
