Description
Powerful, Smart-Managed PoE+ Switch for Growing Networks

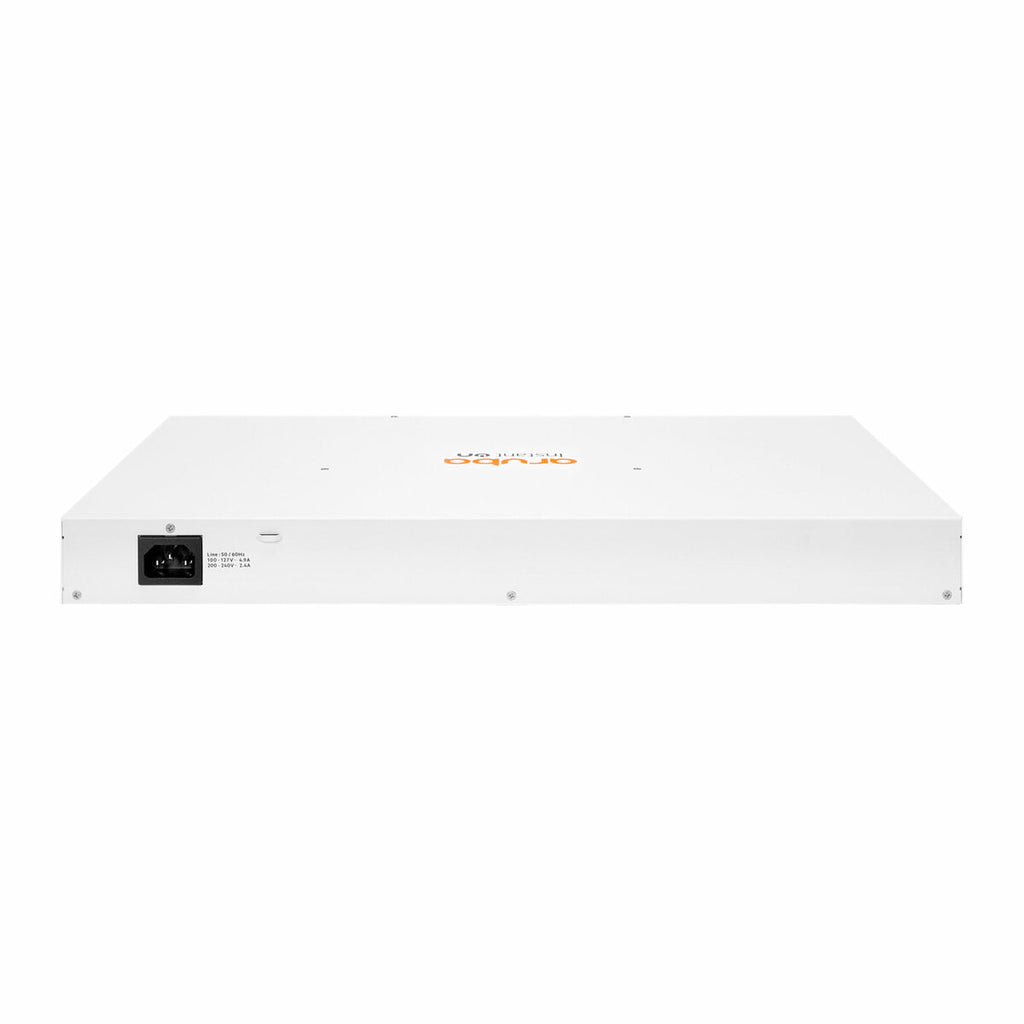

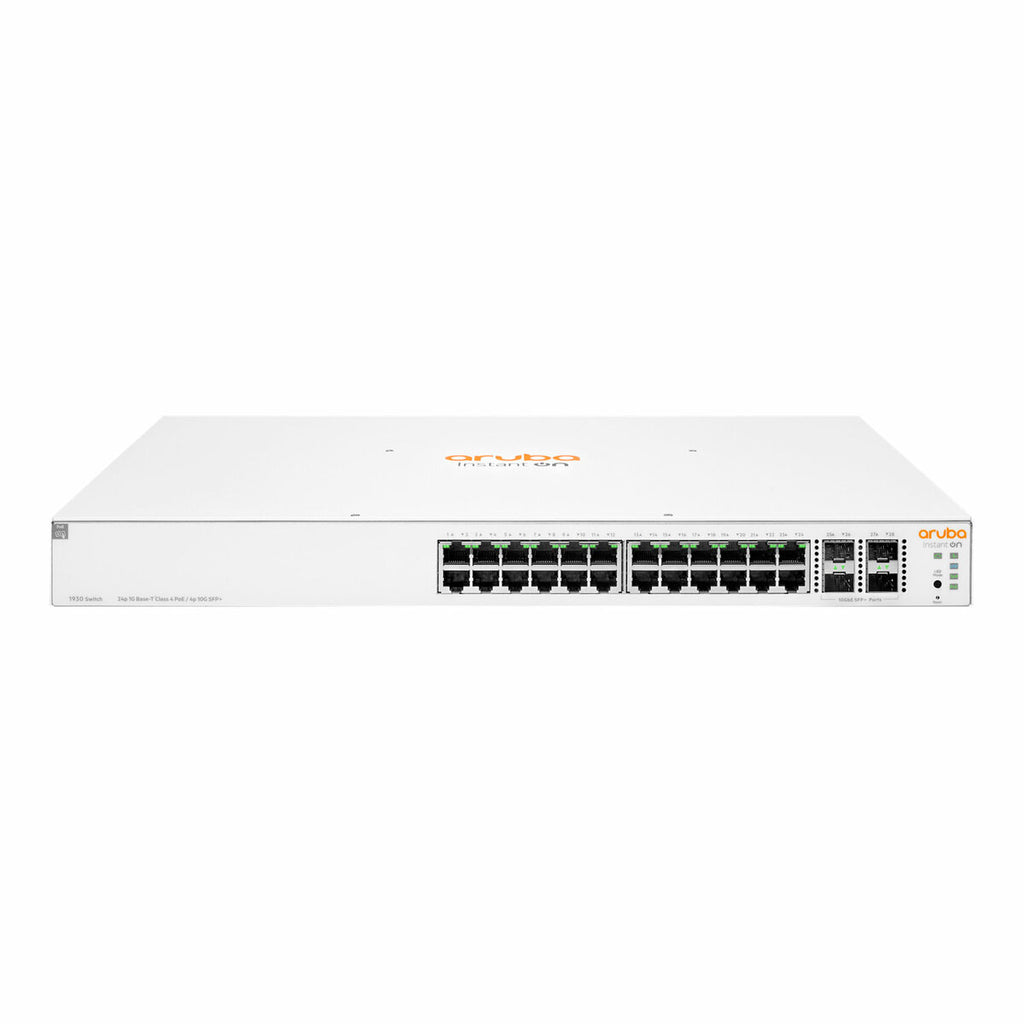

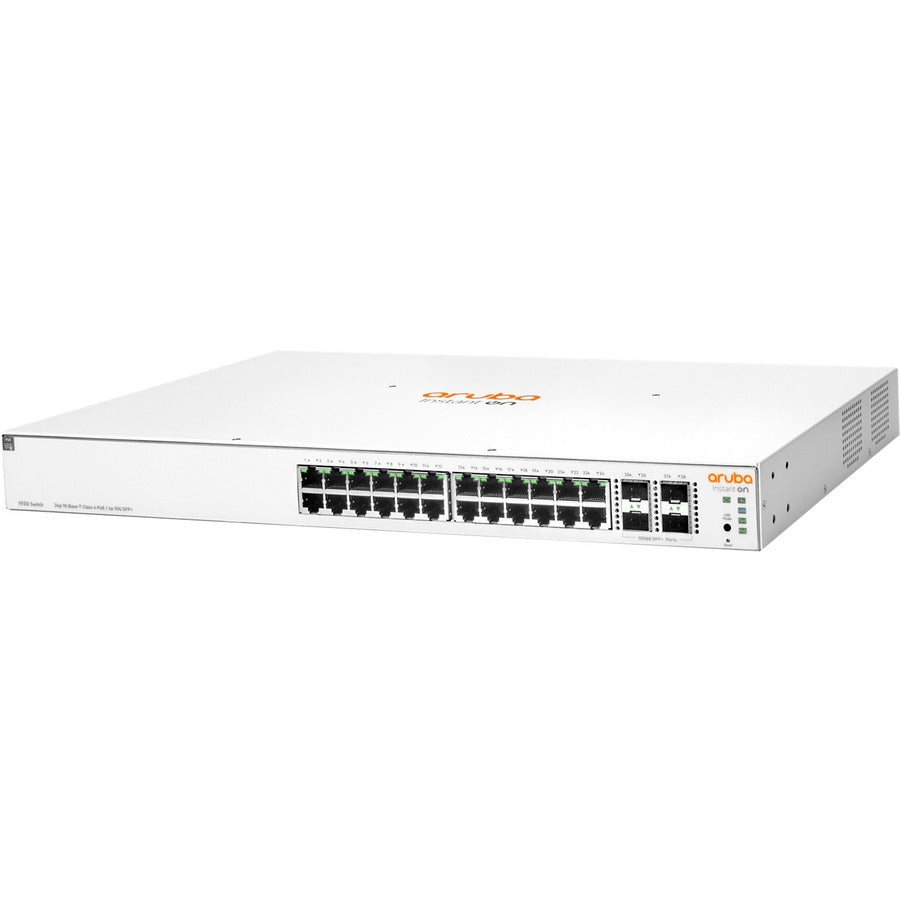

The HPE Networking Instant On 1930 24G Class4 PoE Switch is designed to empower small and medium businesses with enterprise-grade performance, intuitive management, and robust security. Featuring 24 Gigabit Ethernet ports with 370W Class 4 PoE+ and 4 SFP+ slots supporting 1G/10G fiber uplinks, this rack-mountable Layer 2+ switch delivers the speed and power you need for high-bandwidth applications like video surveillance, VoIP, and wireless access points.
Enjoy flexible deployment and seamless integration with other Instant On access points. Manage your network easily through the Instant On mobile app or cloud portal, or locally via web GUI. This switch also includes advanced features like VLANs, IEEE 802.1X, link aggregation, and DoS protection to secure and optimize your business network with ease.
| Specification | Details |
|---|---|
| Product Number | JL684B#ABA |
| Switch Type | Managed Layer 2+ Smart Managed Switch |
| Ports | 24 x 10/100/1000 (PoE+) RJ-45, 4 x 1G/10G SFP+ |
| PoE Power Budget | 370W Class 4 PoE |
| Switching Capacity | 128 Gbps |
| Throughput | 95.23 Mpps |
| Memory & Processor | ARM Cortex-A9 @ 800 MHz, 512MB SDRAM, 256MB flash, 1.5MB packet buffer |
| Management | Instant On Cloud Portal, Mobile App, Local Web GUI, SNMP |
| Security Features | IEEE 802.1X, VLANs, DoS Protection, Access Control |
| Input Voltage | 100 – 127 VAC / 200 – 240 VAC |
| Max Power Consumption | 490W (max), 30W (idle) |
| Form Factor | Rack-mountable, 1U |
| Dimensions (W x D x H) | 17.42 x 10.42 x 1.73 in (442.5 x 264.5 x 44 mm) |
| Weight | 8.23 lb (3.73 kg) |
| Warranty | Limited Lifetime Warranty with 24x7 phone support for 90 days |
