Description

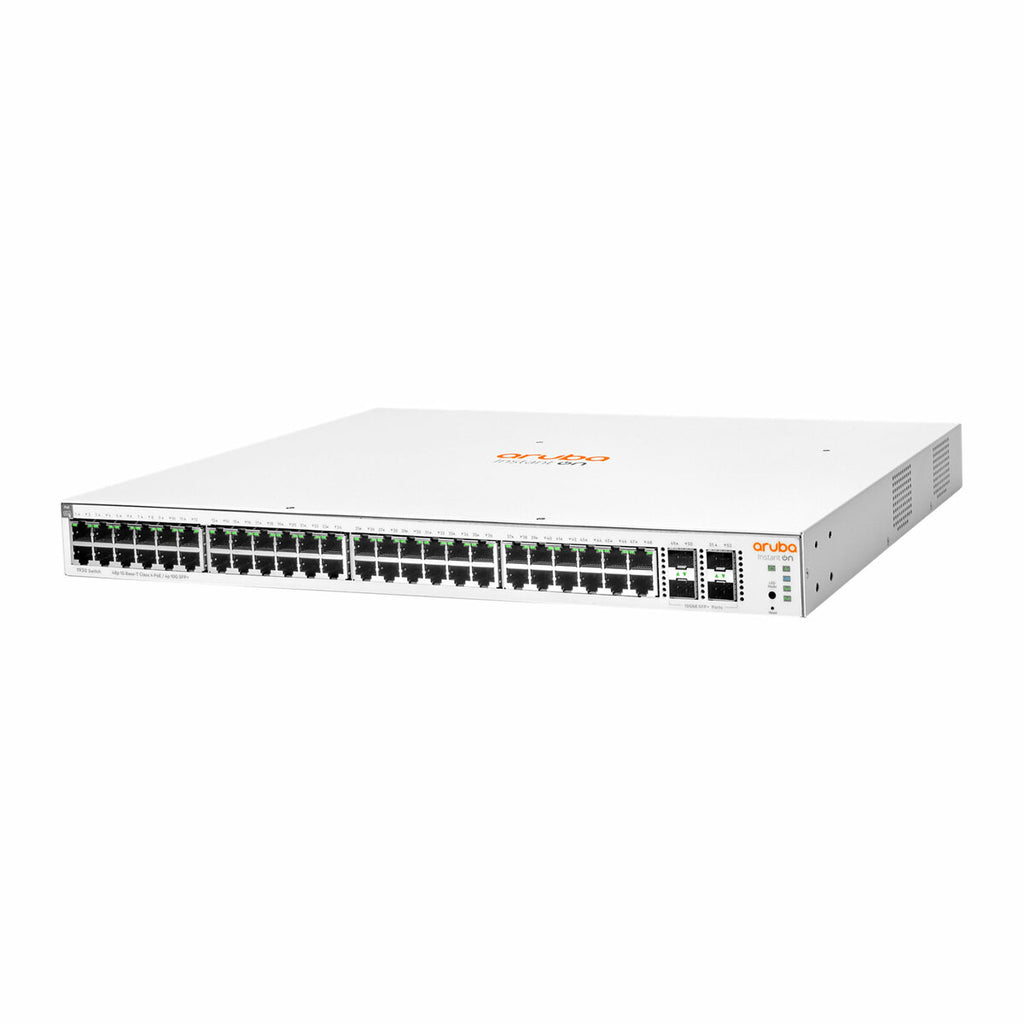

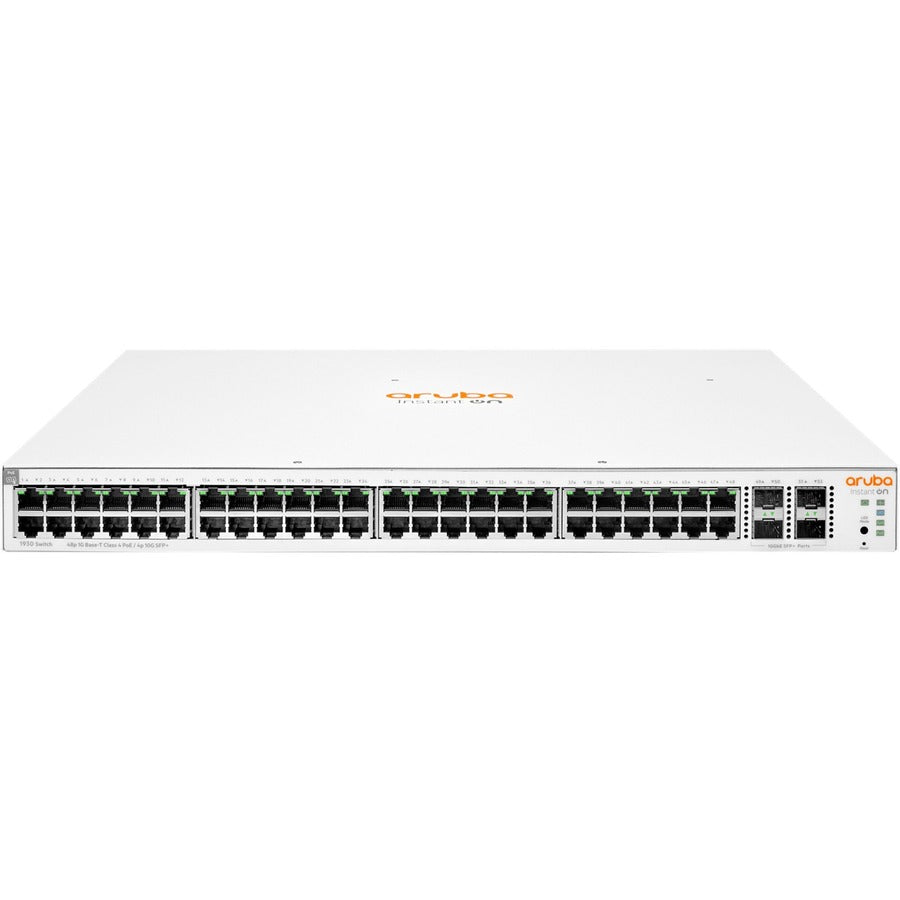

The HPE Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B#ABA) is a smart-managed Layer 2+ Gigabit Ethernet switch engineered for small and growing businesses needing performance, security, and simplicity. With 48 PoE+ RJ-45 ports and 4 SFP+ uplinks supporting 1G/10G speeds, this 52-port switch provides robust bandwidth for high-demand applications, while seamlessly integrating with Instant On indoor and outdoor access points.
Designed for flexibility, the 1930 series offers easy deployment, centralized cloud or local management, and advanced security features like 802.1X access control, DoS protection, and VLAN segmentation. The 370W PoE budget supports a wide range of devices such as IP cameras, access points, and VoIP phones, eliminating the need for extra power cabling.
Whether managed through the Instant On mobile app, cloud-based portal, or local web GUI, this switch simplifies your network operations while enhancing security and performance.
| Specification | Details |
|---|---|
| Model | JL686B#ABA |
| Switch Type | Smart-managed, Layer 2+ |
| Total Ports | 52 ports (48 x RJ-45 + 4 x SFP+) |
| Port Configuration | 48 x 10/100/1000 Mbps (Class 4 PoE+)4 x SFP+ 1/10 GbE |
| PoE Budget | 370W (IEEE 802.3at PoE+) |
| Switching Capacity | 176 Gbps |
| Throughput | 130.95 Mpps |
| Memory & Processor | ARM Cortex-A9 @ 800 MHz512 MB SDRAM256 MB Flash1.5 MB Packet Buffer |
| Management Interfaces | Instant On Cloud Portal, Web GUI, SNMP |
| Security Features | 802.1X access control, VLANs, DoS protection, management access restrictions |
| Power Input | 100–127 / 200–240 VAC |
| Power Consumption | Max: 520WIdle: 50W |
| Mounting Options | Rack-mountable |
| Dimensions (W x D x H) | 17.42 x 12.7 x 1.73 in |
| Weight | 10.12 lb |
