Description

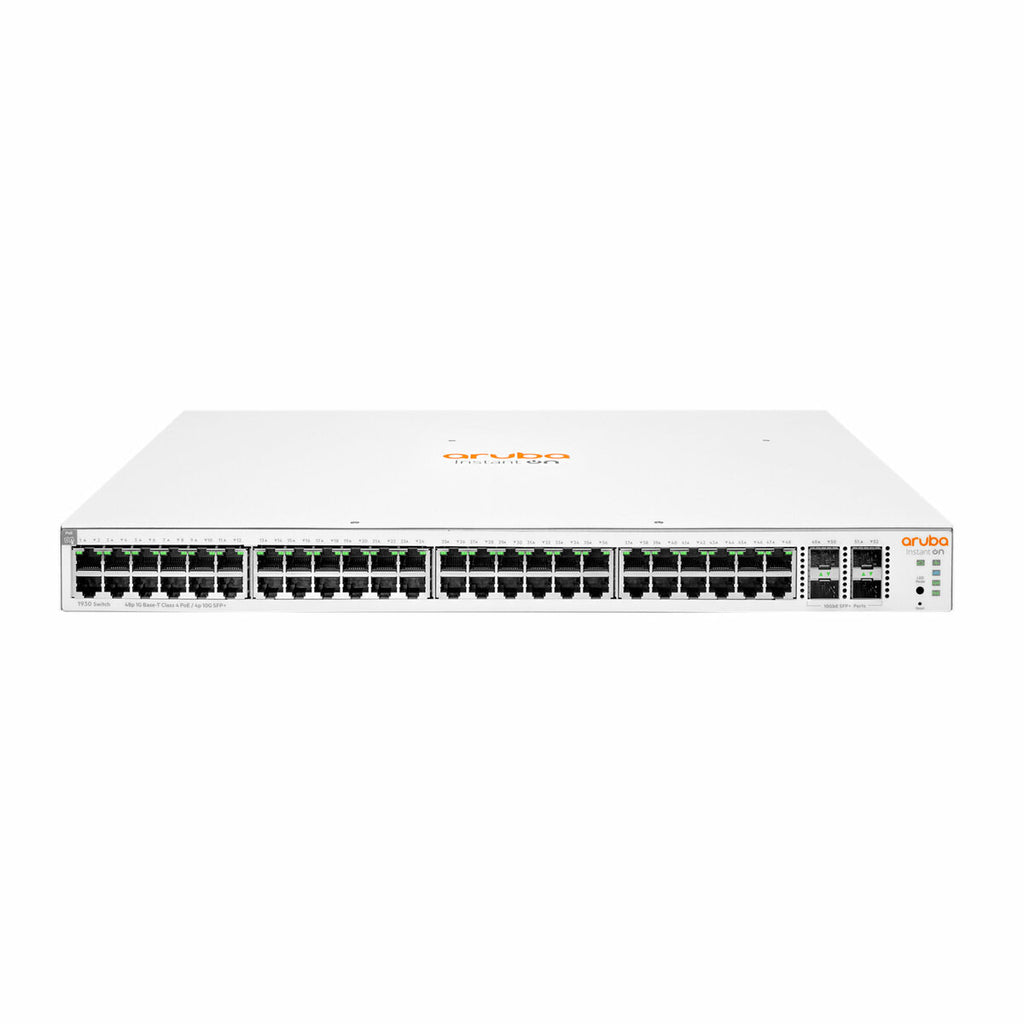

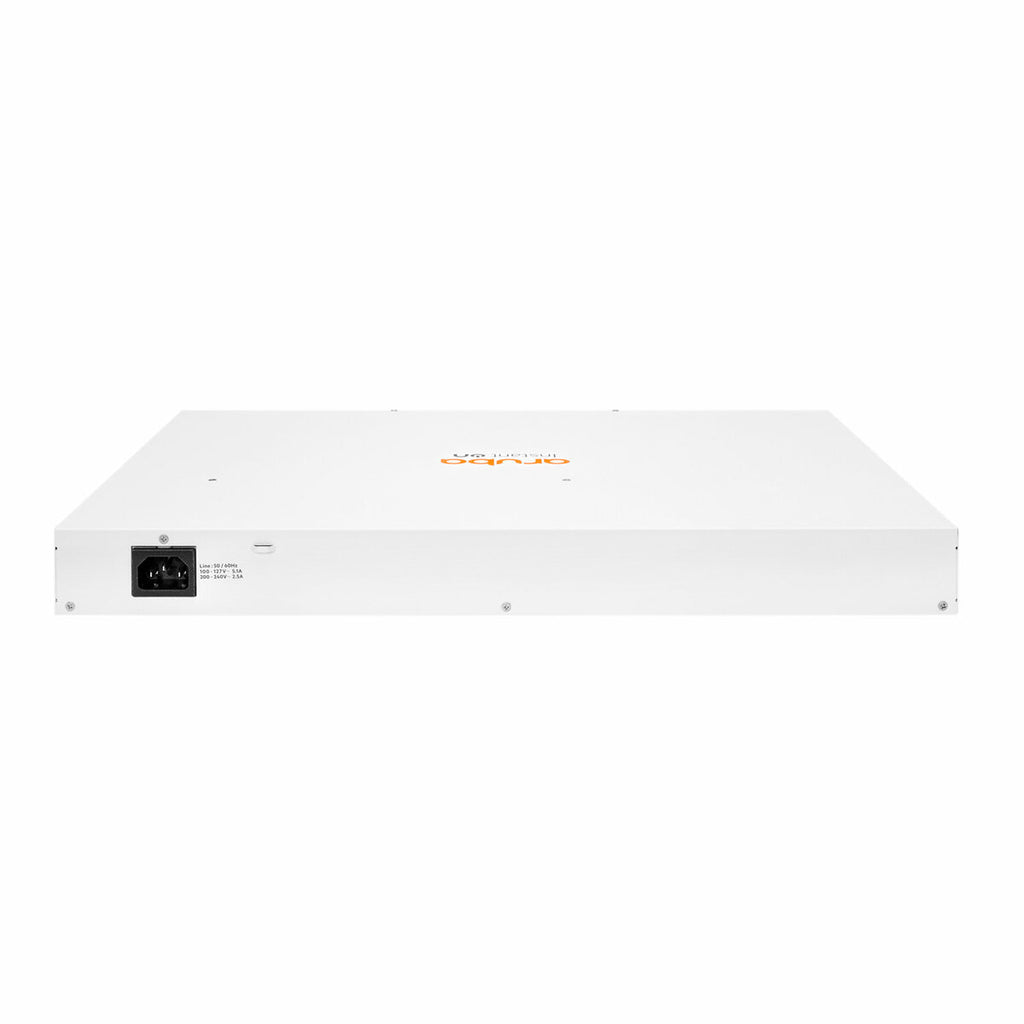

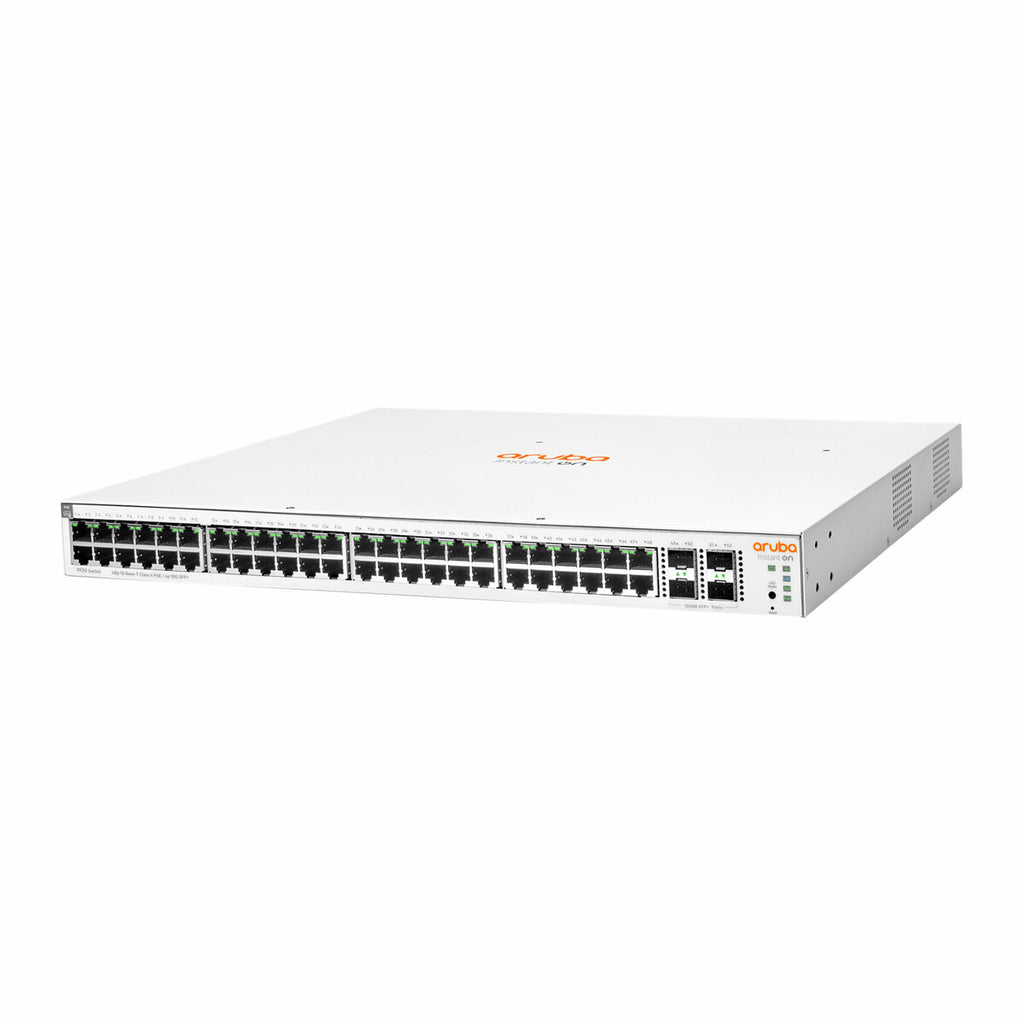

The HPE Aruba Networking Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370W Switch (JL686A#ABA) delivers enterprise-grade performance with Layer 3 features and easy cloud-based or local management. Designed for small to medium-sized businesses, this 48-port smart-managed switch supports high-bandwidth applications, security-focused configurations, and 370W Class 4 PoE to power devices like IP phones, access points, and cameras. With 4 SFP/SFP+ uplinks supporting 1G/10G speeds, it ensures flexible and scalable fiber connectivity. Integrated security, simplified deployment, and centralized control via the Instant On mobile app make it an ideal solution for modern network infrastructures.
| Feature | Details |
|---|---|
| Product Number | JL686A#ABA |
| Series | HPE Aruba Networking Instant On 1930 Series |
| Ports | 48 x 10/100/1000 RJ-45 (PoE+) + 4 x SFP/SFP+ (1G/10G) |
| Layer Support | Layer 3 smart-managed |
| PoE Power Budget | 370W (Class 4 PoE / PoE+) |
| Switching Capacity | 176 Gbps |
| Throughput | 130.95 Mpps |
| Memory & Processor | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer |
| Management | Cloud-based (Instant On App/Web) or local web GUI |
| Security Features | IEEE 802.1X, VLANs, DoS protection, role-based access control |
| Mounting | Rack-mountable |
| Power Input | 100–127 / 200–240 VAC |
| Power Consumption | Max: 460W, Idle: 34.5W |
| Dimensions | 1.73 x 17.42 x 12.7 in (4.4 x 44.2 x 32.2 cm) |
| Weight | 9.97 lb (4.52 kg) |
