Description

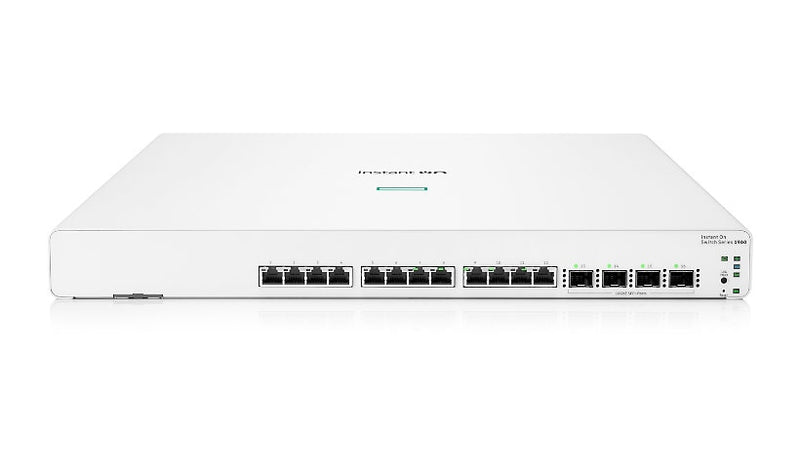

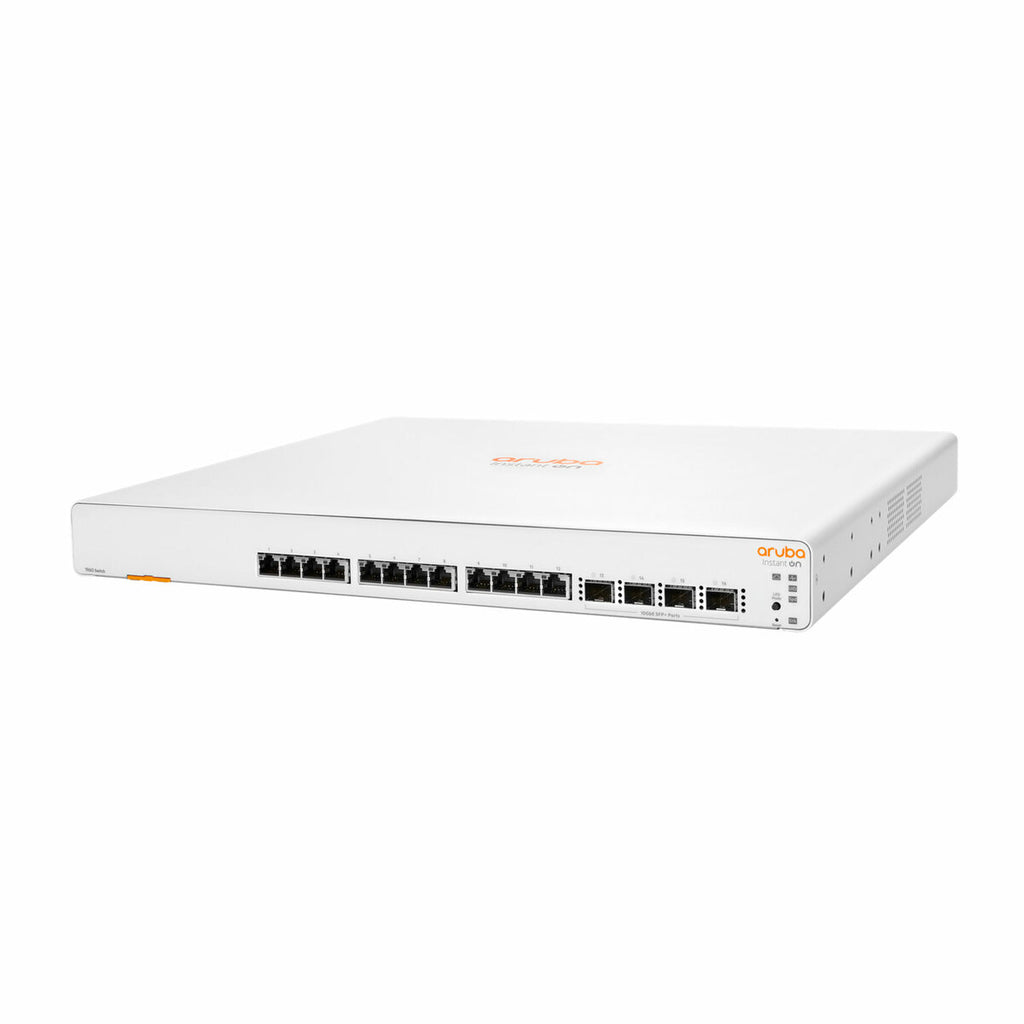

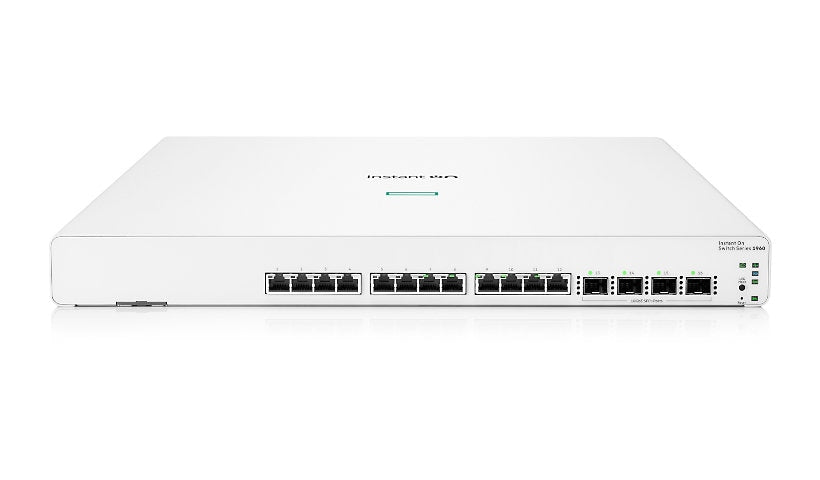

The HPE Networking Instant On 1960 12XGT 4SFP+ Switch is a high-performance, smart-managed Layer 2+ aggregation switch designed to meet the networking needs of growing small businesses. With 12 multi-gigabit 10GBASE-T ports and 4 10GbE SFP+ uplinks, this rackmount switch delivers lightning-fast performance ideal for voice, video, and bandwidth-heavy applications.
Easily stack up to four switches for simplified management under a single IP address. Whether using the Instant On mobile app, cloud-based web portal, or local web GUI, deployment and control are flexible and intuitive.
Equipped with robust features like VLANs, ACLs, 802.1X, and DoS protection, the Instant On 1960 ensures enterprise-grade security. Built to grow with your business, this solution is perfect for cost-effective scalability in high-demand environments.
| Category | Details |
|---|---|
| Product Number | JL805A#ABA |
| Switch Type | Smart-managed Layer 2+ |
| Ports | 12 x 100/1000/10000BASE-T (RJ-45)4 x 10GbE SFP+ |
| Stacking | Up to 4 switches, managed under a single IP |
| Switching Capacity | 320 Gbps |
| Throughput | 238 Mpps |
| Memory & Processor | ARM v7 Cortex-A9 @800 MHz1 GB DDR3 RAM512 MB NAND flash |
| Packet Buffer Size | 1.5 MB |
| Management Options | Instant On Cloud, Web GUI, SNMP |
| Security Features | 802.1X with RADIUS, VLANs, ACLs, DoS protection |

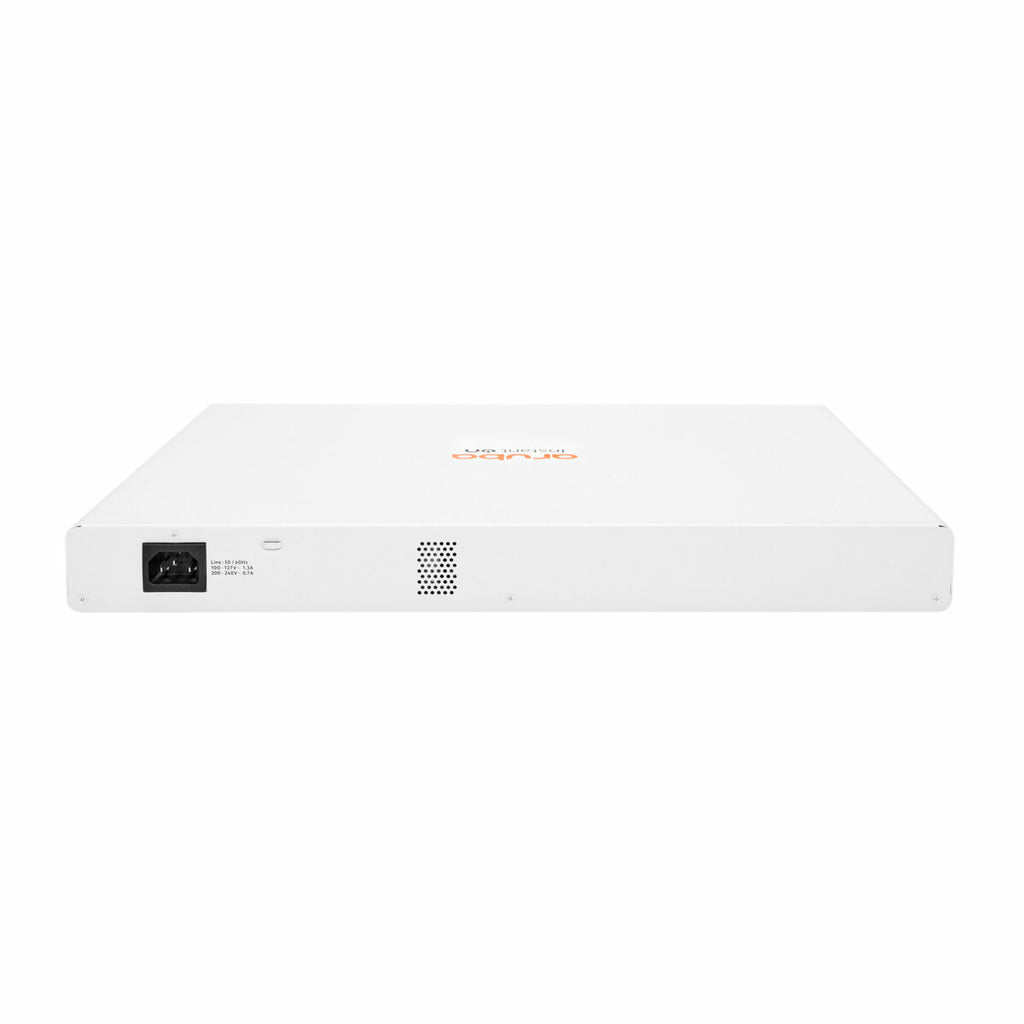

| Power Input | 100–127VAC / 200–240VAC |
| Power Consumption | Max: 130W (100–127V), 160W (200–220V)Idle: 60W / 80W |
| Form Factor | Rack-mountable (1U) |
| Dimensions | 13.80 x 17.42 x 1.73 in (35.05 x 44.24 x 4.39 cm) |
| Weight | 9.6 lb (4.35 kg) |
