High-Performance Smart-Managed Switch for Growing Businesses

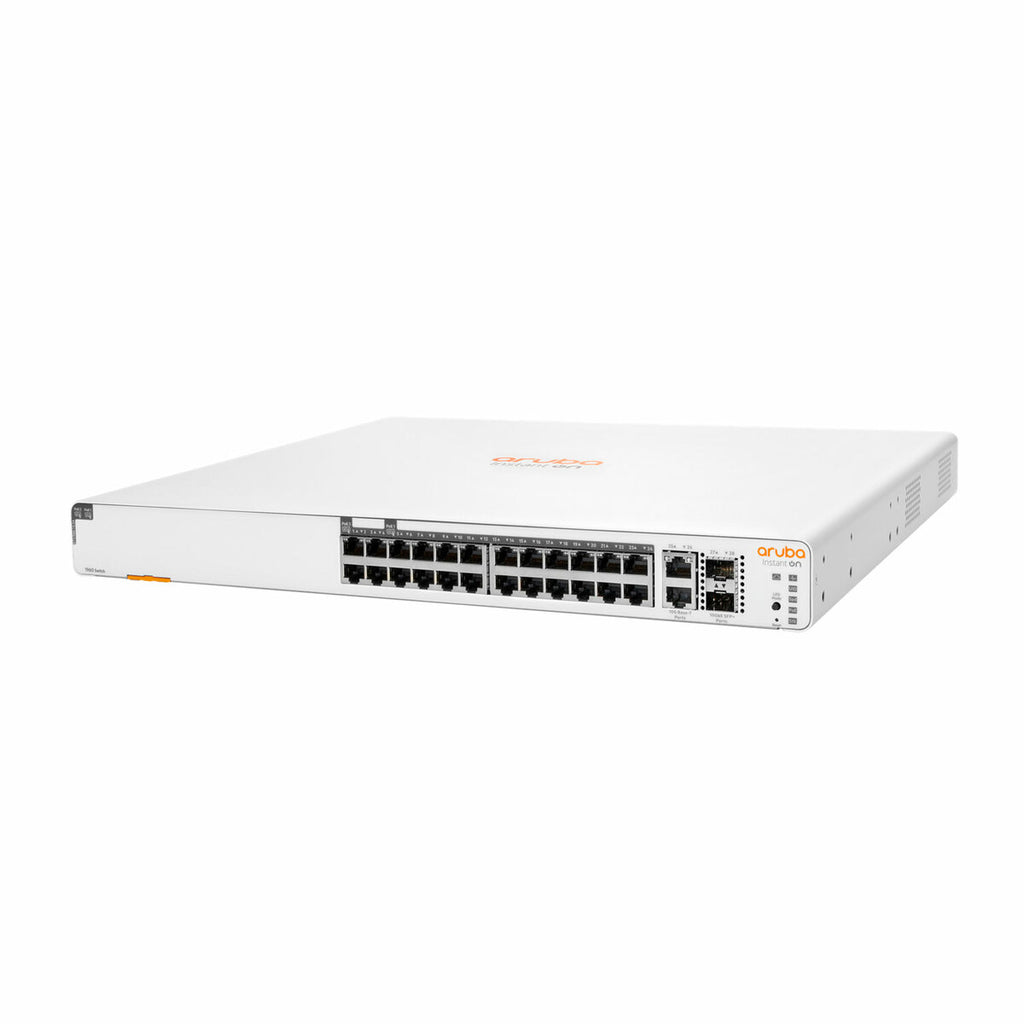

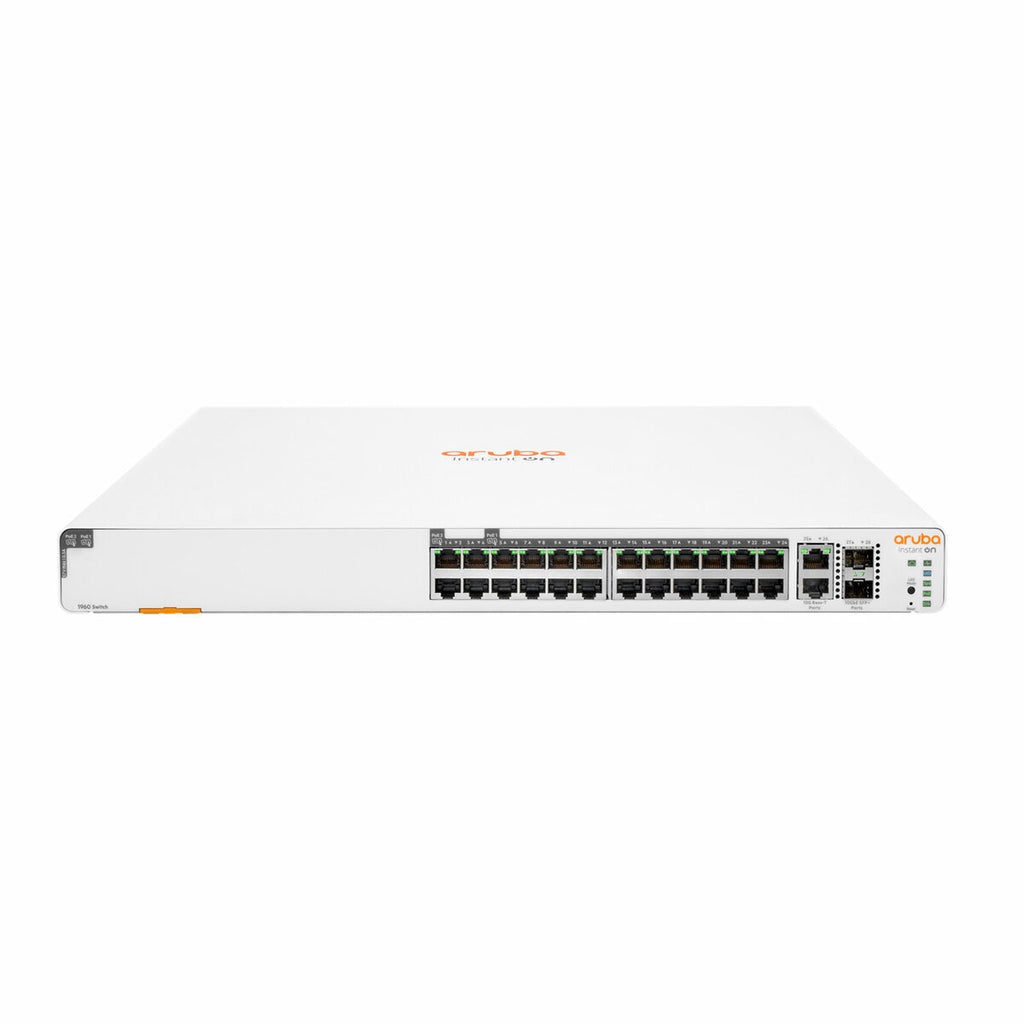

The HPE Networking Instant On 1960 JL807A#ABA is a powerful smart-managed 24-port Gigabit Ethernet switch designed for small and medium-sized businesses that need scalable performance, robust security, and easy deployment. With support for both Class 4 and Class 6 PoE, it delivers 370W of total PoE power to support a range of devices including IP phones, wireless access points, and security cameras.
This model features 20x Class 4 PoE ports and 4x Class 6 PoE ports, along with 2x 10GBASE-T and 2x SFP+ uplink ports for lightning-fast 10GbE connectivity. Stacking support (up to 4 switches) and flexible cloud or local management options simplify expansion and network administration.
Ideal for bandwidth-heavy applications like voice, video conferencing, and remote collaboration, this switch brings enterprise-class functionality within reach of smaller IT environments.
| Specification | Details |
|---|---|
| Model Number | JL807A#ABA |
| Switch Type | Smart-managed Layer 2+ Ethernet Switch |
| Ports | 24x 10/100/1000BASE-T (20x Class 4 PoE, 4x Class 6 PoE) |
| 2x 10GBASE-T uplink (RJ-45), 2x SFP+ uplink ports | |
| PoE Power Budget | 370W Total (Up to 240W for Class 6 or 370W for Class 4 PoE) |
| Switching Capacity | 128 Gbps |
| Throughput | 95 Mpps |
| Stacking Support | Up to 4 switches; cloud-managed or local stacking |
| Management Interfaces | Instant On Cloud (Mobile App/Web), Web GUI, SNMP |
| Processor & Memory | ARM Cortex-A9 @800MHz, 1GB DDR3, 512MB NAND Flash |
| Packet Buffer | 1.5 MB |
| Power Input | 100–127VAC / 200–240VAC |
| Power Consumption | Max: 500W (120V), 480W (240V); Idle: 40W (120V), 80W (240V) |
| Dimensions (W x D x H) | 17.42 x 13.80 x 1.73 in |
| Weight | 10.4 lbs (4.7 kg) |
| Security Features | 802.1X RADIUS authentication, VLANs, ACLs, DoS Protection |
| Mounting | Rack-mountable (1U) |
| Warranty | Limited Lifetime Warranty |
