Description

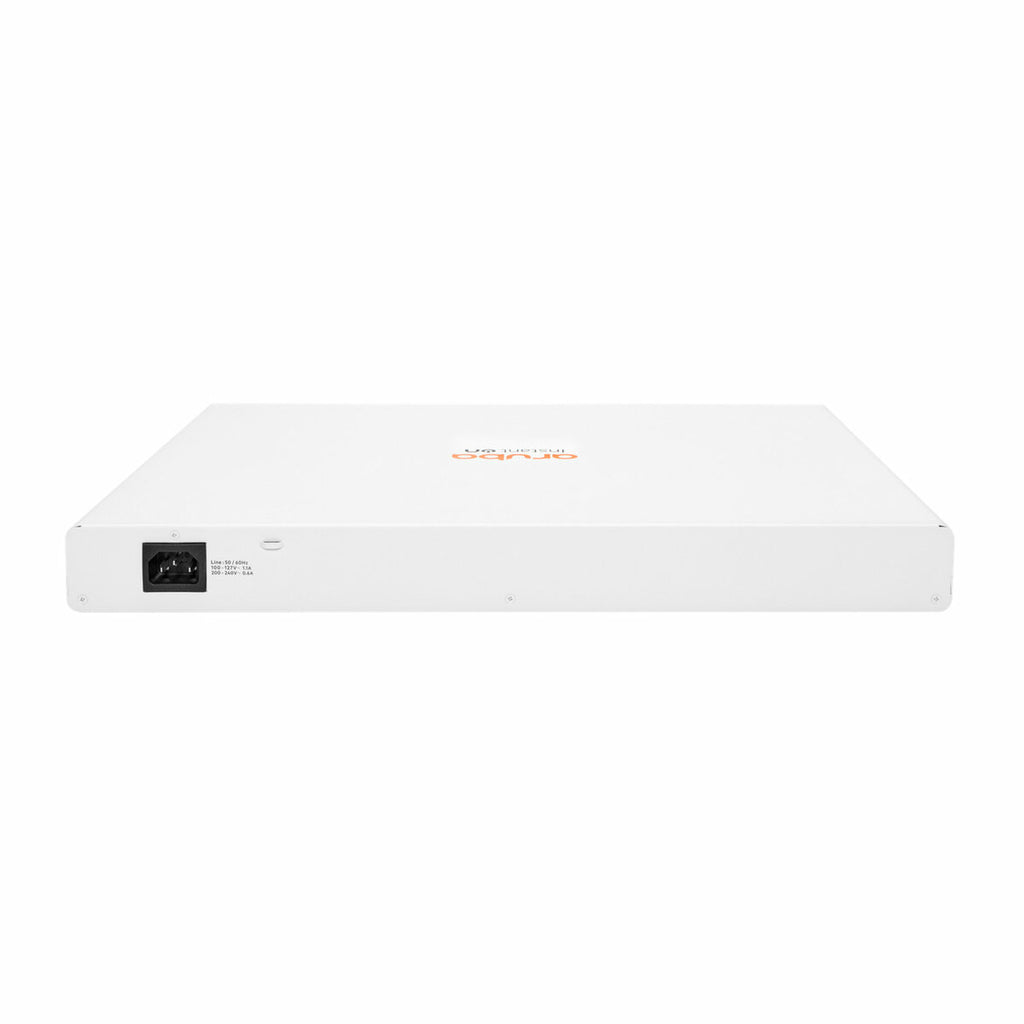

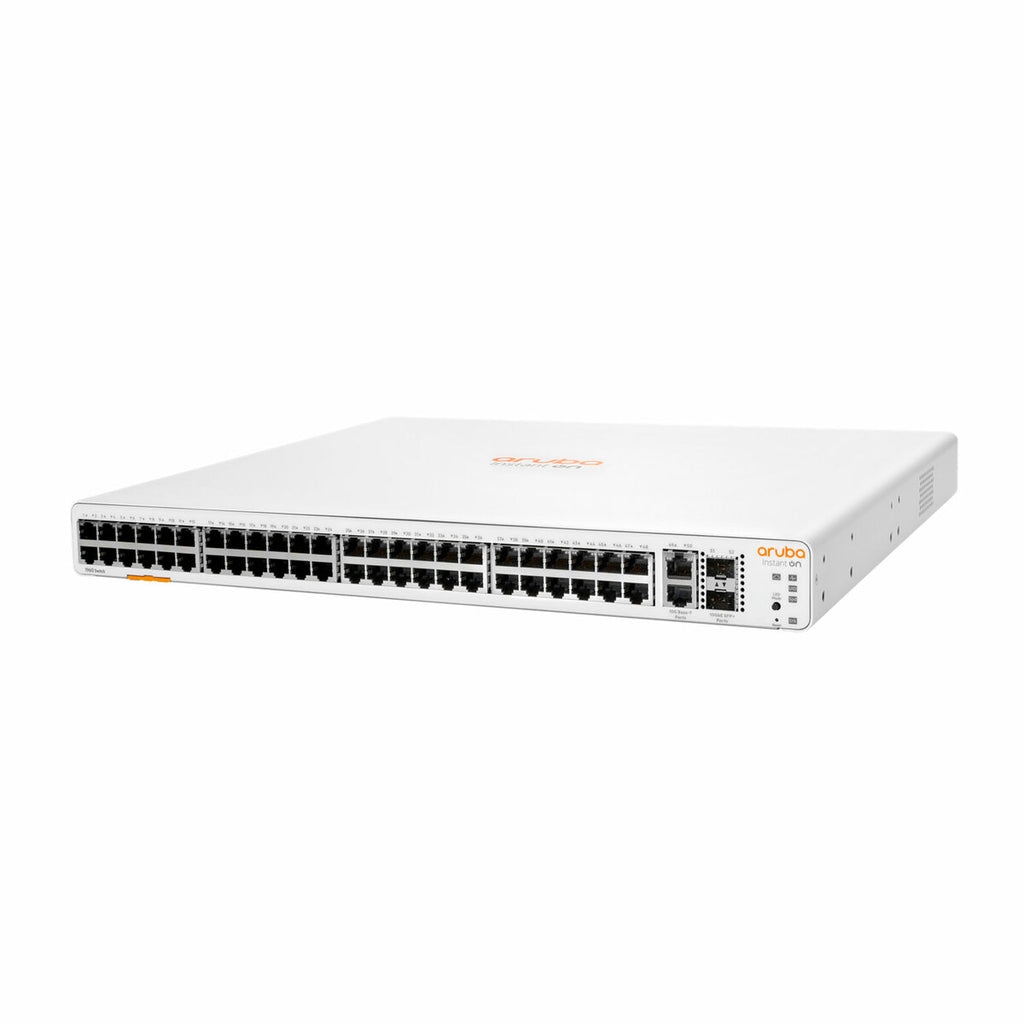

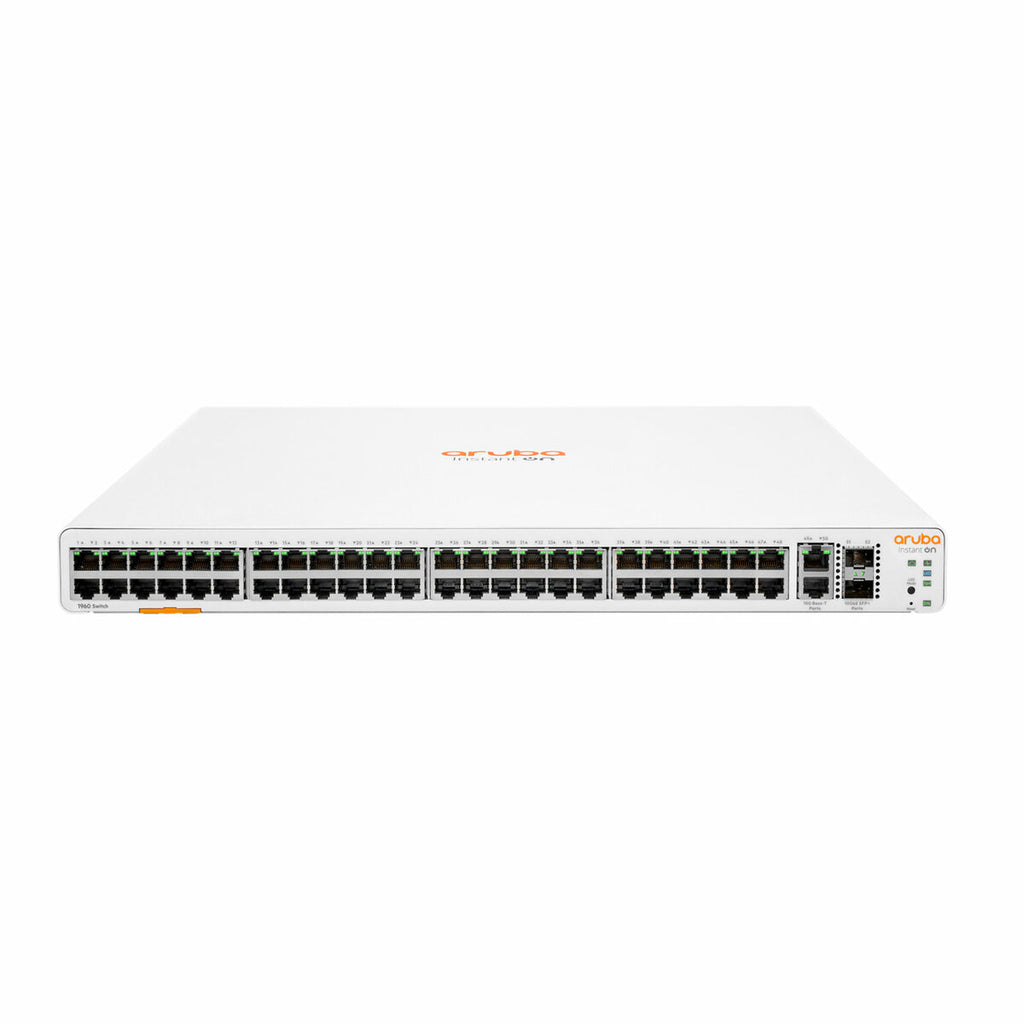

The HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch is a high-performance, smart-managed, stackable Gigabit switch designed for small to midsize businesses needing reliable, scalable, and secure network connectivity. With 48 Gigabit Ethernet ports, two 10GBASE-T, and two 10GbE SFP+ uplinks, this rack-mountable switch supports high-bandwidth applications such as video conferencing, large file transfers, and VoIP.
Flexible management through a local web GUI, mobile app, or cloud-based portal simplifies deployment and monitoring. Cloud-managed stacking allows up to four 1960 switches to operate as one for streamlined management. Advanced security features including VLANs, ACLs, and 802.1X with RADIUS authentication help safeguard your network. Ideal for growing environments needing 10G aggregation and robust feature sets.
| Category | Details |
|---|---|
| Model | HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch |
| Part Number | JL808A#ABA |
| Switch Type | Smart-managed, Layer 2+ Ethernet switch |
| Ports | 48 x 10/100/1000BASE-T RJ-452 x 10GBASE-T2 x 10GbE SFP+ |
| Stacking | Up to 4 switches, local or cloud-managed stacking |
| Switching Capacity | 176 Gbps |
| Throughput | 131 Mpps |
| Memory | 1 GB DDR3 RAM, 512 MB NAND flash, 1.5 MB packet buffer |
| Processor | ARM v7 Cortex-A9 @800 MHz |
| Management Options | Instant On Cloud, Web GUI, SNMP |
| Power Input | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max: 110W (100–127V), 120W (200–240V)Idle: 60W / 80W |
| Form Factor | Rack-mountable, 1U |
| Dimensions | 13.80 x 17.42 x 1.73 in (35.05 x 44.24 x 4.39 cm) |
| Weight | 9.8 lb (4.45 kg) |
| Security Features | 802.1X, ACLs, VLANs, DoS Protection |
| Ideal For | SMBs, voice/video conferencing, 10G uplink aggregation |
