Description
Powerful Smart-Managed Switching for Growing Networks

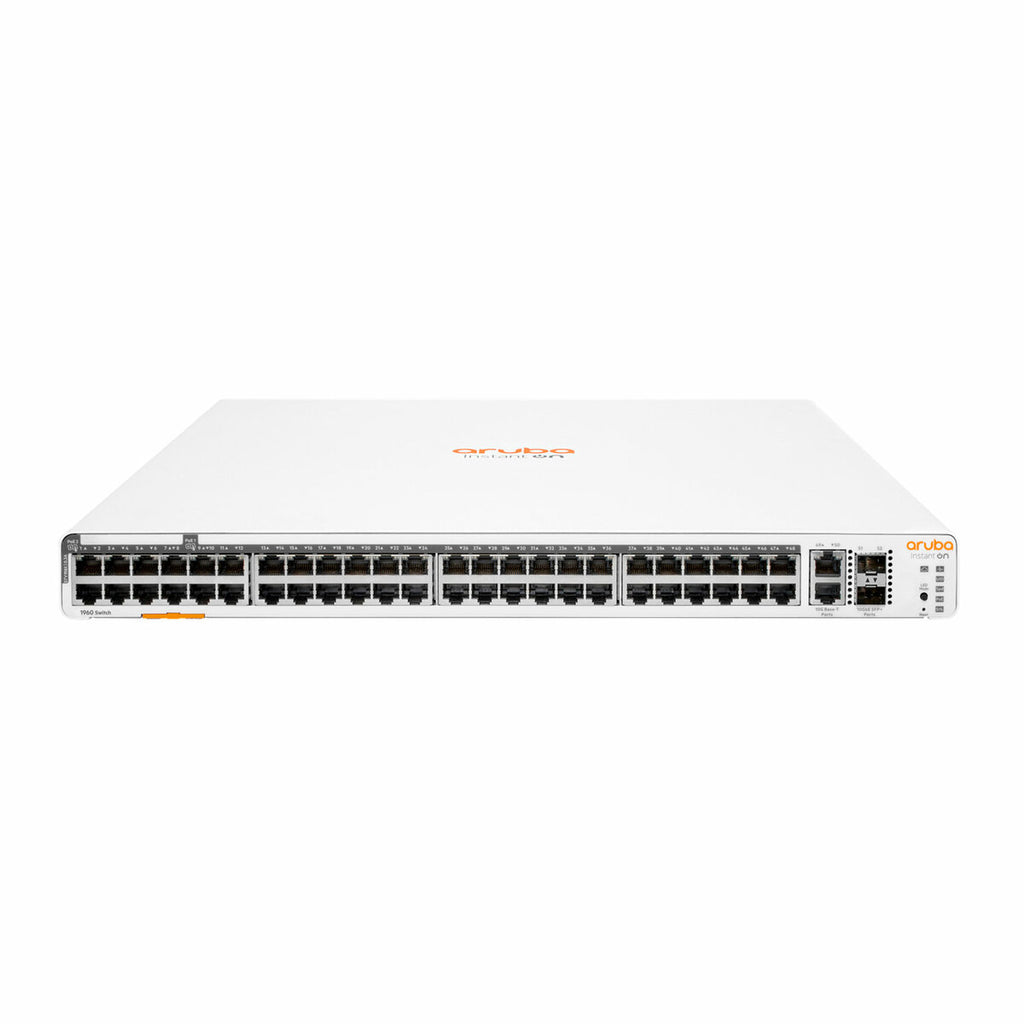

The HPE Aruba Networking Instant On 1960 48-Port PoE+ Smart Switch (JL809A#ABA) is an advanced Layer 2+ Gigabit stackable switch designed to support bandwidth-heavy applications in small and growing businesses. This model features 48 Gigabit Ethernet ports, including 8 Class 6 (60W) and 40 Class 4 (30W) PoE ports, as well as 2 10GBASE-T and 2 SFP+ uplinks to ensure high-speed, scalable connectivity to servers, storage, or aggregation switches.
The 1960 series enables simple deployment and centralized management through the Aruba Instant On mobile app or cloud portal, with built-in stacking capabilities for up to four switches managed as one. Robust Layer 2+ features, enterprise-grade security including 802.1X, VLANs, and ACLs, and up to 600W of PoE power delivery make this the ideal switch for environments requiring both performance and flexibility.
| Feature | Details |
|---|---|
| Part Number | JL809A#ABA |
| Ports | 48x 10/100/1000BASE-T (8x CL6 PoE+, 40x CL4 PoE) |
| 2x 10GBASE-T RJ-45, 2x SFP+ (10GbE) uplink ports | |
| PoE Budget | 600W total (Up to 480W Class 6 or 600W Class 4 PoE) |
| Switching Capacity | 176 Gbps |
| Throughput | 131 Mpps |
| Stacking | Up to 4 switches, managed via cloud or locally |
| Memory & Processor | ARM Cortex-A9 800 MHz, 1 GB DDR3, 512 MB NAND, 1.5 MB packet buffer |
| Management Options | Instant On Mobile App, Cloud Web Portal, Local Web GUI, SNMP |
| Security | 802.1X, VLAN, ACLs, DoS protection |
| Power Input | 100–127VAC / 200–240VAC |
| Power Consumption | Max: 790W (120V), 760W (240V) / Idle: 60W (120V), 100W (240V) |
| Form Factor | Rack-mountable (1U height) |
| Dimensions | 15.86 x 17.42 x 1.73 in (40.3 x 44.2 x 4.4 cm) |
| Weight | 10.8 lb (4.9 kg) |
| Warranty | Limited Lifetime Warranty |
