Description

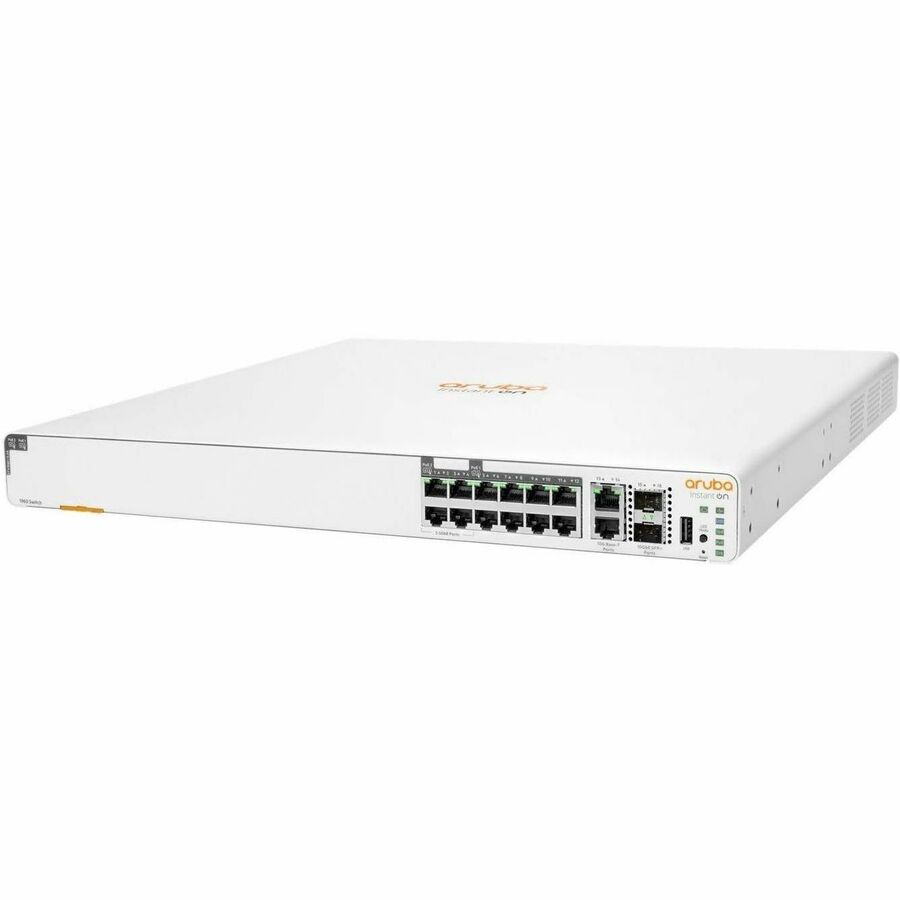

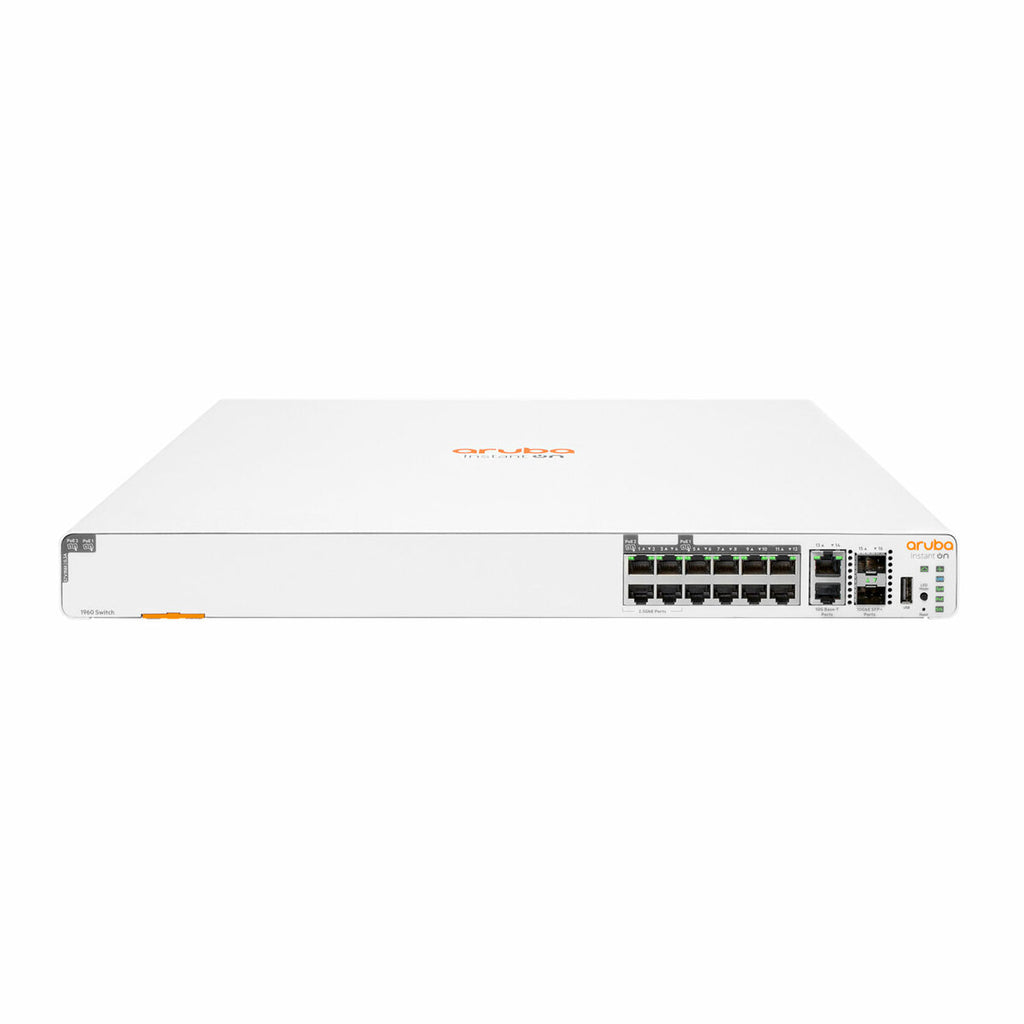

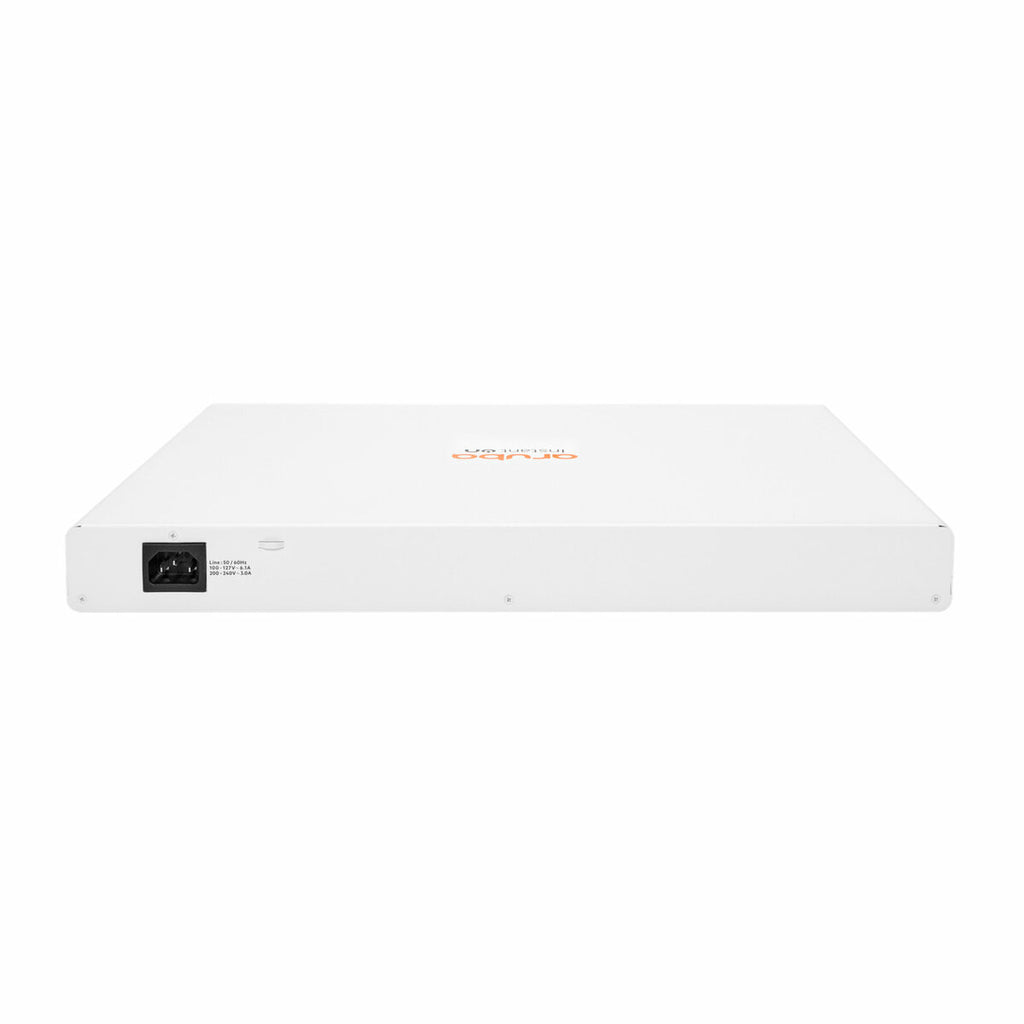

The HPE Networking Instant On 1960 Switch (S0F35A#ABA) is a smart-managed Layer 2+ Ethernet switch built to support modern small business networks. With 12 ports, including 4 x 2.5GBASE-T, 8 x 1GBASE-T, 2 x 10GBASE-T, and 2 x 10G SFP+, this rack-mountable switch provides high-speed connectivity for bandwidth-heavy applications like voice, video conferencing, and surveillance.
Designed for simplicity, the switch supports cloud-managed or local web-based management via the Instant On mobile app or web portal. With 480W total PoE power, it efficiently powers access points, IP phones, and smart cameras. Cloud-managed stacking of up to 4 switches enables unified management through a single IP.
This model offers advanced security features such as VLANs, ACLs, 802.1X authentication, and automatic DoS protection, ensuring robust and secure networking.
| Specification | Details |
|---|---|
| Model Number | S0F35A#ABA |
| Product Series | HPE Networking Instant On 1960 |
| Switch Type | Smart-managed Layer 2+ |
| Form Factor | Rack-mountable (1U) |
| Ports | - 4 x 2.5GBASE-T (PoE+) - 8 x 1GBASE-T (PoE+) - 2 x 10GBASE-T - 2 x 10G SFP+ |
| PoE Power Budget | 480W (Class 4 & Class 6 PoE) |
| Switching Capacity | 116 Gbps |
| Throughput | 172 Mpps |
| Stacking | Up to 4 switches (cloud or local stacking) |
| Processor & Memory | ARM v7 Cortex-A9 @800 MHz, 1GB DDR3, 512MB NAND, 1.5MB buffer |
| Management | Instant On Mobile App, Cloud Portal, Web GUI, SNMP |
| Security | VLANs, ACLs, 802.1X, RADIUS, DoS protection |
| Power Input | 100-127VAC / 200-240VAC |
| Power Consumption | Max: 635W (100-127V), 623W (200-240V) Idle: 34W / 40W |
| Dimensions | 15.86 x 17.42 x 1.73 in (H x W x D) |
