Description

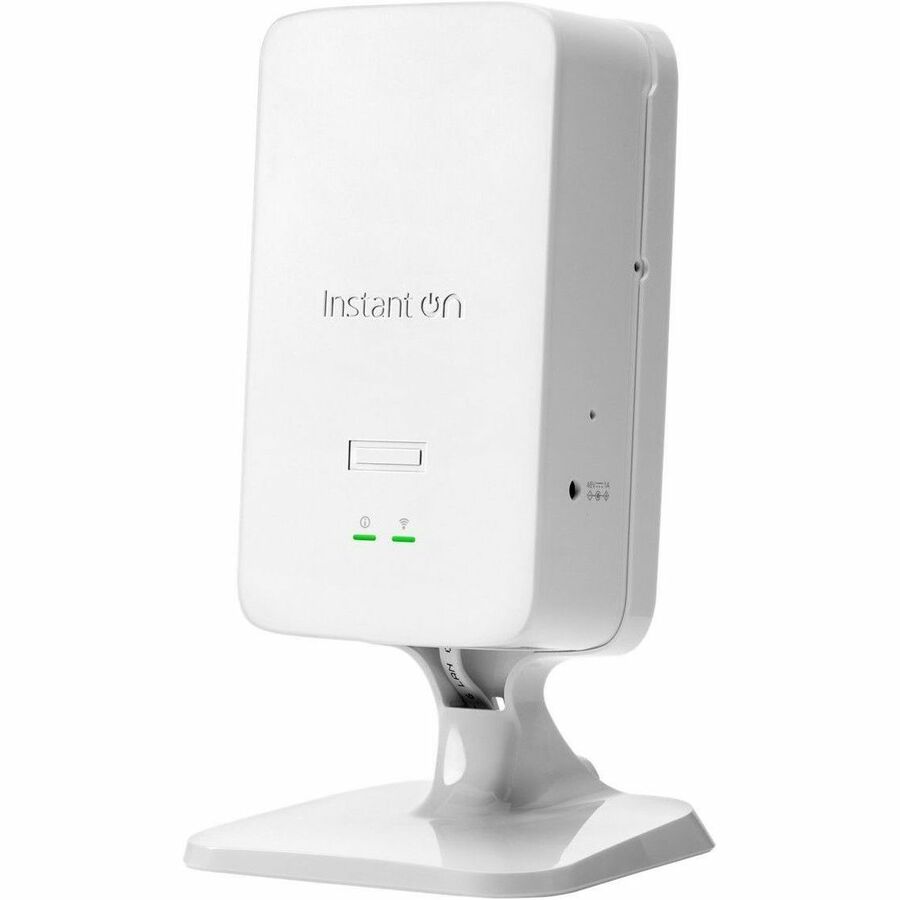

The HPE Networking Instant On AP22D (S1U75A) is a compact and versatile Wi-Fi 6 access point ideal for small businesses, remote workspaces, and hospitality environments. Designed with a 2.5 GbE uplink and four 1 GbE downlink ports, it offers flexible deployment for wired and wireless devices—including IP phones, receipt printers, and laptops—while minimizing cable clutter.
The AP22D delivers up to 1.7 Gbps aggregate throughput, supports 75+ concurrent devices, and features 2x2:2 MU-MIMO radios. With dual 15W PoE-out capabilities, it also powers peripheral devices without the need for extra injectors. Easily managed via the Instant On mobile app or cloud portal, it provides enterprise-grade features like guest network creation, access control, and power scheduling—all in a sleek form factor mountable on desks or walls.
| Specification | Details |
|---|---|
| Model Number | S1U75A |
| Wireless Standard | Wi-Fi CERTIFIED 6 (802.11ax), Dual-Radio 2x2 MIMO |
| Maximum Wireless Throughput | Up to 1.7 Gbps aggregate |
| Uplink Port | 1 x 2.5GbE Base-T (PoE+) |
| Downlink Ports | 2 x 1GbE Base-T PoE (802.3af), 2 x 1GbE Base-T |
| PoE Output | Up to 2x 15W (802.3af) |
| Input Power | 802.3bt (Class 6) for full function or 802.3at (Class 4) limited function |
| DC Power Option | 48V DC (power source sold separately) |
| Antenna Configuration | Integrated Dual semi-directional antennas (5.2 dBi @2.4GHz / 5.4 dBi @5GHz) |
| Transmit Power (Max) | +21 dBm @5GHz, +20 dBm @2.4GHz |
| Mounting Options | Wall gang box mount or desktop mount (kits included) |
| Management | Instant On App or Web Portal |
| Power Consumption | 51W (PoE) or 50W (DC) |
| Security | WPA2, WPA3 |
| Dimensions | Compact form factor (mountable) |
| Warranty | 2-year warranty with 24x7 phone support (first 90 days), chat support full period |
| Certifications | Wi-Fi Alliance Certified, FCC (US regulatory domain) |
