Description

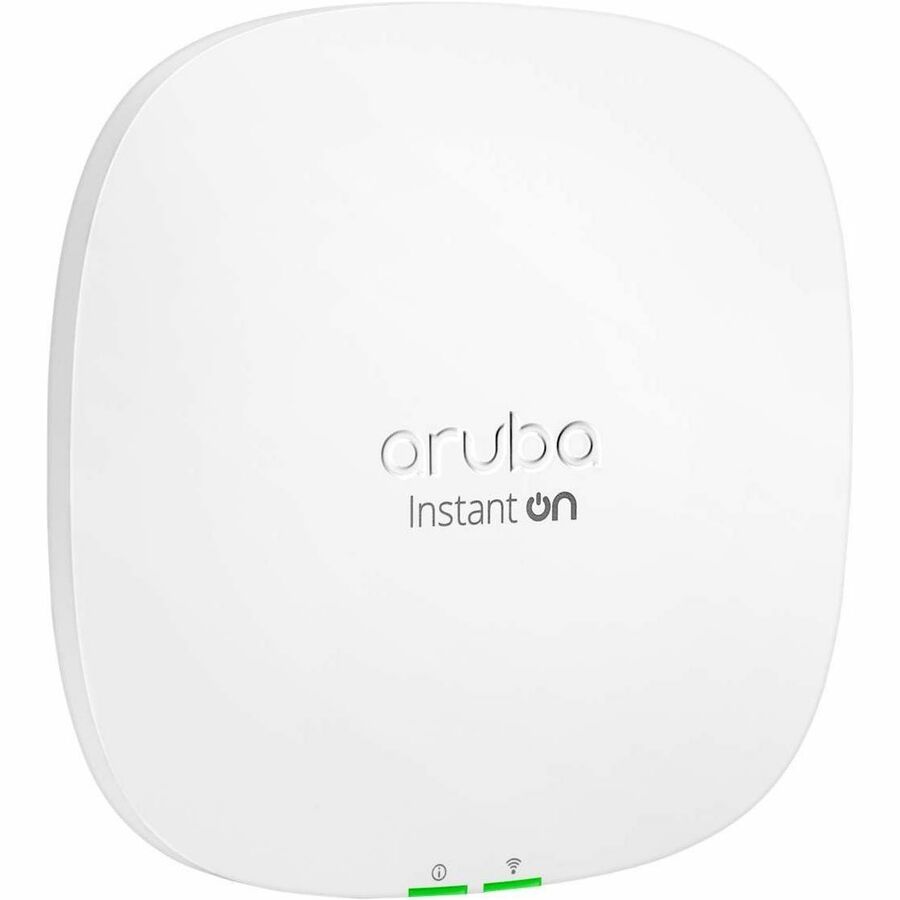

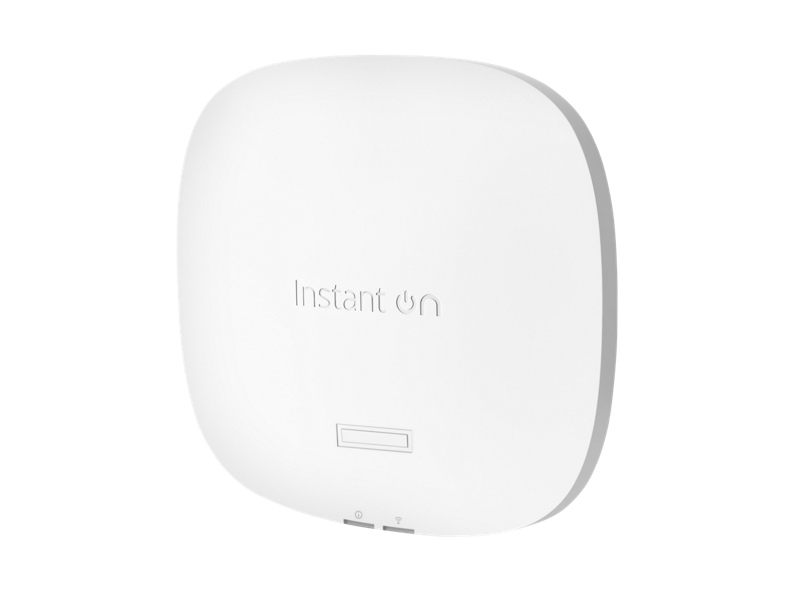

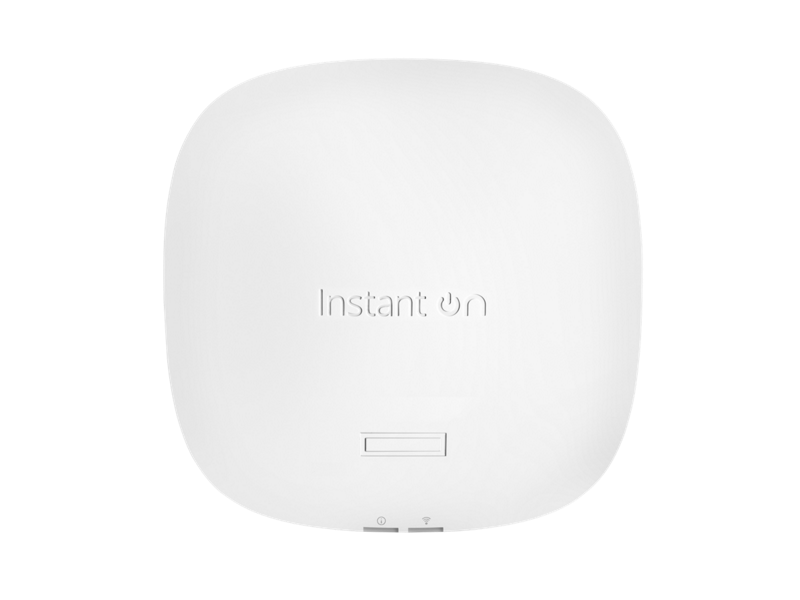

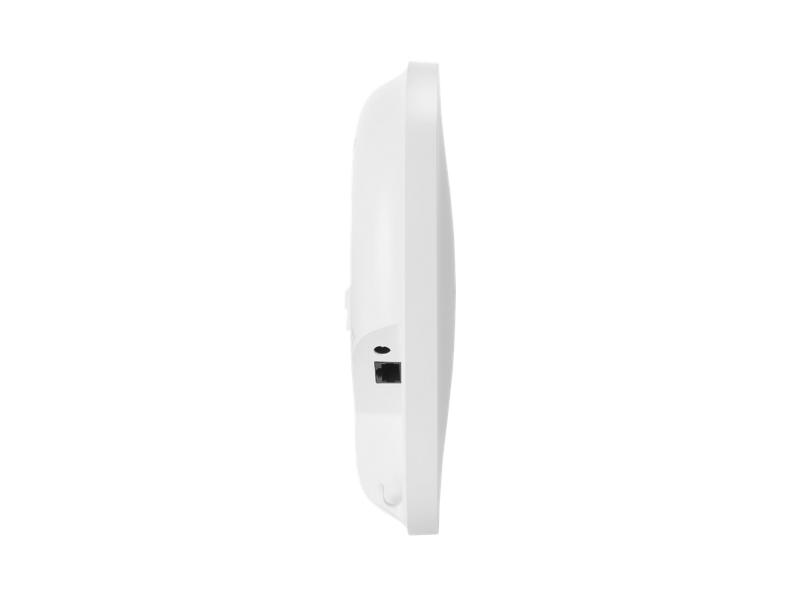

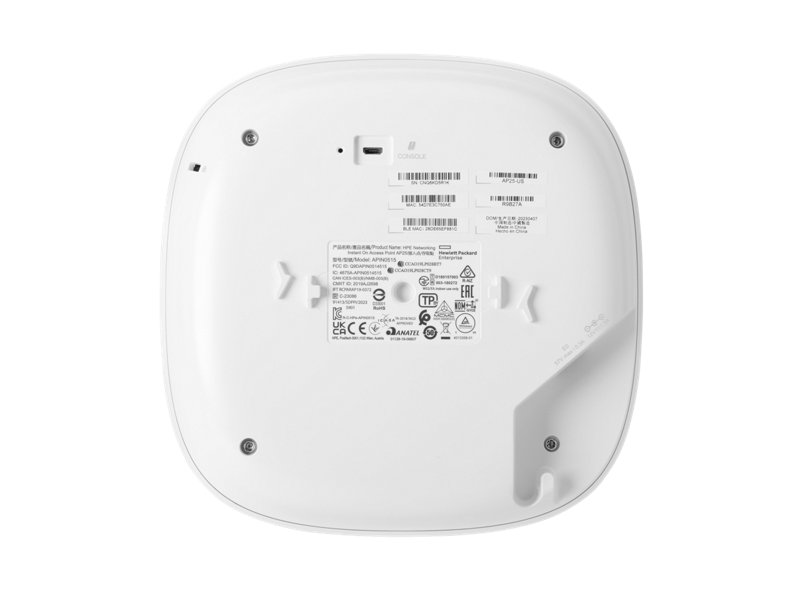

The HPE Networking Instant On AP25 Access Point Bundle with PSU (R9B32A) is a high-performance Wi‑Fi 6 (802.11ax) indoor access point designed to deliver exceptional coverage, capacity, and speed in high-density environments. Featuring a dual-radio 4x4 MU-MIMO antenna array and a 2.5 GbE uplink port, the AP25 supports a maximum wireless throughput of up to 5.3 Gbps. Ideal for busy common areas where 100 or more clients connect simultaneously, this bundle includes the access point, power supply unit (PSU), mount kit, and essential accessories for quick deployment.
This unit comes with a 2-year warranty and 24x7 phone support for the first 90 days. Flexible ceiling and wall mounting options make it suitable for various indoor installations.
| Specification | Details |
|---|---|
| Model | HPE Networking Instant On AP25 Bundle with PSU (US) |
| Part Number | R9B32A |
| Wi‑Fi Standards | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Radio Coverage | Dual-radio 802.11ax; 4x4 5 GHz MU-MIMO, 2x2 2.4 GHz MU-MIMO |
| Max Transmit Power | 5 GHz: +24 dBm (18 dBm per chain, 6 dB MIMO gain); 2.4 GHz: +21 dBm (18 dBm per chain, 3 dB MIMO gain) |
| Antenna Type | Dual omni-directional 4x4 MU-MIMO |
| Antenna Gain | 2.4 GHz: 3.7 dBi; 5 GHz: 4.5 dBi |
| Uplink Port | 1x 2.5 GbE Base-T |
| Mounting Options | Ceiling/wall mount clip included |
| Power Options | PoE 802.3at (class 4); 12V DC power via included PSU |
| Max Power Consumption | 20.1W (PoE); 15.9W (DC) |
| Security | WPA2/WPA3, Kensington lock slot |
| Bluetooth | Bluetooth Low Energy (BLE) |
| Management | Instant On mobile app, local web UI, or cloud portal |
| Warranty | 2-year warranty with 90-day 24x7 phone support |
| Dimensions (W x D x H) | 5.1 x 20.3 cm (2 x 8 x 8 in) |
| Weight | 1.18 kg (2.6 lb) |
| In the Box | AP25 access point, PSU, Ethernet cable, mounting kit, start guide |
