Description

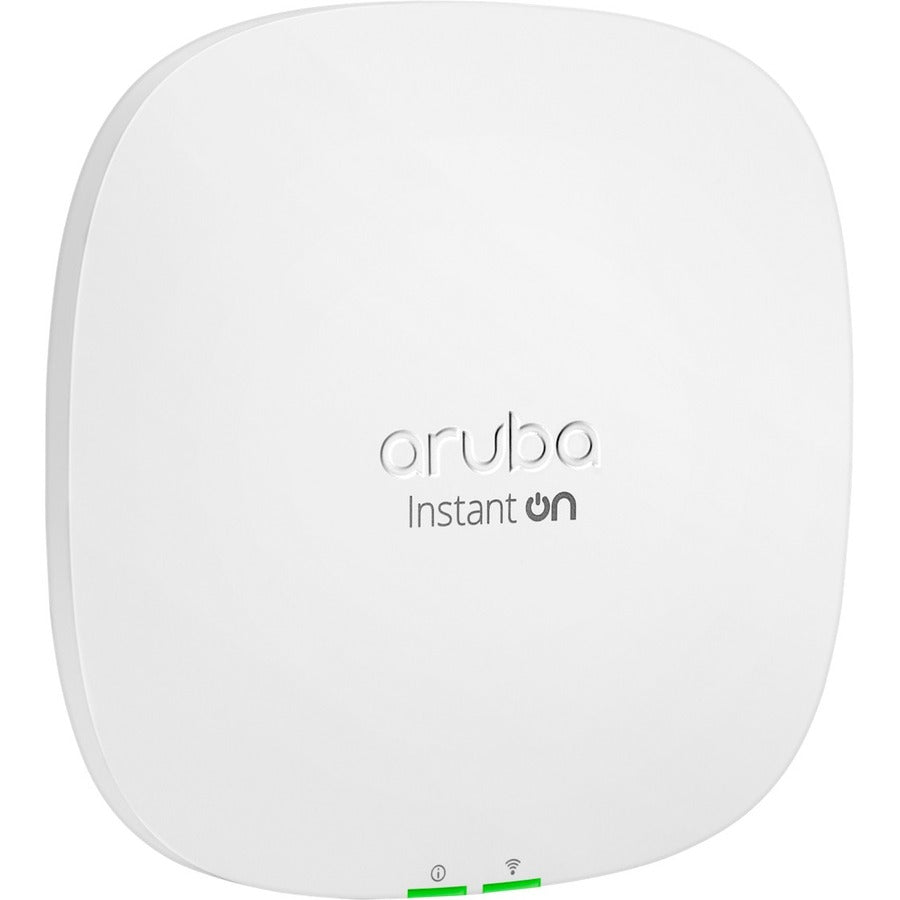

Deliver blazing-fast, reliable Wi-Fi in high-density indoor environments with the HPE Networking Instant On AP25. Designed for modern businesses, this top-performing access point supports Wi-Fi 6 (802.11ax) with a powerful 4x4 MU-MIMO antenna array, ensuring optimal coverage and performance in busy areas like conference rooms, cafés, and open workspaces. Equipped with a 2.5 GbE uplink, the AP25 maximizes throughput—up to 5.3 Gbps—outpacing traditional 1 GbE Wi-Fi 6 APs.
Ideal for handling 100+ concurrent devices, the AP25 features dual-radio coverage, secure WPA3/WPA2 encryption, BLE, and flexible mounting options. Whether wall- or ceiling-mounted, it provides seamless integration into your network and is perfect for SMBs seeking enterprise-grade performance with simple setup and management through the Instant On mobile app or web portal.
| Specification | Details |
|---|---|
| Model Number | R9B27A |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), 4x4:4 MU-MIMO |
| Radios | Dual-radio 802.11ax (2.4 GHz 2x2 + 5 GHz 4x4 MU-MIMO) |
| Max Throughput | Up to 5.3 Gbps total wireless throughput |
| Antenna Type | Internal dual omni-directional antennas |
| Antenna Gain | 3.7 dBi @ 2.4GHz, 4.5 dBi @ 5GHz |
| Transmit Power (max) | +24 dBm @ 5GHz, +21 dBm @ 2.4GHz |
| Ethernet Port | 1 x 2.5 GbE Base-T uplink port |
| Additional Ports | DC power connector, Kensington security slot |
| Bluetooth | BLE (Bluetooth Low Energy) |
| Power Input Options | 802.3at PoE (Class 4) or 12V DC (power sold separately) |
| Power Consumption (max) | 20.1W (PoE), 15.9W (DC) |
| Mounting Options | Ceiling or wall mount (clip included) |
| LED Indicators | Yes |
| Security | WPA2/WPA3, Kensington Lock Slot |
| Certifications | Wi-Fi Alliance certified, WPA2, WPA3 |
| Warranty | 2-year warranty, 24/7 phone support for 90 days, chat + community support throughout product life |
| In the Box | AP25 unit, mount clip, Ethernet cable, quick start guide |
| Dimensions (HxWxD) | 5.1 x 20.3 cm (2 x 8 x 8 in) |
| Weight | 1.18 kg (2.6 lb) |
| Regulatory Domain | US |
