Description

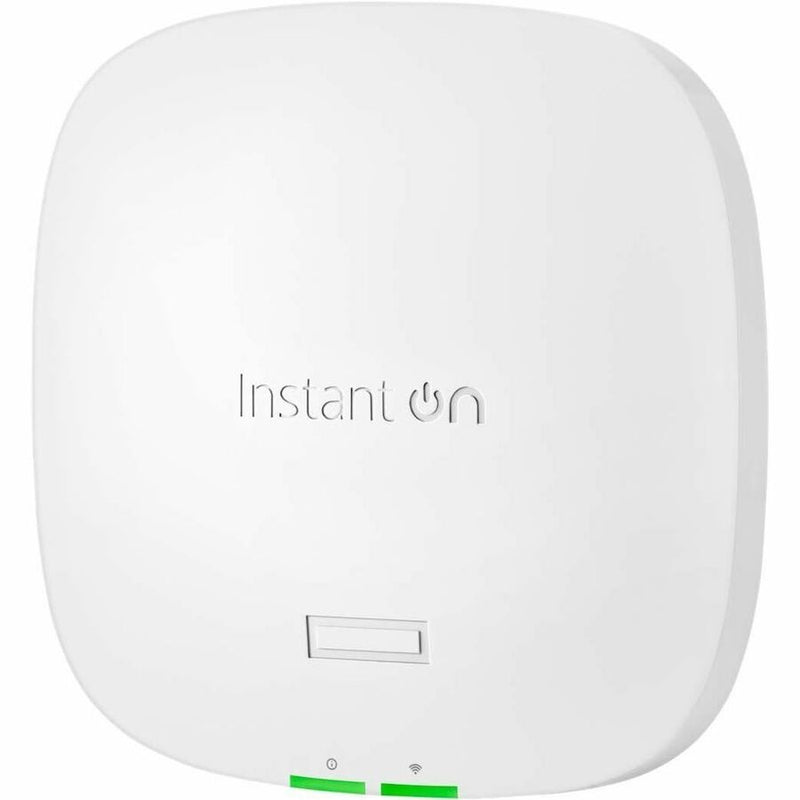

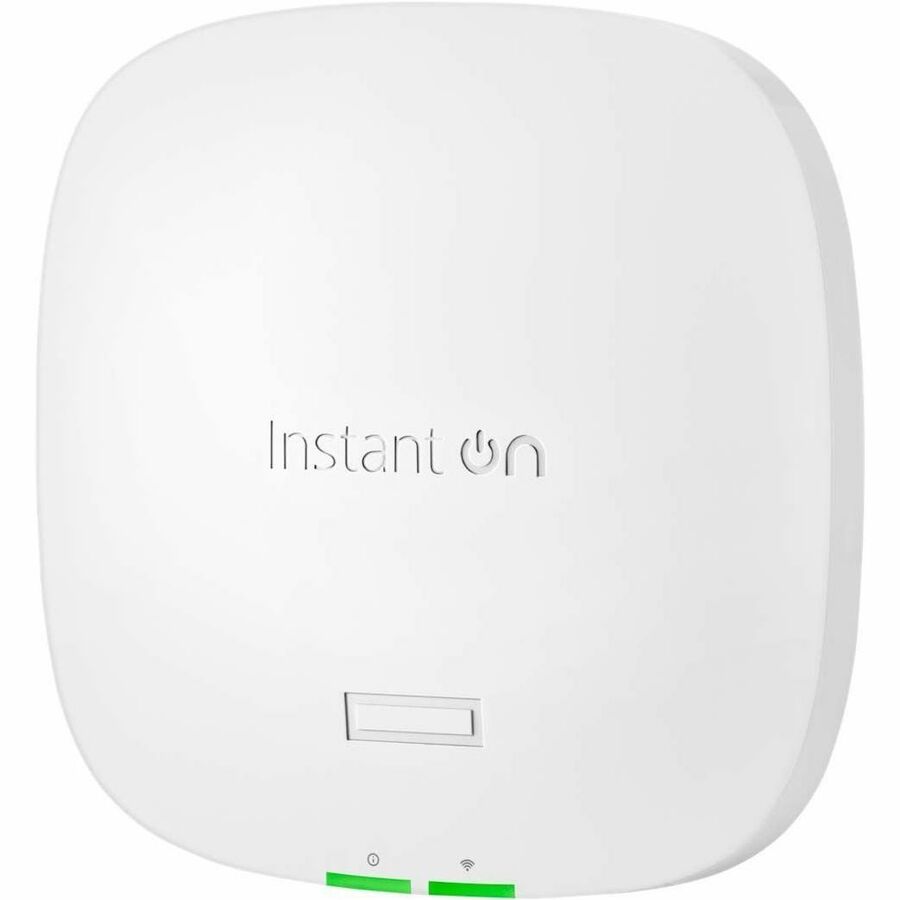

The HPE Networking Instant On AP32 is a compact and powerful wireless access point engineered to deliver next-generation performance for modern small and medium-sized businesses. Featuring tri-band support with Wi-Fi 6E technology, the AP32 unlocks access to the 6 GHz band for faster speeds, reduced interference, and more connected devices.
With its dual-radio 2x2 MIMO antenna, the AP32 ensures strong, consistent wireless coverage and supports up to 75 devices with an aggregate throughput of 2.8 Gbps. A 2.5 GbE uplink port and PoE simplify installation and eliminate network bottlenecks.
Manage everything from anywhere using the HPE Networking Instant On mobile app or cloud portal, with built-in security features like WPA3, Enhanced Open, OFDMA, and TWT for IoT efficiency. Designed for flexible deployment, the AP32 can be wall or ceiling mounted to fit seamlessly into your workspace.
| Specification | Details |
|---|---|
| Model | HPE Networking Instant On AP32 (US) ā S1T22A |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6 & Wi-Fi 6E certified) |
| Bands | Tri-band: 2.4 GHz, 5 GHz, 6 GHz (two active bands at a time) |
| Antenna Type | 2x2 MIMO with dual omnidirectional antennas |
| Antenna Gain | 2.8 dBi (2.4 GHz), 4.5 dBi (5 GHz & 6 GHz) |
| Max Transmit Power | +21 dBm per band (18 dBm per chain, 3 dB MIMO gain) |
| Max Wireless Throughput | Up to 2.8 Gbps |
| Max Client Support | Up to 75 devices |
| Ethernet Port | 1x 2.5 GbE Base-T Uplink |
| Power Input | 802.3at PoE (Class 4), or 12V DC (sold separately) |
| Power Consumption | 12.9W (PoE), 11.0W (DC) |
| Mounting Options | Wall or ceiling mount with included clip |
| Security Features | WPA2/WPA3, Enhanced Open, client traffic blocking, insights via mobile app |
| Advanced Features | OFDMA, TWT (Target Wake Time), MIMO |
| Management | Instant On mobile app or web portal |
| Certifications | Wi-Fi CERTIFIED 6E, WPA2/WPA3, WFA |
| Other Ports | DC Power connector, LED status, reset/LED control button, Kensington slot |
