Description

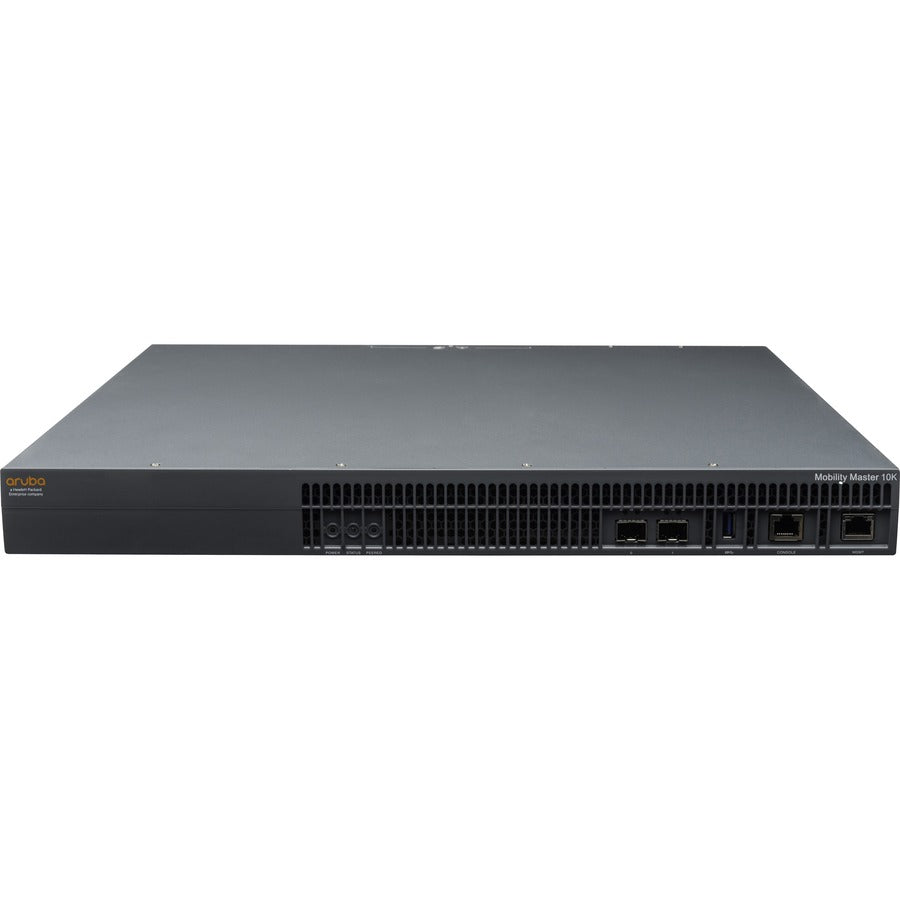

The HPE Aruba Networking MCR-HW-10K Mobility Conductor Hardware Appliance (JY793A) is a powerful, x86-based hardware platform designed to manage up to 10,000 devices, 100,000 clients, and 1,000 controllers. This appliance enables enhanced scalability and reliability for large campus and enterprise environments through centralized control of Aruba Mobility Controllers.
Supporting Wi-Fi 6, WPA3, Enhanced Open, and advanced features like dynamic segmentation, AI-powered RF optimization (AirMatch & ClientMatch), and zero-touch provisioning, the MCR-HW-10K simplifies large-scale wireless deployments while improving performance and security. It includes dual power supplies, rack mounting capabilities, and 2x 10G SFP+ ports for high-speed connectivity.
Ideal for organizations requiring uninterrupted, mission-critical wireless infrastructure, the appliance is backed by a 1-year hardware warranty, with optional extended support.
| Category | Details |
|---|---|
| Model Number (SKU) | JY793A |
| Device Capacity | Up to 10,000 devices (APs + Controllers) |
| Client Support | Up to 100,000 clients |
| Controller Capacity | Up to 1,000 controllers |
| Form Factor | 1U rack-mountable |
| Ports | 2 × 10G SFP+ |
| Console Port | 1 × RJ-45 |
| USB Port | 1 × USB 3.0 |
| Management Port | 1 × Out-of-band management port |
| Power Supply | Dual 400W redundant hot-swappable PSUs |
| Input Voltage | 100–240V AC, 50–60 Hz |
| Typical Power Consumption | 120W |
| Mounting | Standard telco rack or equipment cabinet |
| Wi-Fi Certifications | Wi-Fi CERTIFIED WPA3, Enhanced Open, 802.11ax, 802.11ad |
| Security & Compliance | FCC Class A, CE, UL 60950, EN60950, Industry Canada A, VCCI A, CB, C-tick |
| Weight | 7.2 kg (15.87 lbs) |
| Dimensions (H × W × D) | 4.4 × 44.2 × 40.1 cm (1.73 × 17.40 × 15.79 in) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Warranty | 1-year parts/labor (extendable with support contract) |
| Regulatory SKU | ARCNMCRHW |
