Description

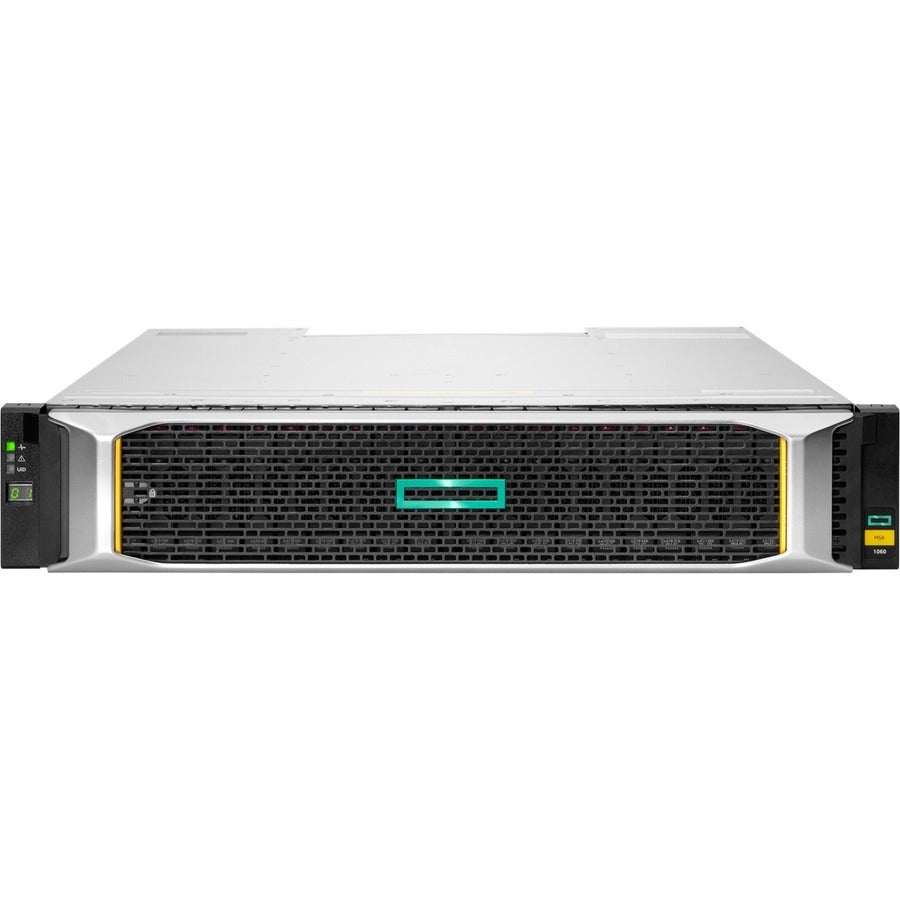

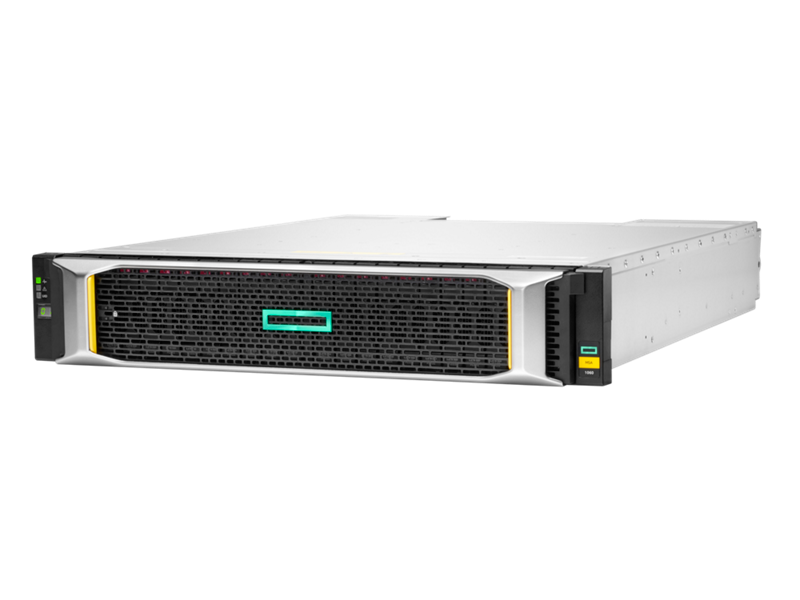

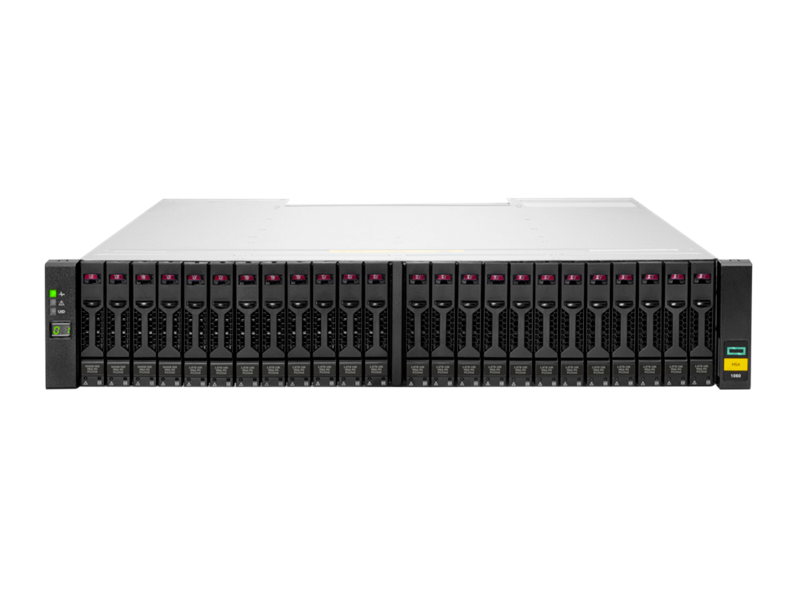

The HPE MSA 1060 16Gb Fibre Channel SFF Storage (R0Q85B) is an entry-level, flash-ready storage solution built for small businesses and remote office deployments. Featuring (2) 2-port 16Gb Fibre Channel controllers, this 2U Small Form Factor chassis delivers excellent performance and scalability at a budget-friendly price point. With support for up to 737.28 TB using SFF expansion or 904.32 TB with LFF expansion, the MSA 1060 enables hybrid configurations, automated tiering, and remote replication—perfect for growing businesses needing reliable data services without complexity. Easy to deploy and manage, the system accelerates applications with over 154,000 IOPS and integrates with industry-standard operating systems.
| Specification | Details |
|---|---|
| SKU | R0Q85B |
| Drive Description | Up to 24 SFF HDD and/or SSD |
| Capacity | 737.28 TB (SFF expansion), 904.32 TB (LFF expansion) |
| Storage Expansion Options | Add up to 3 x 2060 expansion enclosures (SFF or LFF) |
| Host Interface | 4 x 16Gb Fibre Channel |
| Storage Controller | (2) 2-port 16Gb Fibre Channel Controllers |
| Form Factor | 2U |
| Weight | 5 kg (11 lb) |
| Dimensions (H x W x D) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Energy Efficiency | Yes |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring Support | No |
| Systems Insight Manager Support | No |
| Compatible Operating Systems | Windows Server 2022/2019/2016, VMware vSphere 6.7, Red Hat Linux 8, SLES 15 |
| Host Connectivity | 16Gb FC, 10GBase-T iSCSI, or 12Gb SAS (depending on model) |
| Warranty | 3-year limited warranty, next business day parts exchange |
