Description

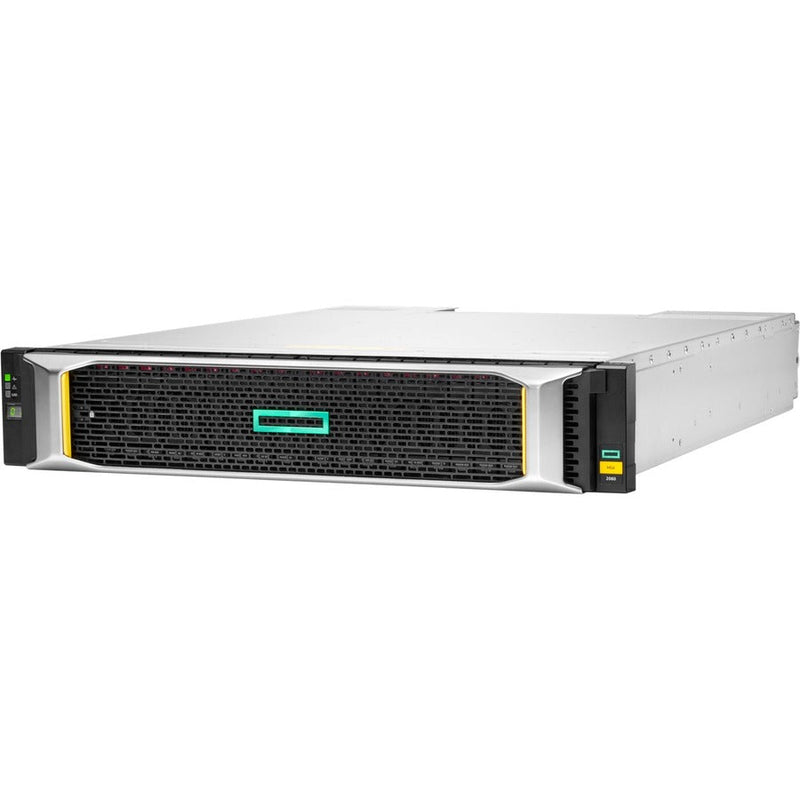

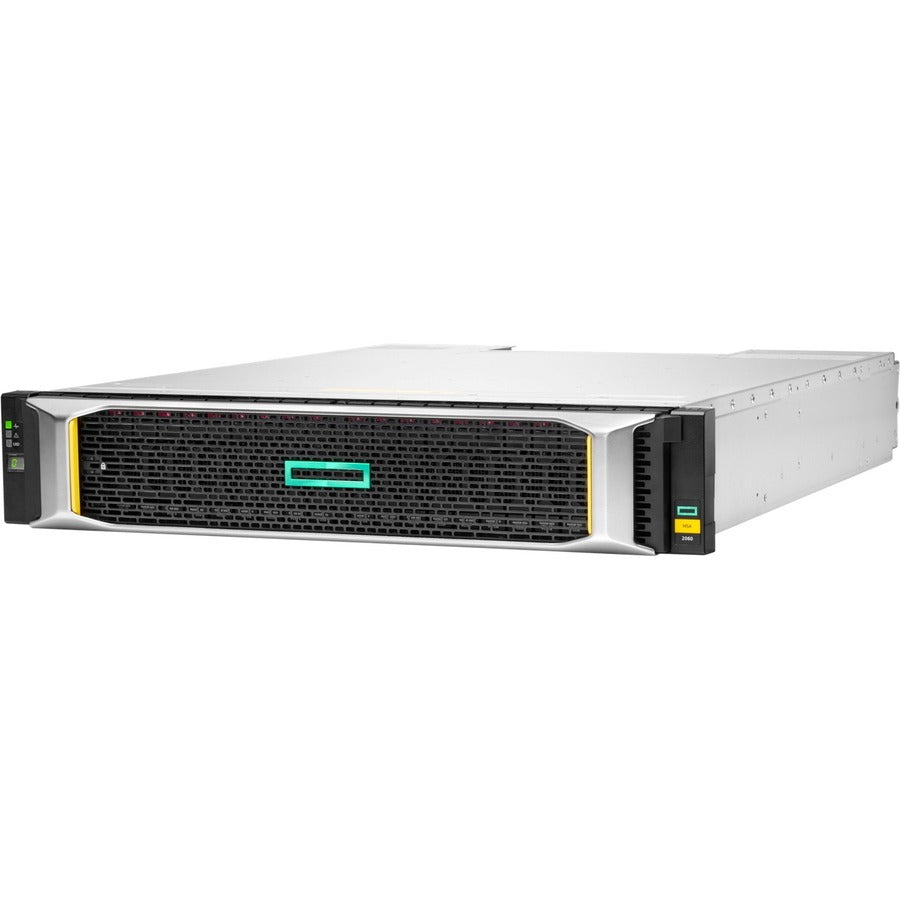

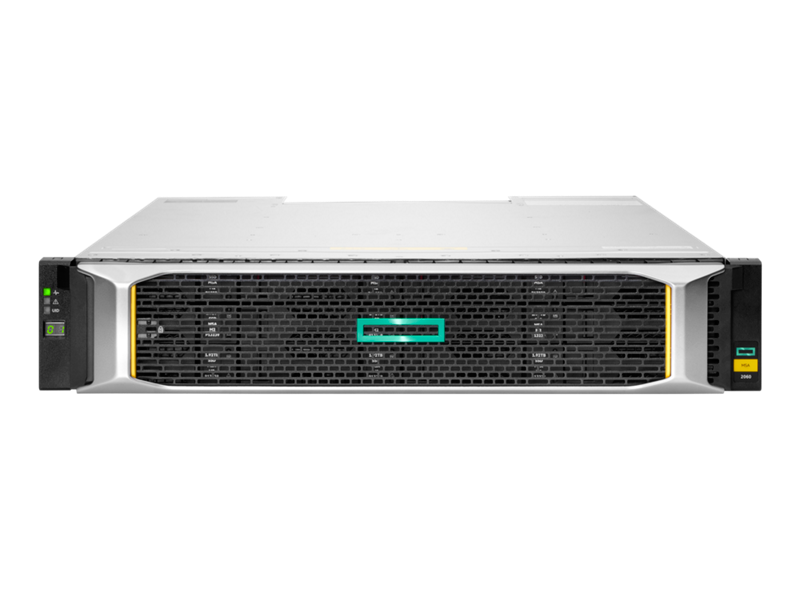

The HPE MSA 2060 10GBASE-T iSCSI LFF Storage is a powerful, entry-level hybrid storage solution designed to meet the high-performance and scalability needs of small to medium-sized businesses. This 2U large form factor (LFF) system comes equipped with two 4-port 10GBASE-T iSCSI controllers, supporting up to 12 LFF HDDs or SSDs per array and scalable to 2400 TB with full expansion. With a maximum throughput of 395,000 IOPS, it accelerates application performance without the complexity or cost of high-end storage solutions.
Engineered for simplicity, this flash-ready platform supports dynamic automated tiering, snapshot technology, remote replication, and a modern management UI—ideal for IT generalists. Expand with a mix of LFF and SFF enclosures, and integrate with major operating systems for reliable, versatile performance in demanding environments.
| Specification | Details |
|---|---|
| SKU | R7J72B |

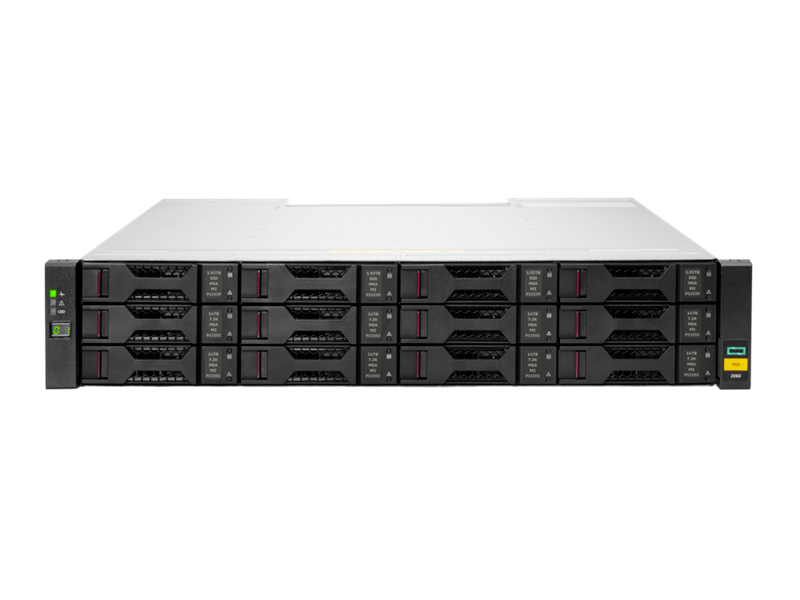

| Drive Description | Up to 12 LFF HDD and/or SSD per array |
| Maximum Capacity | 1898.88 TB (SFF expansion), 2400 TB (LFF expansion) |
| Storage Expansion | Supports up to 9 total enclosures (SFF and LFF mixed) |
| Host Interface | 8 x 10GBASE-T iSCSI ports (4 per controller) |
| Storage Controllers | 2 controllers, 4-ports each |
| Form Factor | 2U |
| Dimensions (W x D x H) | 44.5 x 50.8 x 8.9 cm (17.5 x 20.0 x 3.5 in) |
| Weight | 5 kg (11 lb) |
| Performance | Up to 395,000 IOPS |
| Clustering Support | Yes |
| Operating System Support | Windows Server 2022/2019/2016, VMware vSphere 6.7, Red Hat Linux 8, SuSE 15 |
| Energy Efficiency | Energy Star Compliant |
| Warranty | 3-year limited warranty with next business day parts exchange |
