Description

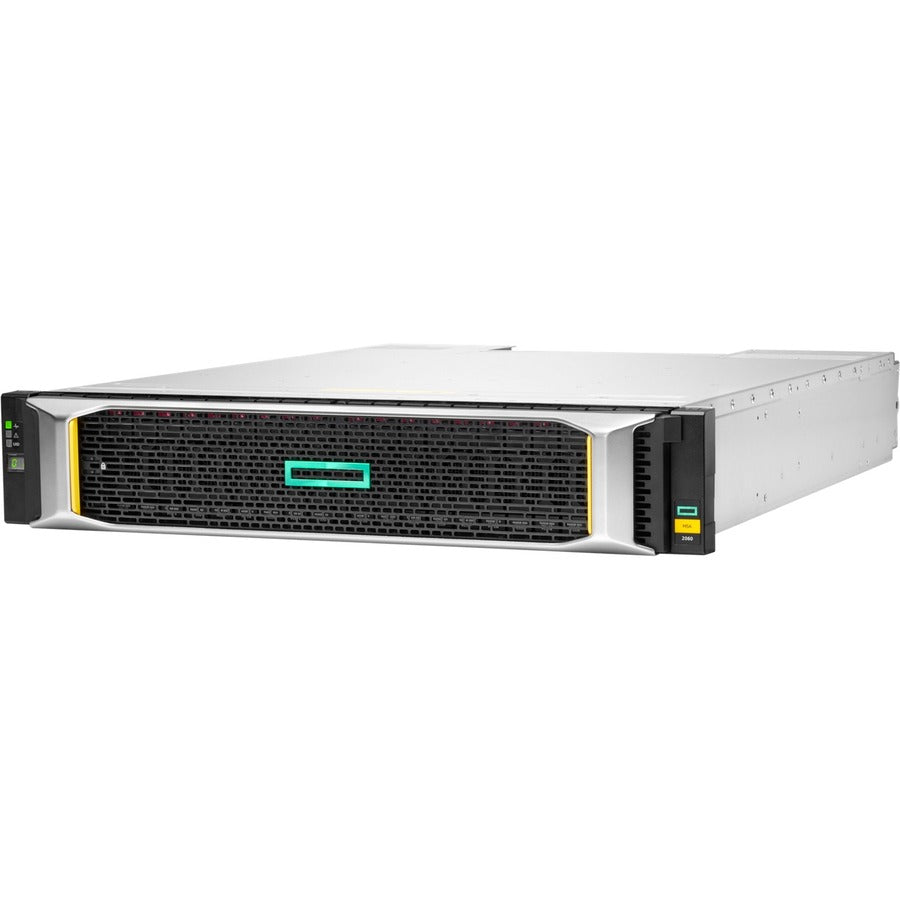

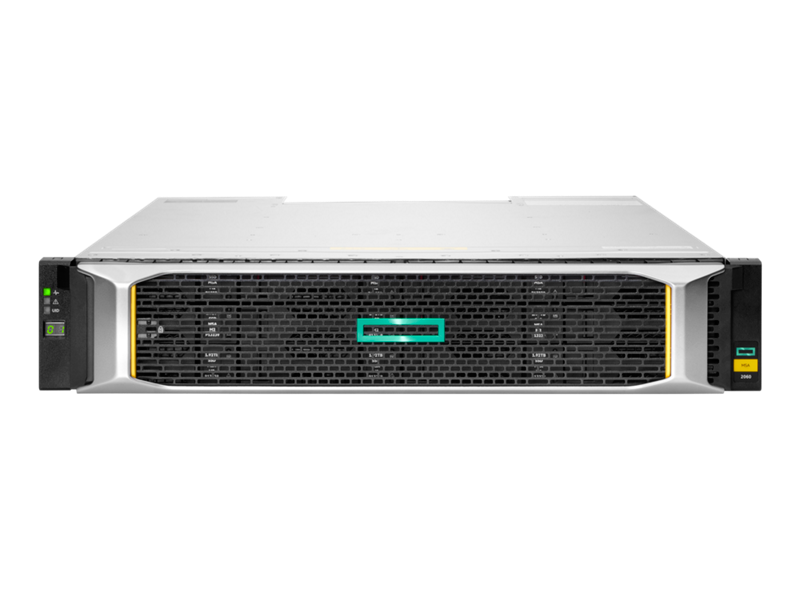

The HPE MSA 2060 10GbE iSCSI LFF Storage is a powerful hybrid storage solution designed for small to mid-sized businesses requiring cost-effective, flash-ready, and high-performance shared storage. With dual 4-port 10/25GbE iSCSI controllers and support for up to 12 LFF drives, this 2U system offers application acceleration of up to 395,000 IOPS and seamless scalability. Its automated tiering, snapshot capabilities, and modular expansion design make it ideal for virtualized workloads, disaster recovery, and secure data management — without the need for a dedicated storage admin.
| Specification | Details |
|---|---|
| SKU | R0Q75B |

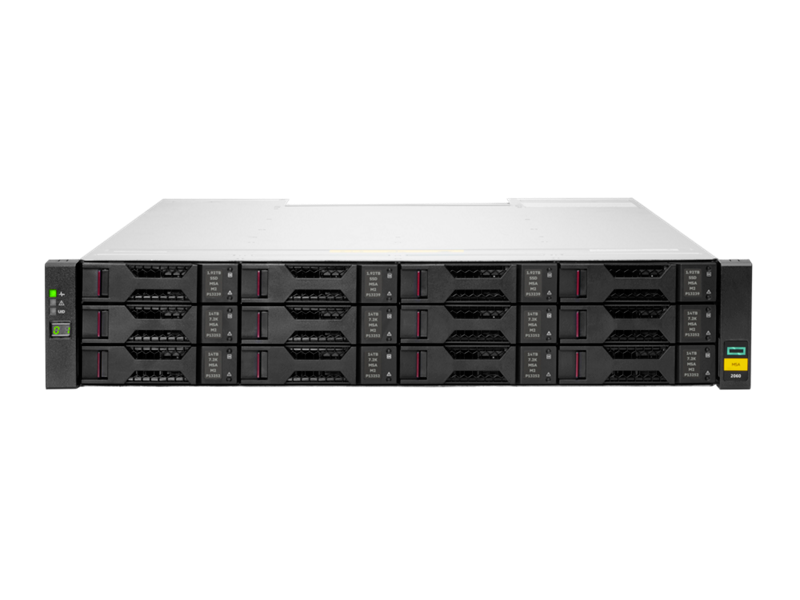

| Drive Description | Up to 12 LFF HDD and/or SSD per array |
| Maximum Capacity | 2400 TB (with LFF expansion); 1898.88 TB (with SFF expansion) |
| Storage Expansion Options | Supports up to 9 total enclosures (SFF and LFF mixed) |
| Host Interface | 8 x 10/25GbE iSCSI (4 ports per controller) |
| Storage Controllers | 2 x MSA 2060 10/25GbE iSCSI Controllers (4 ports each) |
| Form Factor | 2U |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring Support | No |
| System Insight Manager | Not Supported |
| Compatible Operating Systems | Windows Server 2022/2019/2016, VMware vSphere 6.7, RHEL 8, SUSE SLES 15 |
| Dimensions (H x W x D) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Weight | 5 kg (11 lb) |
| Energy Efficiency | Energy Star Compliant |
| Warranty | 3-year limited warranty; parts exchange next business day |
