Description

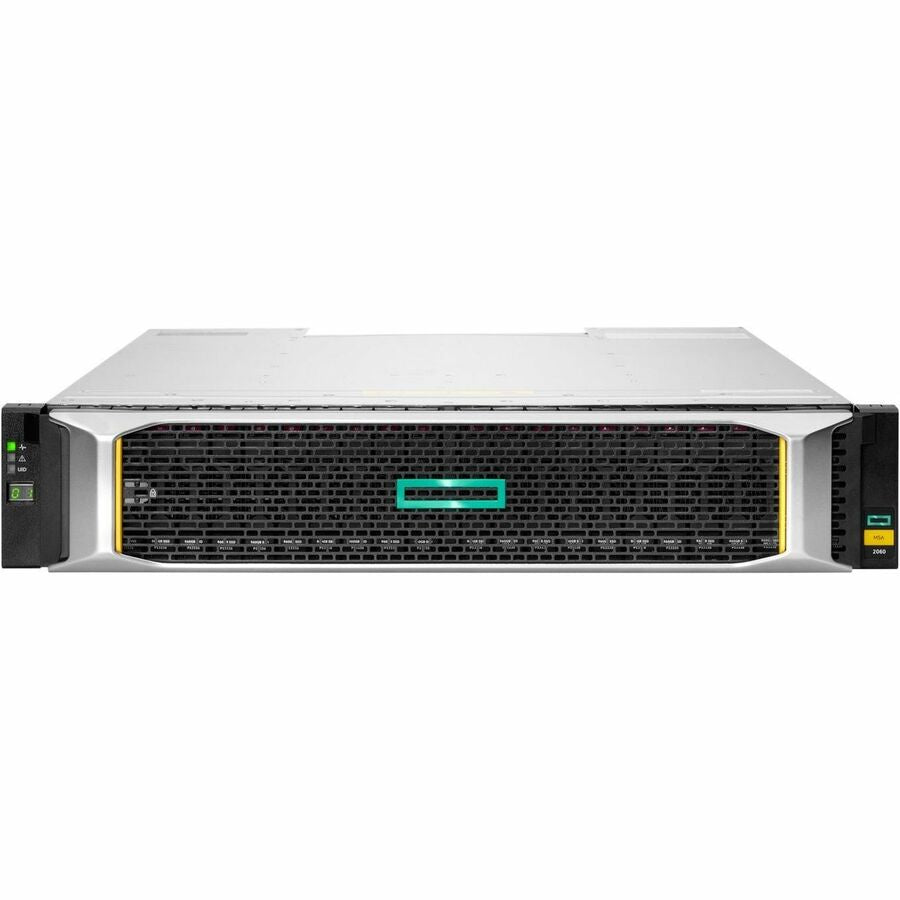

Boost application performance and storage efficiency with the HPE MSA 2060 10GbE iSCSI SFF 23TB Flash Bundle, a powerful and affordable hybrid flash storage solution ideal for small to medium-sized businesses. This Smart Choice bundle includes the MSA 2060 chassis, dual 4-port 10/25GbE iSCSI controllers (8 ports total), and twelve 1.92 TB SAS Read Intensive SFF SSDs, delivering 23 TB of raw flash capacity out of the box.
Engineered for simplicity, the HPE MSA 2060 enables hands-free automation, dynamic tiering, and an intuitive management interface—ensuring high performance (up to 395,000 IOPS), scalability, and robust data protection features. With support for SSDs and SAS drives, it lets you start small and scale up to over 2 PB, adapting to changing storage demands without disruption.
| Specification | Details |
|---|---|
| SKU | S2E40B |
| Product Name | HPE MSA 2060 10GbE iSCSI SFF 23TB Flash Bundle |
| Form Factor | 2U rackmount |
| Included Drives | 12x 1.92 TB SAS Read Intensive SFF SSD (Total: 23 TB raw capacity) |
| Controller Configuration | Dual controllers, each with 4x 10/25GbE iSCSI ports (8 ports total) |
| Expansion Capability | Supports up to 9 expansion enclosures (10 total including base array) |
| Max Raw Capacity | Up to 1,774.08 TB (SFF only); up to 2,275.20 TB (SFF + LFF) |
| IOPS Performance | Up to 395,000 IOPS |
| Operating Systems Support | Windows Server 2022/2019/2016, VMWare vSphere 6.7, Red Hat Linux 8, SuSE SLES 15 |
| Data Protection | Virtualized snapshots, remote replication via FC or iSCSI |
| Security | Supports encrypted SSDs and HDDs with local key management |
| Product Dimensions (W x D x H) | 44.5 x 50.8 x 8.9 cm |
| Weight | 5 kg |
| Warranty | 3-year limited warranty with parts exchange (next business day) |
