Description

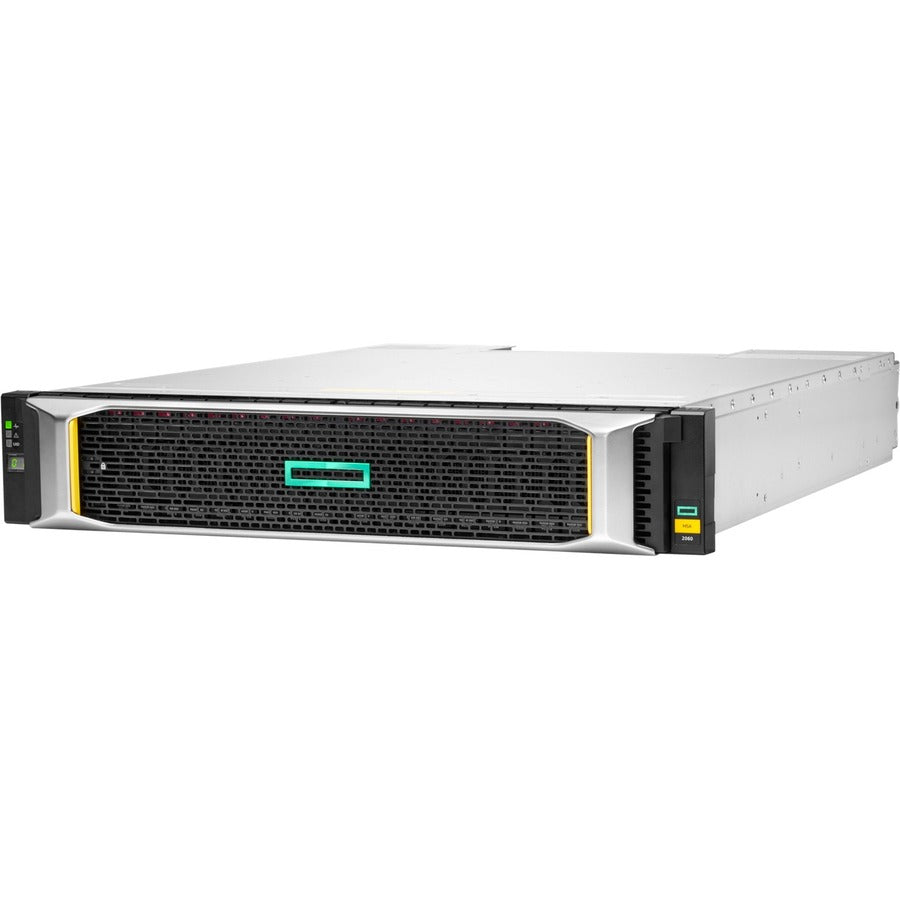

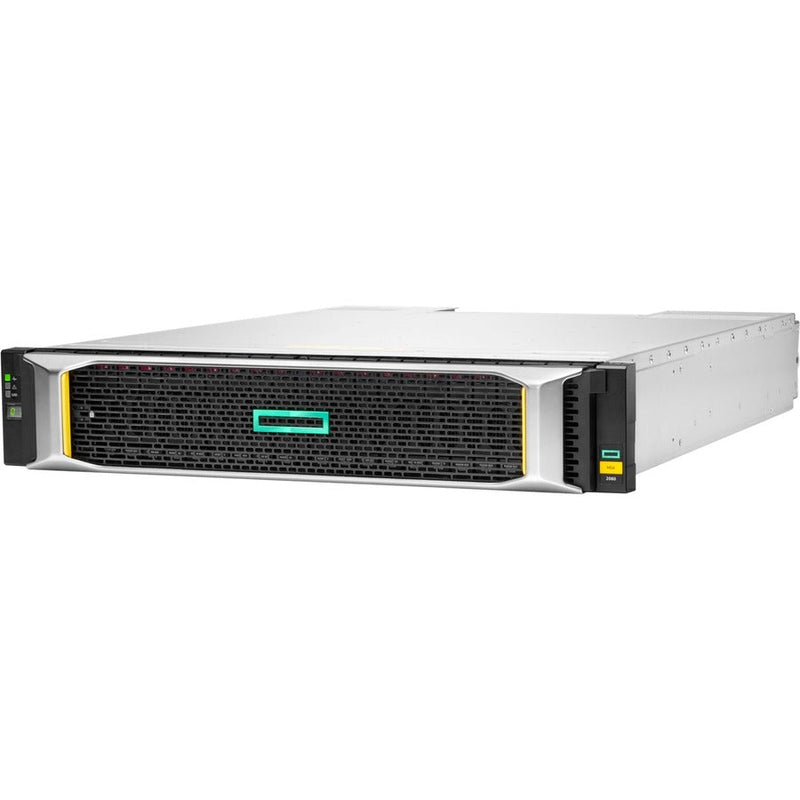

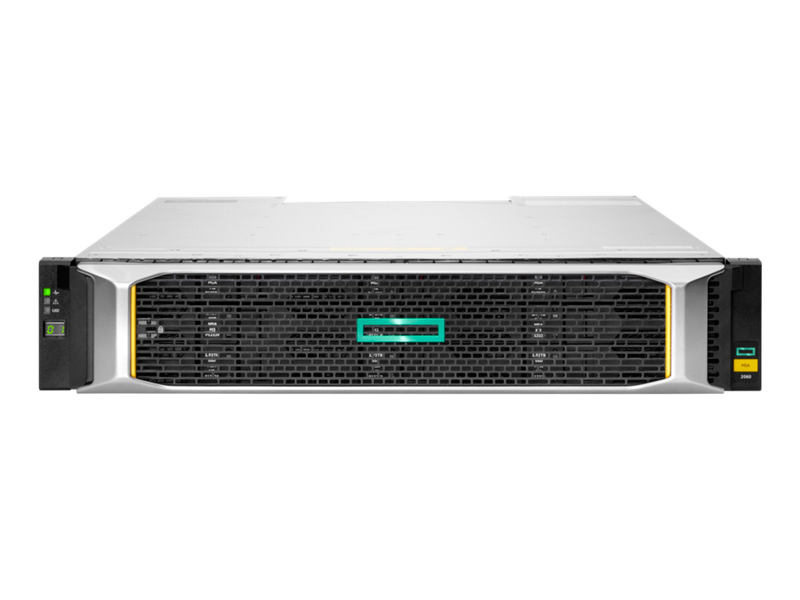

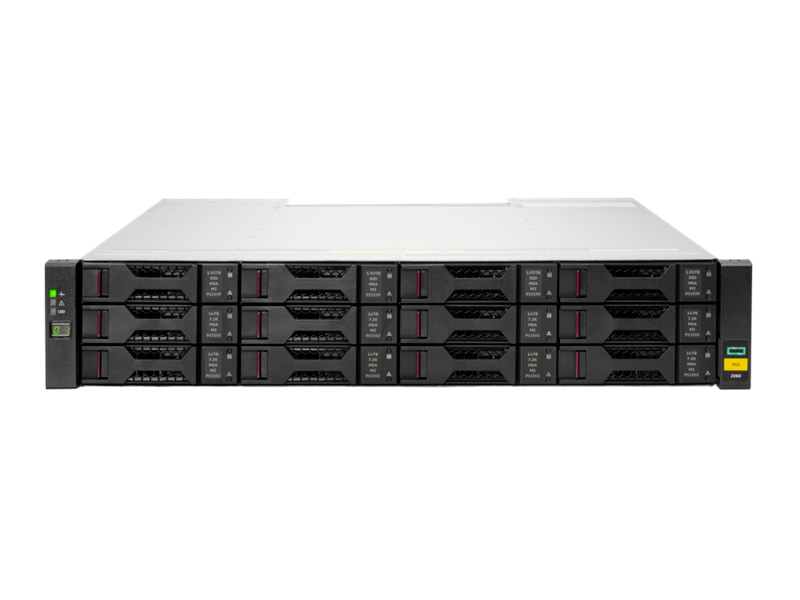

The HPE MSA 2060 12Gb SAS LFF Storage is a powerful, flash-ready hybrid storage array designed to deliver affordable application acceleration for small and remote office deployments. Built for simplicity and performance, it supports up to 12 LFF HDDs/SSDs per array and can scale with additional enclosures to meet growing data needs.
Featuring (2) 4-port 12Gb SAS controllers and offering up to 2400 TB capacity with maximum expansion, the MSA 2060 brings enterprise-level speed and resiliency within reach. With up to 395,000 IOPS performance, automated tiering, remote replication, and strong encryption, it enables high-efficiency workloads with minimal administration.
Whether starting small or scaling over time, the HPE MSA 2060 ensures data availability, security, and cost-efficiency for today’s dynamic IT environments.
| Specification | Details |
|---|---|
| Product Number | R0Q77B |
| Drive Description | Up to 12 LFF HDD and/or SSD per array |
| Maximum Capacity | 1898.88 TB (SFF expansion) / 2400 TB (LFF expansion) |
| Expansion Options | Up to 9 expansion enclosures (LFF or SFF) |
| Host Interface | 8-port 12Gb SAS (4 ports per controller) |
| Storage Controller | (2) HPE MSA 2060 12Gb SAS Controllers with 4 ports each |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring Support | No |
| Systems Insight Manager | No |
| Form Factor | 2U rackmount |
| Dimensions (W x D x H) | 44.5 x 50.8 x 8.9 cm (17.5 x 20.0 x 3.5 in) |
| Weight | 5 kg (11 lb) |
| Host Connectivity Options | 16Gb FC, 10/25GbE iSCSI, 10GBase-T iSCSI, or 12Gb SAS (model dependent) |
| Compatible OS | Windows Server 2022/2019/2016, VMWare vSphere 6.7, Red Hat Linux 8, SLES 15 |
| Energy Efficiency | Energy Star Compliant |
| Warranty | 3-year limited warranty, next business day parts exchange |
