Description

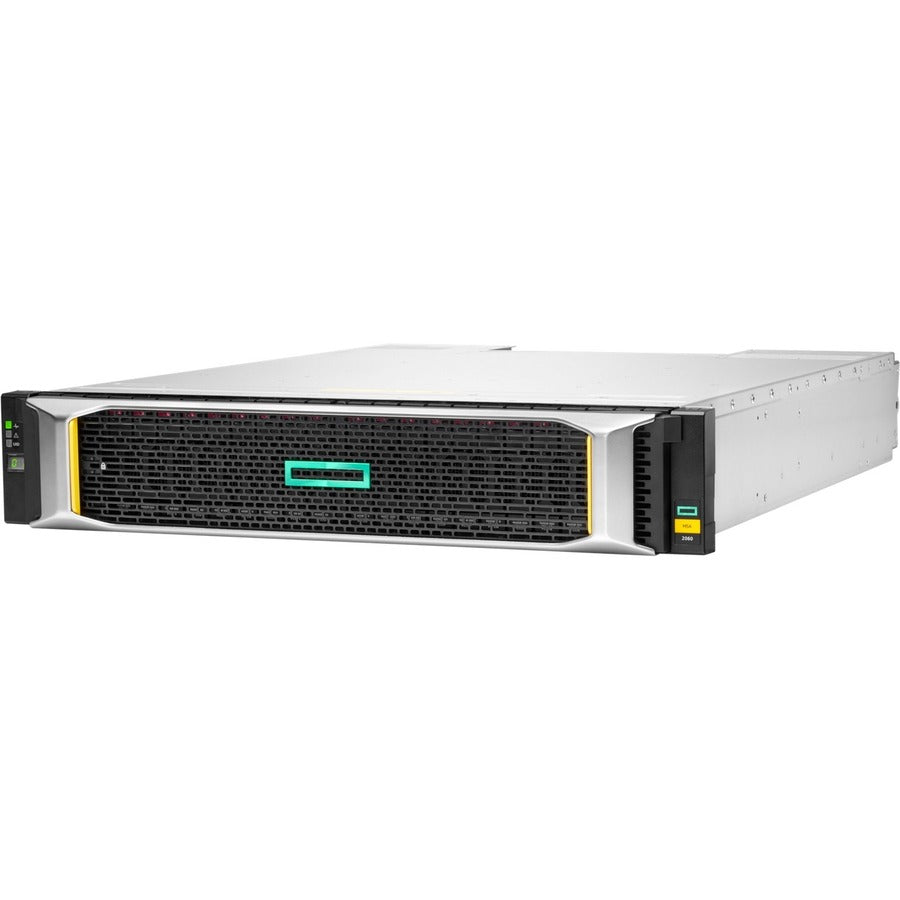

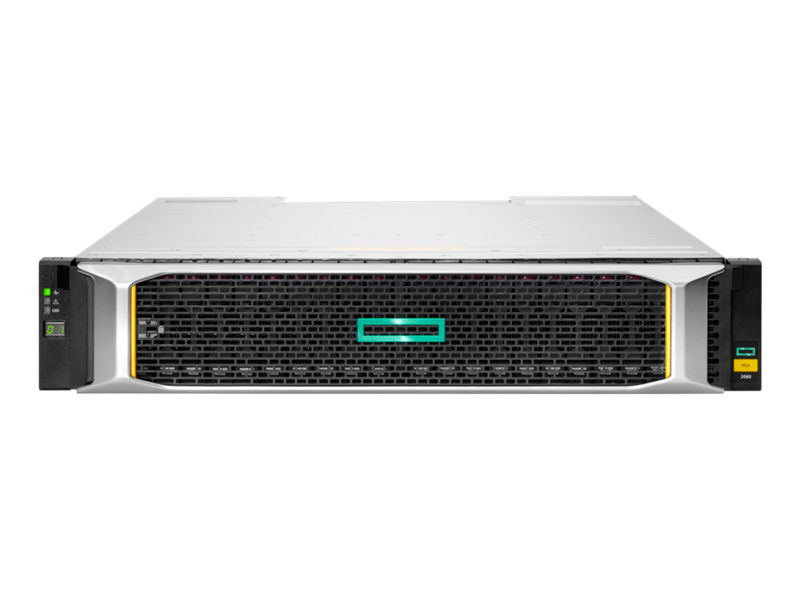

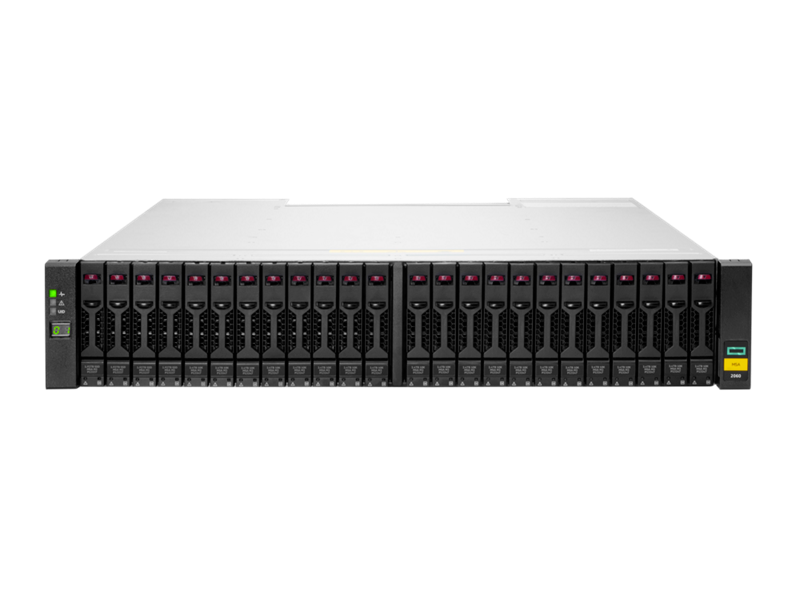

The HPE MSA 2060 12Gb SAS SFF TAA-compliant Storage (R9G41B) delivers affordable high-performance storage ideal for small to medium-sized businesses and remote offices. Featuring a 2U small form factor chassis with dual 12Gb SAS controllers and six factory-installed 2.4TB 10K TAA/SED SFF hard drives, this system enables fast application acceleration, data protection, and secure hybrid storage.
With advanced data services like automated tiering, virtualization-based snapshots, and support for a wide range of operating systems, the HPE MSA 2060 is designed for simplicity, scalability, and reliability. This flash-ready platform supports up to 576 TB with SFF expansion or 1.35 PB with LFF expansion, ensuring seamless growth for demanding workloads.
| Specification | Details |
|---|---|
| Product Number | R9G41B |
| Drive Configuration | 6x 2.4 TB 10K TAA/SED SFF HDD (supports up to 24 SFF drives per array) |
| Maximum Capacity | 576 TB (SFF expansion) / 1353.6 TB (LFF expansion) |
| Storage Controller | 2x 12Gb SAS controllers, 4 ports per controller (8 ports total) |
| Host Interface | 8-port 12Gb SAS (4 per controller) |
| Form Factor | 2U |
| Expansion Options | Up to 9 expansion enclosures (SFF or LFF combinations) |
| Operating System Compatibility | Windows Server 2022/2019/2016, VMWare vSphere 6.7, Red Hat Linux 8, SUSE SLES 15 |
| Clustering Support | Yes |
| Storage Mirroring Support | No |
| SAN Backup Support | Yes |
| Systems Insight Manager | No |
| Weight | 5 kg (11 lbs) |
| Dimensions (HxWxD) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Energy Efficiency | Energy Star Compliant |
| Warranty | 3-year limited warranty, next business day parts exchange |
