Description

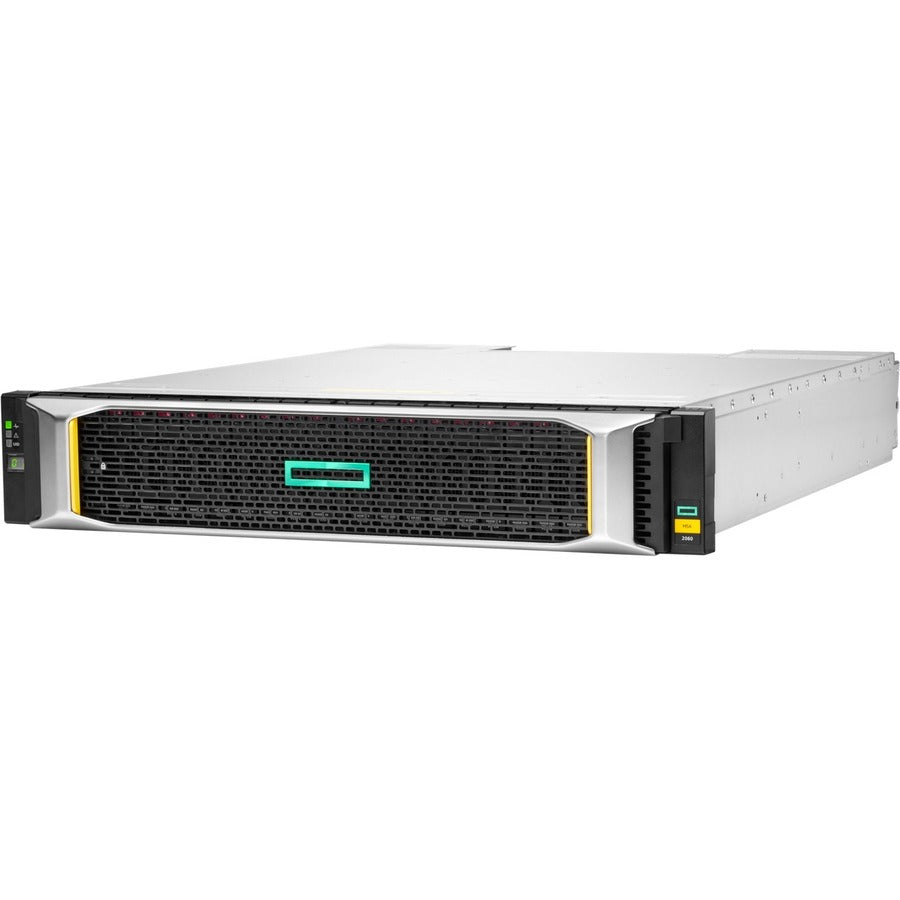

The HPE MSA 2060 12Gb SAS SFF Storage delivers a powerful combination of affordability, performance, and simplicity for small to medium-sized businesses. This hybrid-flash storage array includes dual 4-port 12Gb SAS controllers and supports up to 24 SFF drives per chassis with scalable expansion up to 10 enclosures total.
With support for up to 395,000 IOPS and advanced features such as automated tiering, snapshots, remote replication, and intuitive management tools, the MSA 2060 is designed for hands-off performance in demanding environments. Start small and expand with SFF or LFF enclosures as your business grows, all while benefiting from strong data protection and flexible connectivity.
| Specification | Details |
|---|---|
| Product Number | R0Q78B |
| Drive Description | Up to 24 SFF HDD and/or SSD per array |
| Maximum Capacity | 1843.2 TB (SFF) / 2344.32 TB (LFF with expansion) |
| Storage Expansion Options | Up to 9 additional enclosures (SFF or LFF) |
| Host Interface | 8-port 12Gb SAS (4 ports per controller) |
| Storage Controllers | 2x HPE MSA 2060 12Gb SAS Controllers (4 ports each) |
| Form Factor | 2U |
| Dimensions (H x W x D) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Weight | 5 kg (11 lb) |
| Operating Systems Support | Windows Server 2022/2019/2016, VMWare vSphere 6.7, Red Hat Linux 8, SuSE 15 |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring Support | No |
| Insight Manager Support | No |
| Energy Efficiency | Energy Star Compliant |
| Detailed Description | HPE MSA 2060 SFF chassis with dual 4-port 12Gb SAS controllers |
| Warranty | 3-year limited, next-business-day parts exchange |
