Description

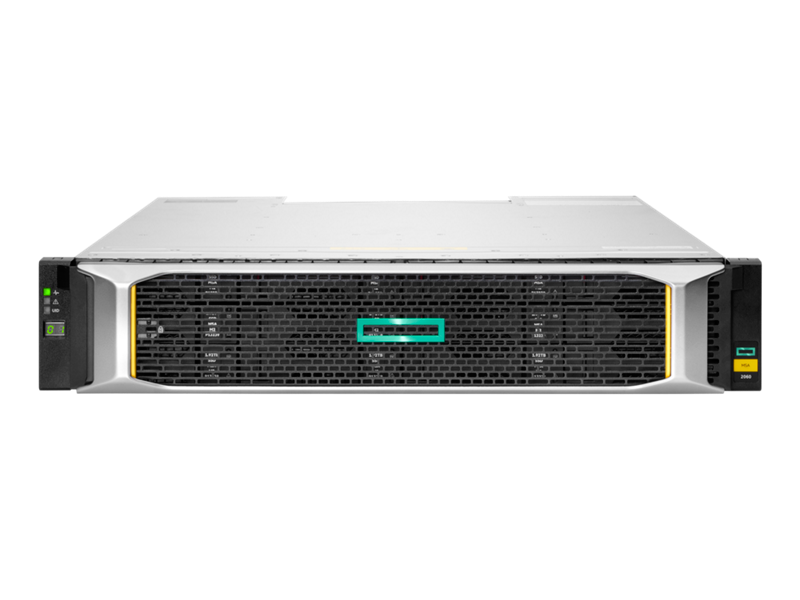

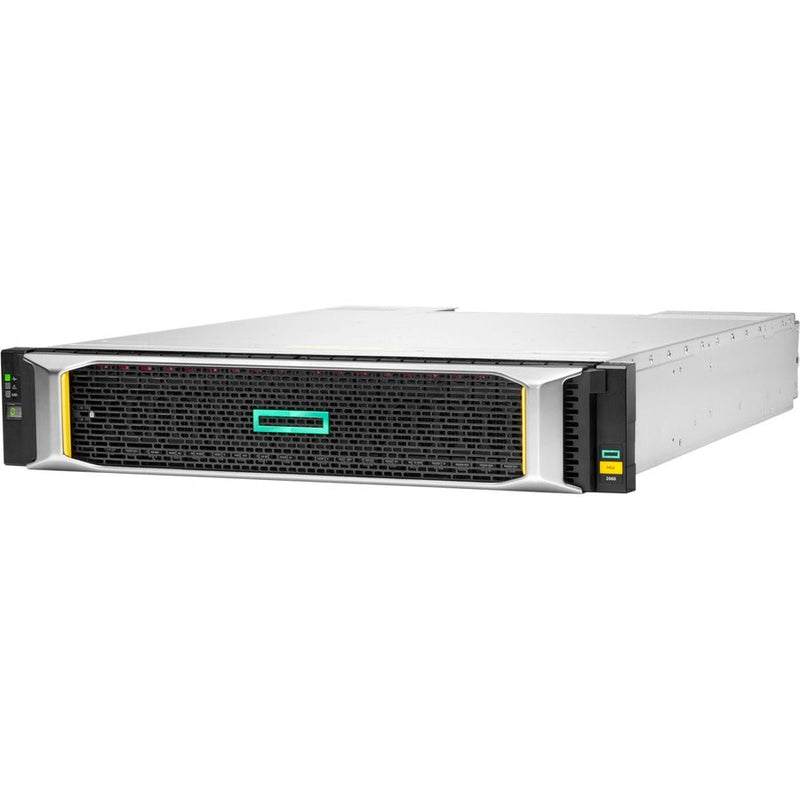

The HPE MSA 2060 16Gb Fibre Channel LFF Storage (R0Q73B) is an affordable, high-performance, and flash-ready hybrid storage solution built for small to medium-sized businesses and remote offices. Designed with simplicity, flexibility, and scalability in mind, it supports up to 12 large form factor (LFF) drives per chassis and scales with both SFF and LFF expansion enclosures for up to 2.4 PB total capacity. Delivering up to 395,000 IOPS, the HPE MSA 2060 accelerates demanding applications while ensuring business continuity through snapshot technology and optional remote replication. With dual 16Gb Fibre Channel controllers, it’s optimized for performance and uptime in clustered environments.
| Specification | Details |
|---|---|
| Product Number | R0Q73B |
| Drive Description | Up to 12 LFF HDD and/or SSD per array model |
| Maximum Capacity | Up to 2400 TB with LFF expansion / 1898.88 TB with SFF expansion |
| Host Interface | 8 x 16 Gb Fibre Channel ports (4 per controller) |
| Storage Controller | Dual 4-port HPE MSA 2060 16Gb FC controllers |
| Expansion Options | Up to 9 enclosures (SFF and/or LFF drive enclosures) |
| Form Factor | 2U |
| Dimensions (H x W x D) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Weight | 5 kg (11 lb) |
| Operating Systems | Windows Server 2022/2019/2016, VMware vSphere 6.7, Red Hat Linux 8, SuSE SLES 15 |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring Support | No |
| Systems Insight Manager Support | No |
| Energy Efficiency | ENERGY STAR® Compliant |
| Warranty | 3-year limited warranty, next business day parts exchange |
