Description

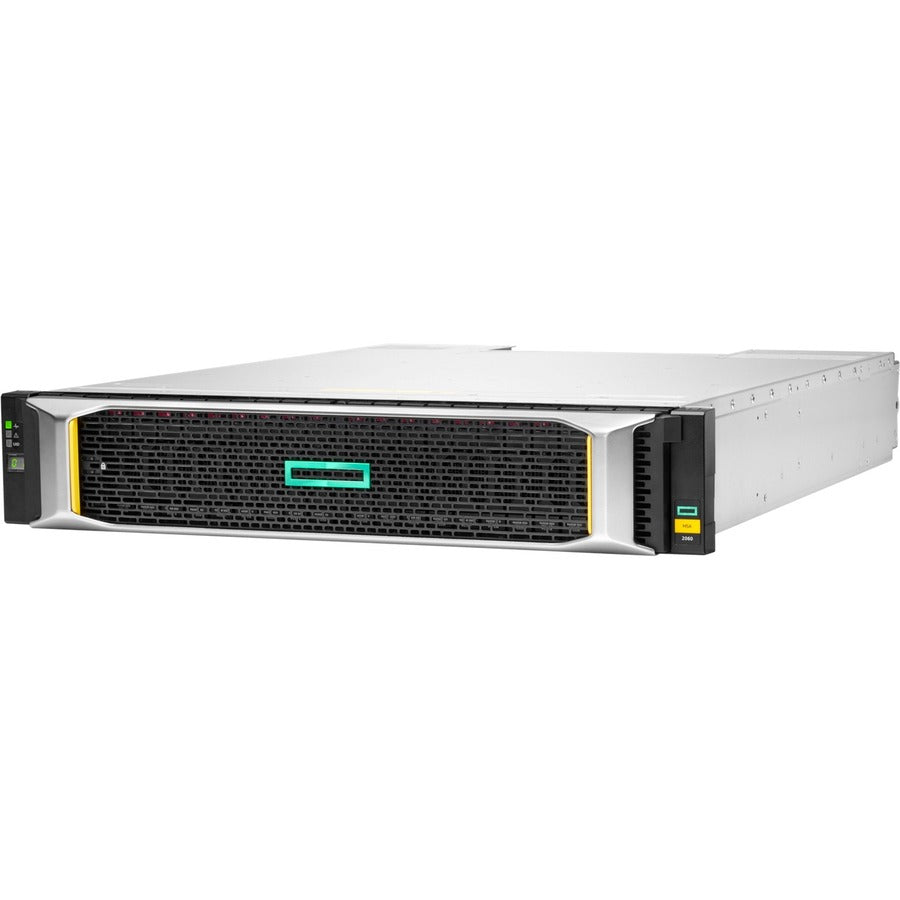

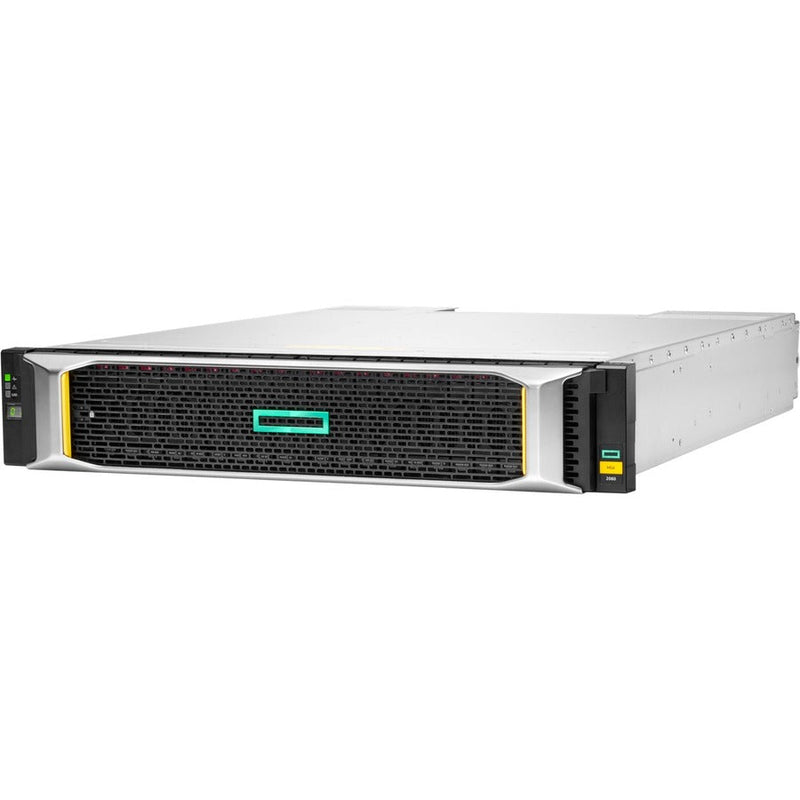

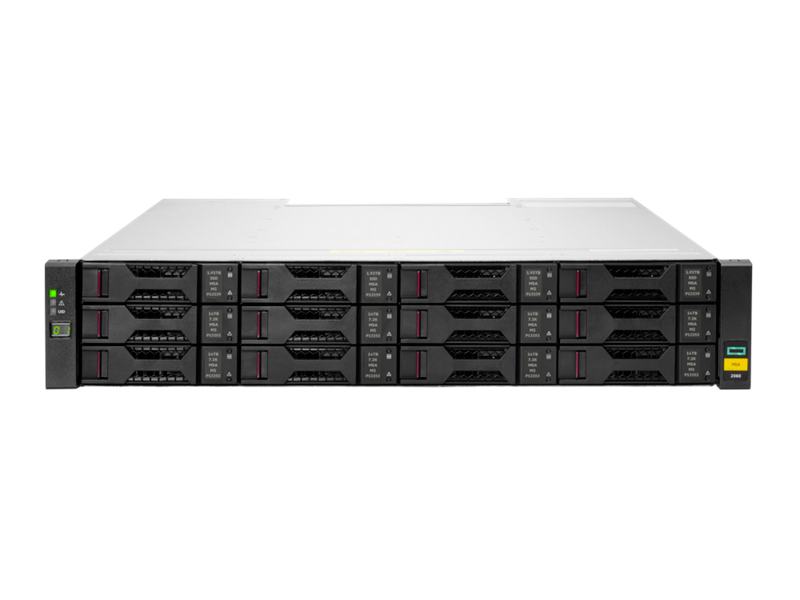

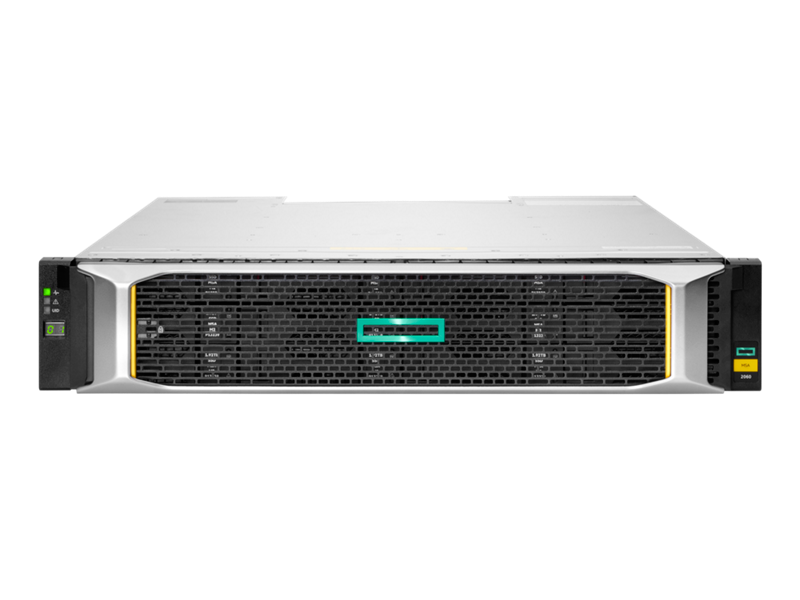

The HPE MSA 2060 16Gb Fibre Channel LFF TAA-compliant Storage (R9G39B) is a powerful, hybrid storage system tailored for small to medium-sized businesses seeking a high-performance, cost-effective storage solution. Bundled with (6) 12 TB 7.2K LFF TAA/SED compliant drives and (2) 4-port 16Gb Fibre Channel controllers, this 2U unit delivers up to 395,000 IOPS—ideal for demanding workloads and virtualized environments.
With support for hybrid configurations, automated tiering, virtualized snapshots, remote replication, and a simplified management interface, the HPE MSA 2060 is built for resilience, performance, and effortless scalability. Expand up to 1440 TB with LFF enclosures or 662.4 TB with SFF expansion.
| Specification | Details |
|---|---|
| SKU | R9G39B |
| Drive Configuration | (6) x 12 TB 7.2K TAA/SED LFF HDD included |
| Max Drives Supported | Up to 12 LFF drives in chassis + 9 expansion enclosures |
| Raw Capacity | 662.4 TB (SFF) / 1440 TB (LFF) with full expansion |
| Host Interface | 8 x 16Gb Fibre Channel (4 per controller) |
| Storage Controllers | (2) HPE MSA 2060 16Gb FC controllers (4-ports each) |
| Form Factor | 2U |
| Dimensions (HxWxD) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Weight | 5 kg (11 lb) |
| Energy Efficiency | Energy Star Compliant |
| Expansion Options | Supports SFF/LFF enclosures (up to 9), mix of SSDs/SAS HDDs |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring | No |
| Systems Insight Manager | No |
| Compatible OS | Windows Server 2022/2019/2016, VMware vSphere 6.7, Red Hat 8, SuSE SLES 15 |
| Host Connectivity | 16Gb FC, 10/25GbE iSCSI, 10GBase-T iSCSI, or 12Gb SAS (per model) |
| Warranty | 3-Year limited warranty, next-business-day parts exchange |
