Description

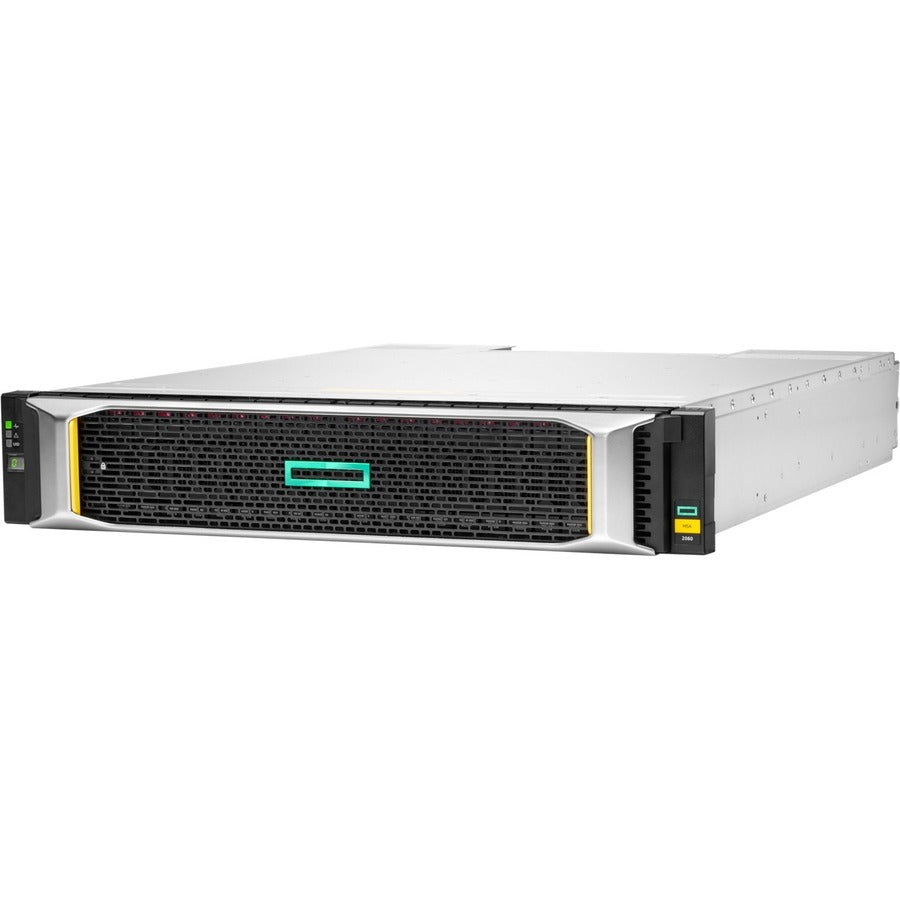

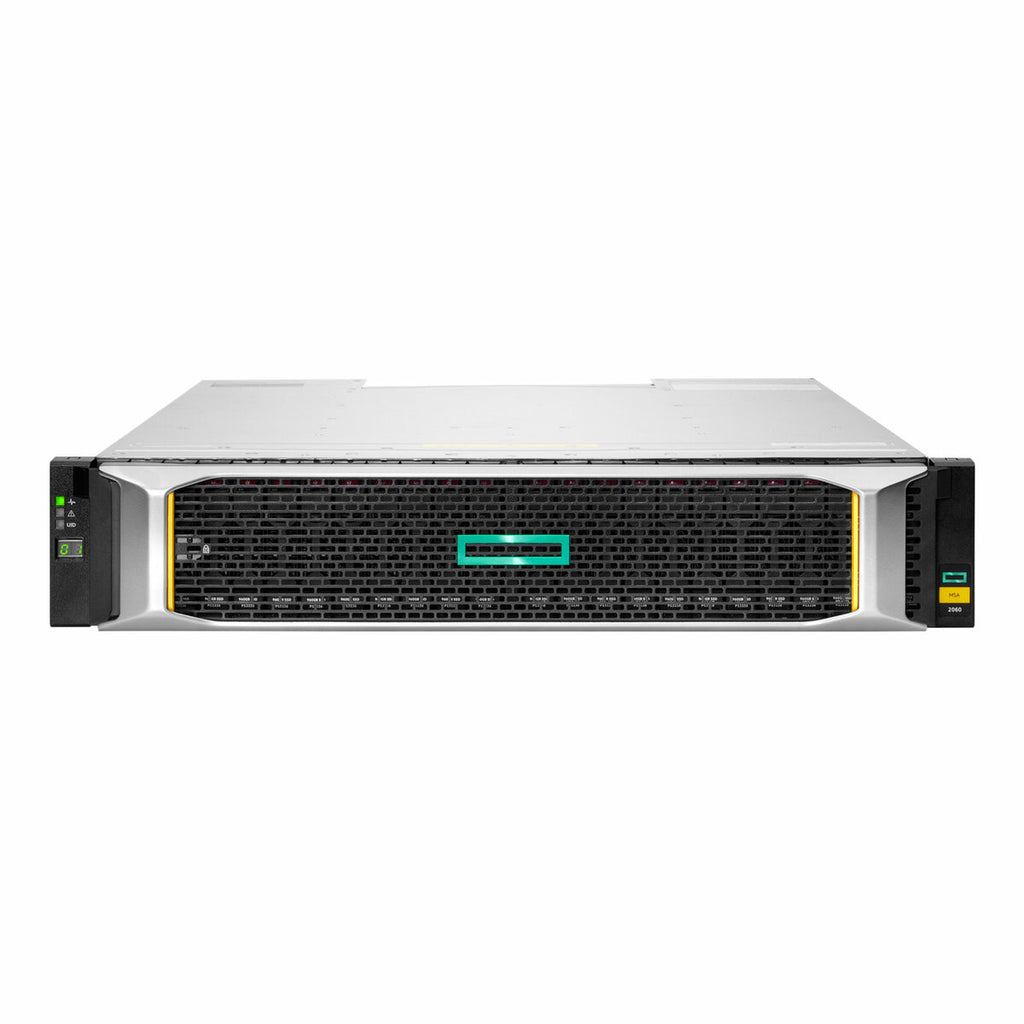

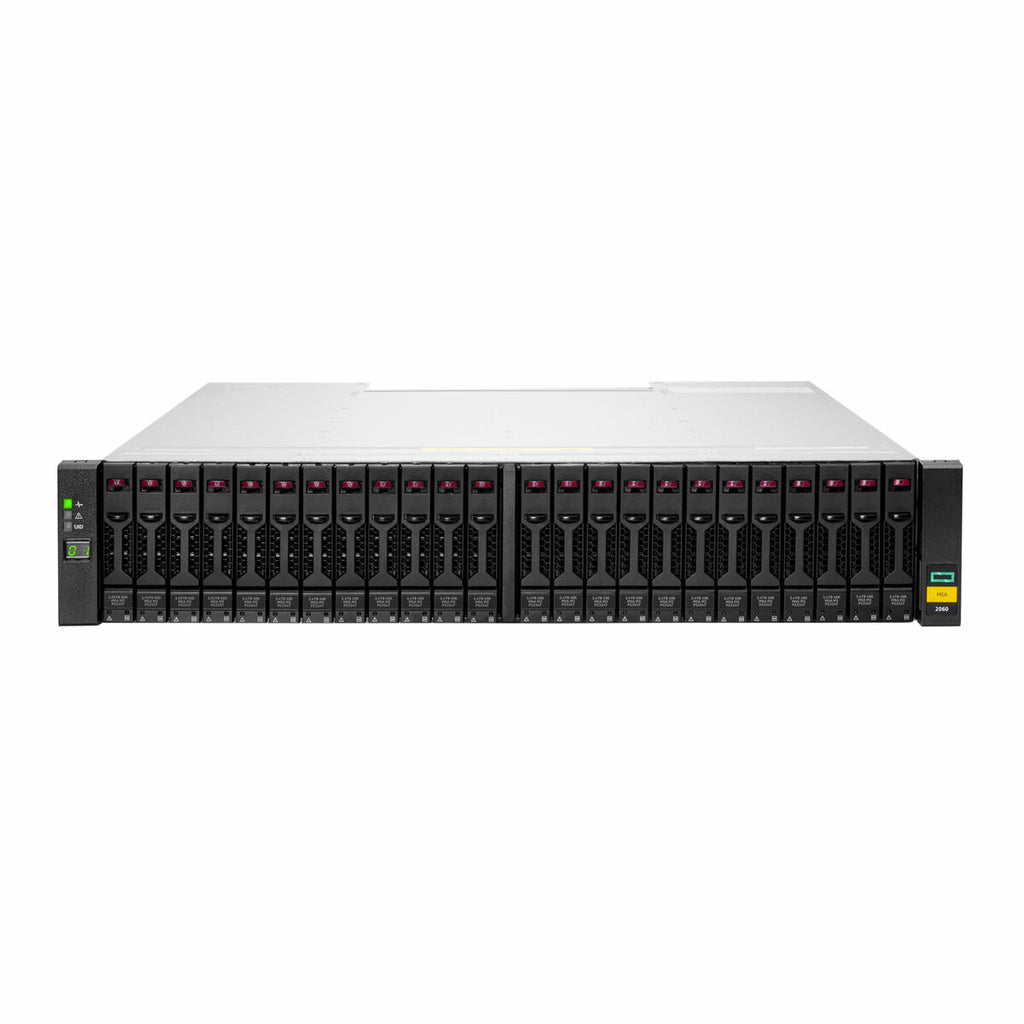

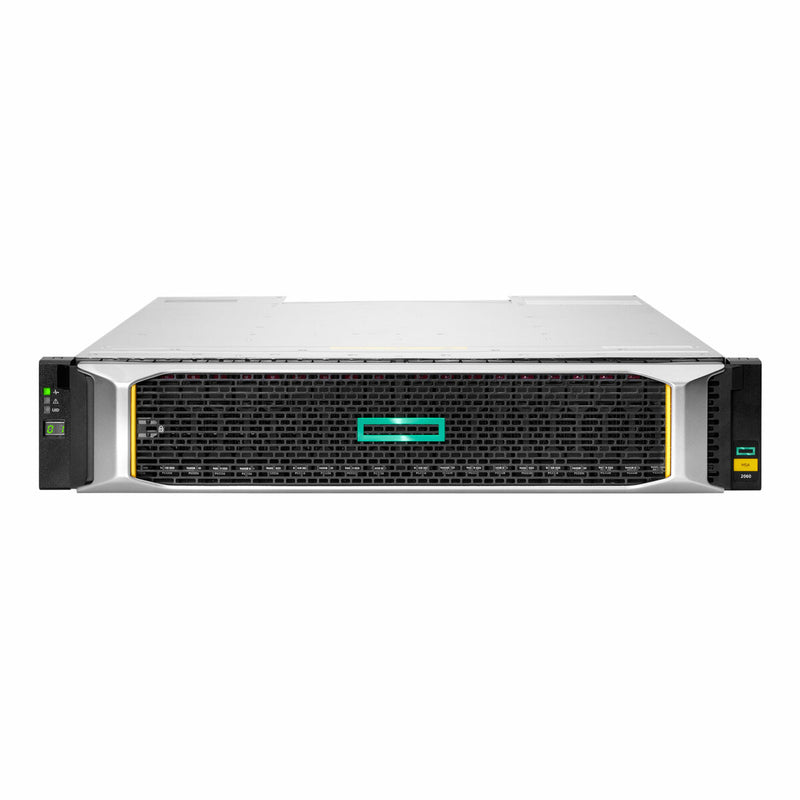

The HPE MSA 2060 16Gb Fibre Channel SFF Storage (R0Q74B) is a high-performance, flash-ready hybrid storage array built for small and remote office deployments. It combines ease of use, flexibility, and enterprise-grade features in a compact 2U form factor. With support for SSDs, Enterprise SAS, and Midline SAS drives, the MSA 2060 delivers up to 395,000 IOPS, making it up to 80% faster than the previous generation.
This model includes dual FC controllers (4 ports each), supports up to 24 SFF drives per array, and scales to over 7.3 PB with expansion enclosures. HPE’s automated tiering and snapshot technologies ensure optimal performance and continuous data protection—without the need for a dedicated storage administrator. Whether you’re accelerating workloads or implementing affordable disaster recovery, the MSA 2060 provides a smart, scalable storage solution.
| Specification | Details |
|---|---|
| Model Number | R0Q74B |
| Storage Type | Hybrid Flash-Ready Array |
| Form Factor | 2U Rackmount |
| Drive Support | Up to 24 x 2.5" SFF SSD/HDD per array |
| Expansion Support | Up to 9 expansion enclosures (SFF or LFF) |
| Maximum Capacity | 1843.2 TB (SFF) / 2344.32 TB (LFF) with max expansion |
| Storage Controller | Dual HPE MSA 2060 16Gb FC controllers (4 FC ports each) |
| Host Interface | 8 x 16Gb Fibre Channel |
| Data Protection Features | Virtualized snapshots, remote replication (FC/iSCSI), encrypted drives |
| Performance | Up to 395,000 IOPS |
| Management | HPE MSA Storage Management Utility |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Insight Manager Support | No |
| Storage Mirroring | Not supported |
