Description

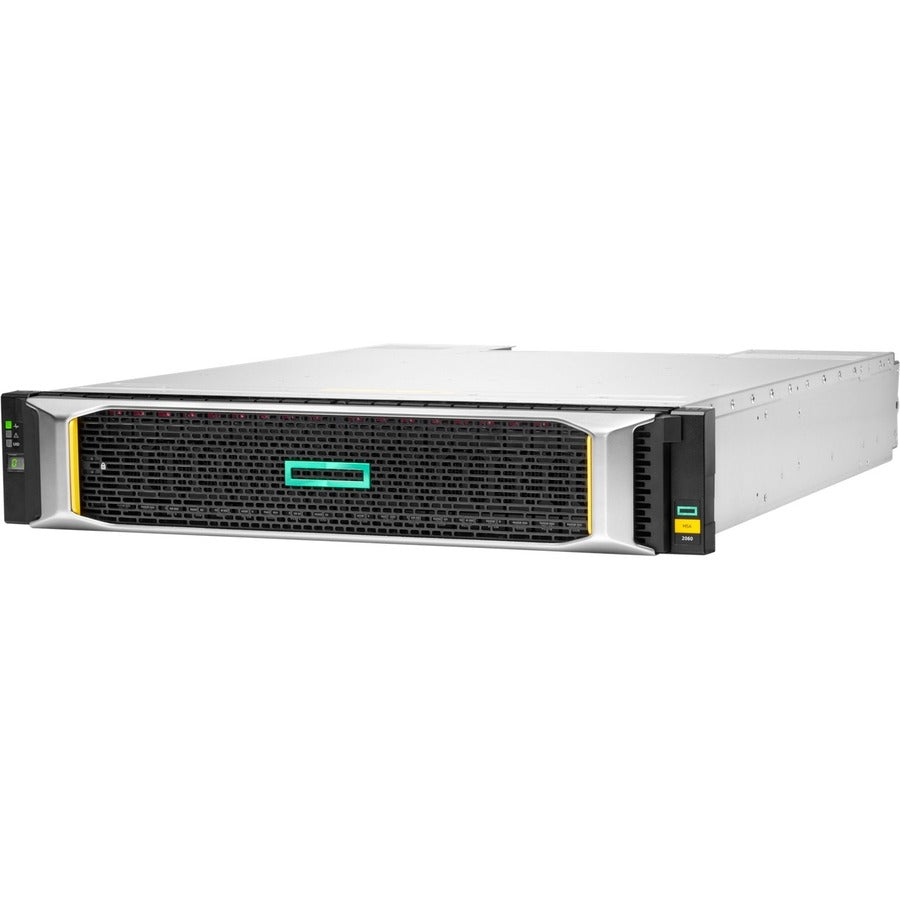

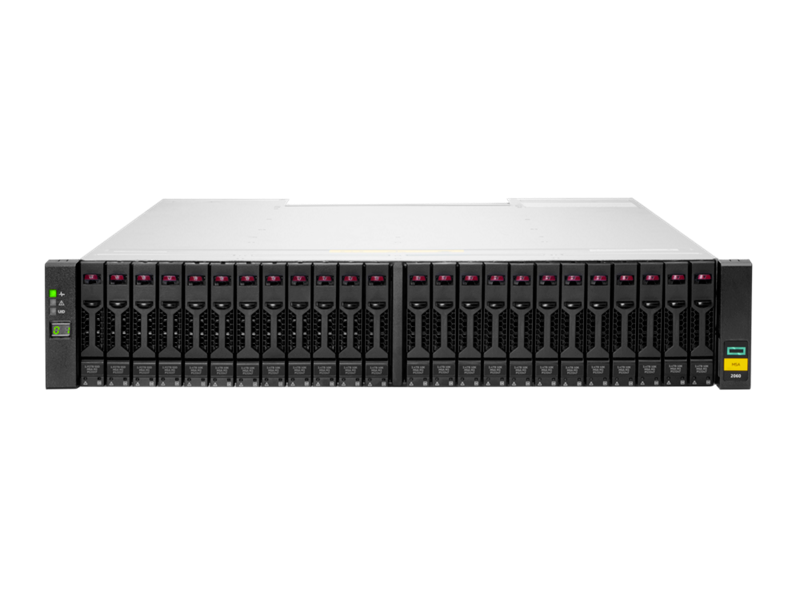

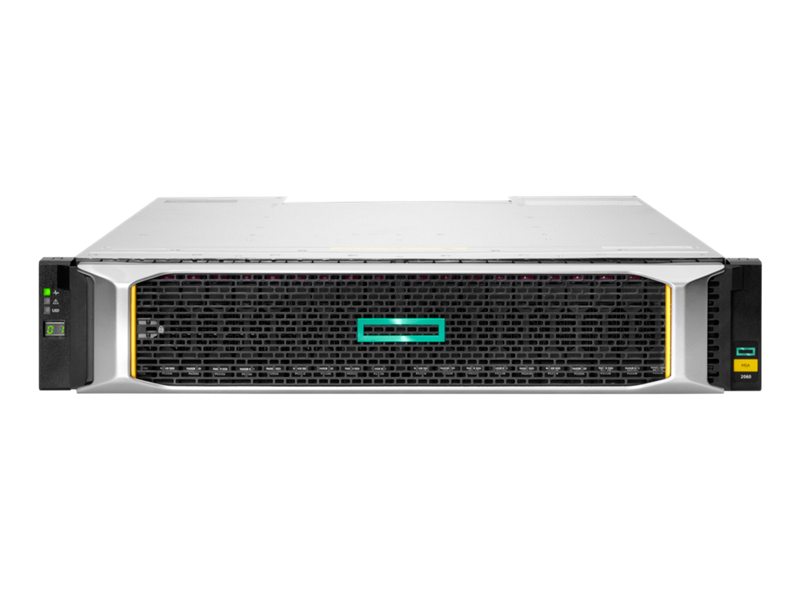

The HPE MSA 2060 16Gb Fibre Channel SFF TAA-compliant Storage delivers a powerful yet cost-effective shared storage solution designed for small to remote office deployments. Built with a small form factor chassis, this model comes preconfigured with (2) 4-port 16 Gb Fibre Channel controllers and (6) 2.4 TB 10K SFF TAA/SED-compliant hard drives.
Offering a flexible, modular architecture, the MSA 2060 can scale with your needs—supporting hybrid or flash storage configurations, automated tiering, remote replication, and encrypted media. With performance up to 395,000 IOPS and seamless integration with major operating systems, it’s a smart investment for growing businesses seeking efficiency, simplicity, and enterprise-grade features at entry-level pricing.
| Specification | Details |
|---|---|
| Model Number | R9G38B |
| Form Factor | 2U |
| Drive Description | Includes 6x 2.4 TB 10K SFF TAA/SED HDD (up to 18 more drives supported) |
| Storage Capacity | 576 TB (with SFF expansion) / 1353.6 TB (with LFF expansion) |
| Expansion Options | Supports up to 9 expansion enclosures (SFF/LFF mix) |
| Host Interface | 8 x 16 Gb Fibre Channel (4 ports per controller) |
| Controllers | 2 x HPE MSA 2060 16Gb FC controllers (4 ports each) |
| Performance | Up to 395,000 IOPS |
| Clustering Support | Yes |
| Backup Support | Yes (via FC or iSCSI remote replication) |
| Storage Mirroring | Not supported |
| Management Tools | MSA Storage Management Utility, automated tiering engine |
| OS Compatibility | Windows Server 2022/2019/2016, VMware vSphere 6.7, Red Hat Linux 8, SuSE 15 |
| Dimensions (H x W x D) | 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in) |
| Weight | 5 kg (11 lb) |
| Energy Efficiency | Energy Star Compliant |
| Warranty | 3-year limited warranty, next business day parts exchange |
