Description

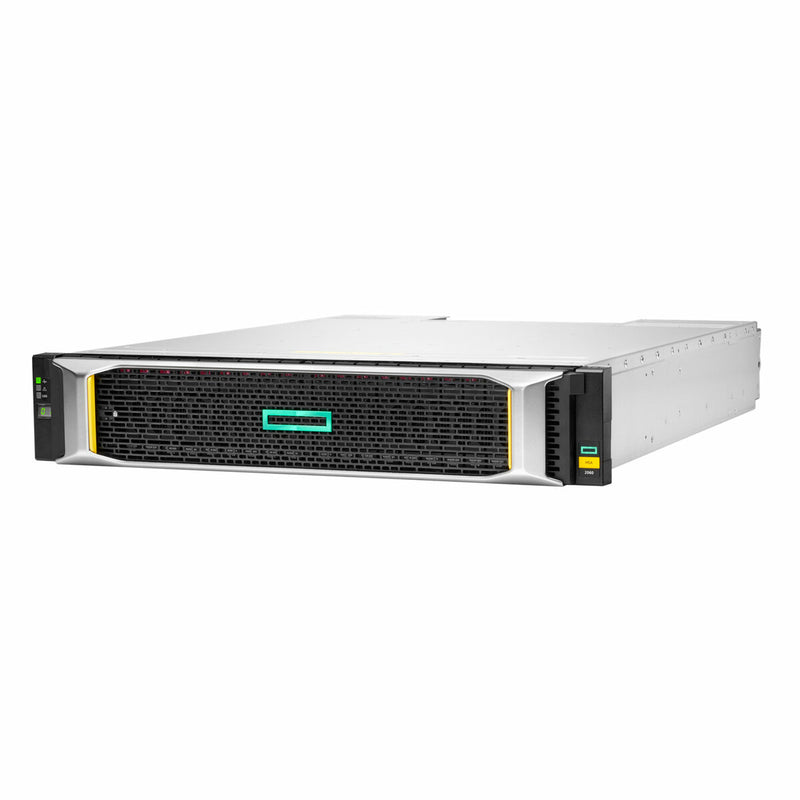

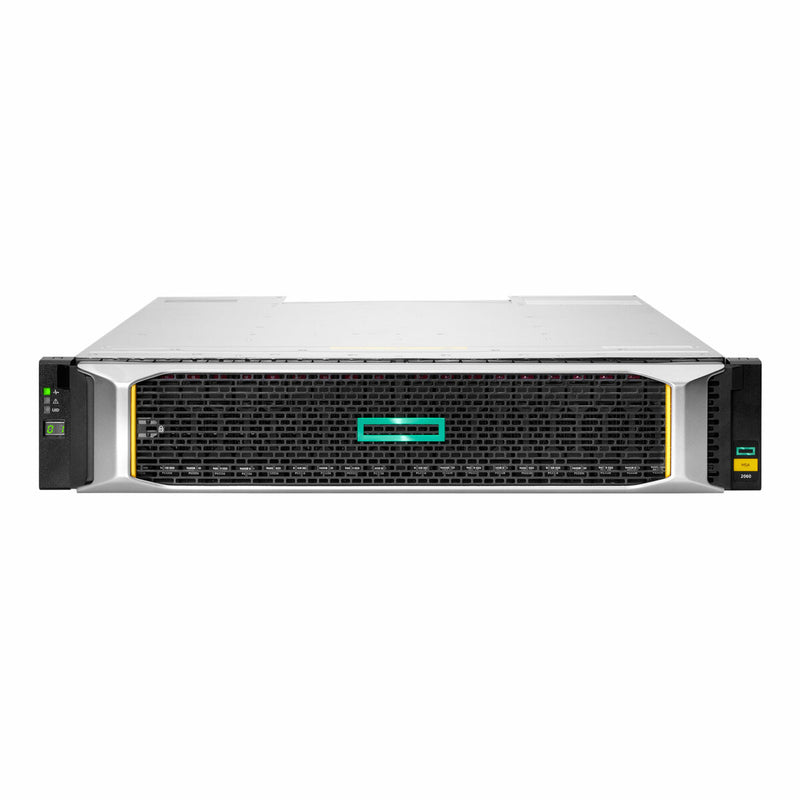

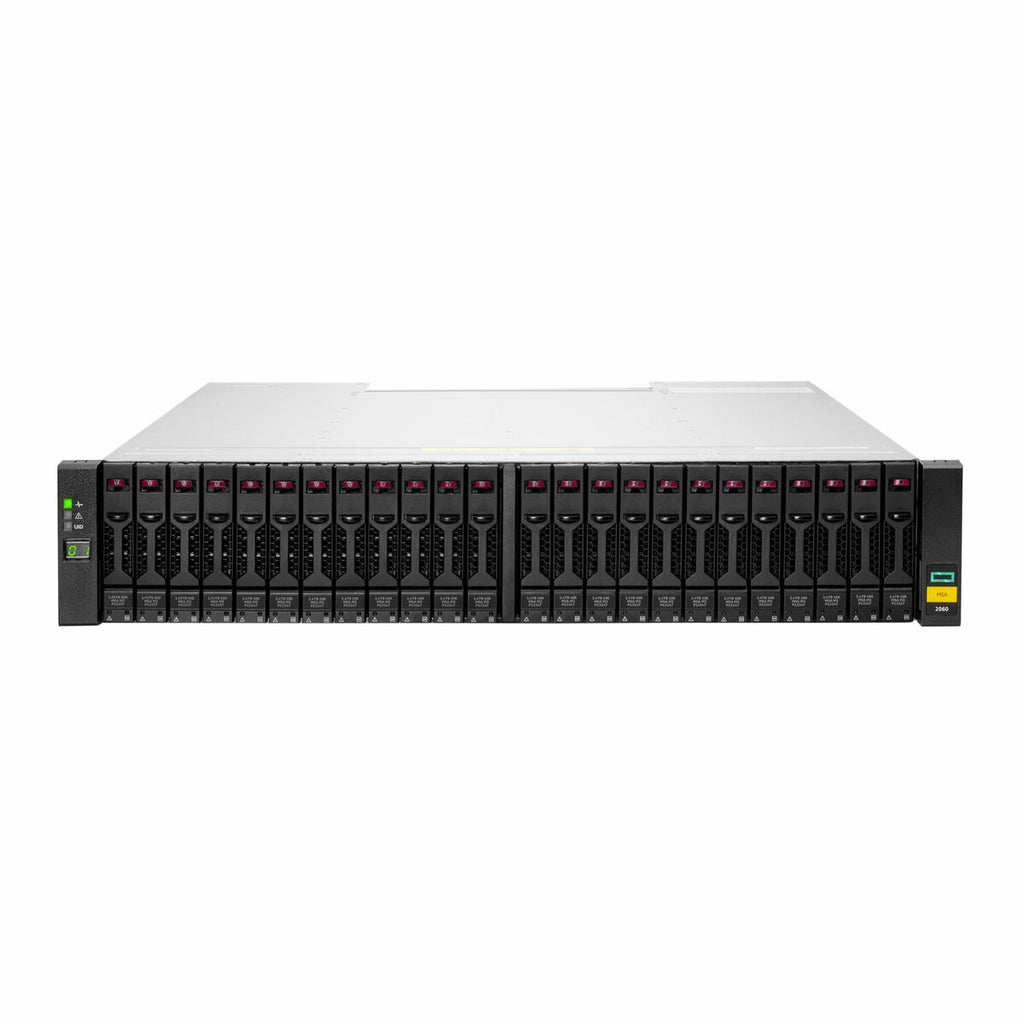

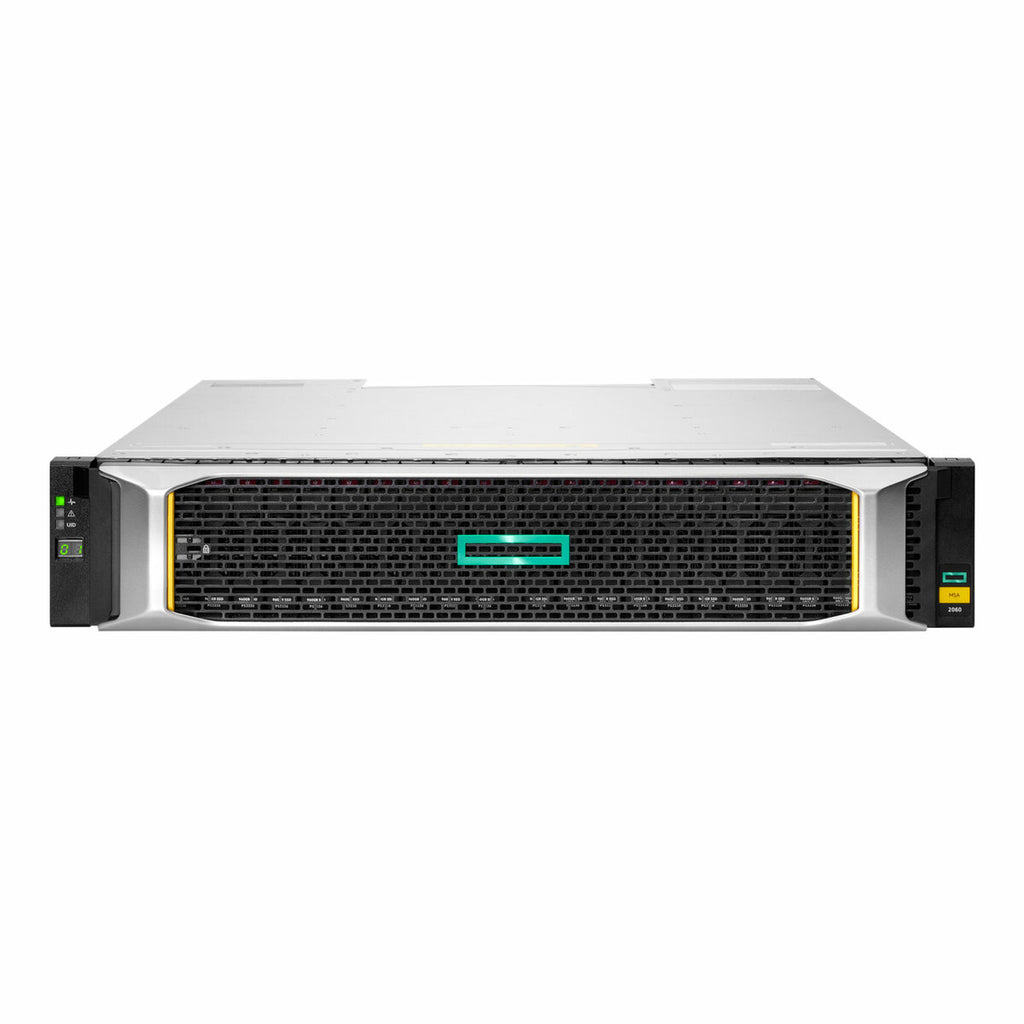

The HPE Modular Smart Array 2062 (R0Q84B) is a high-performance, flash-enabled shared storage system designed for small to medium-sized businesses seeking affordable application acceleration. Equipped with dual 1.92TB SSDs (totaling 3.84TB) and two 12Gb SAS controllers, this 2U rack-mountable array delivers up to 395,000 IOPS performance, offering outstanding value with built-in data protection, tiering, and disaster recovery features.
Ideal for budget-conscious IT environments, the MSA 2062 simplifies storage management with its intuitive interface and ‘set it and forget it’ operation. Expandable with up to 9 additional HPE MSA 2060 drive enclosures, it can scale to over 2.3PB with support for SSDs, Enterprise SAS, and Midline SAS HDDs. Built-in data services and support for Veeam, VMware, and major OS platforms make it a future-ready investment for secure and efficient hybrid workloads.
| Specification | Details |
|---|---|
| Model Number | R0Q84B |
| Generation | 6th Gen |
| Form Factor | 2U Rack-Mountable |
| Drive Bays | 24 x 2.5" SFF SAS-3 bays |
| Included Drives | 2 x 1.92TB Read Intensive SFF SSDs (Total 3.84TB) |
| Max Raw Capacity | Up to 2,332.80 TB with LFF expansion (9 drive enclosures) |
| Host Interfaces | 8 x 12Gb SAS Ports (4 per controller) |
| Controllers | 2 x HPE MSA 2060 SAS Storage Controllers |
| Storage Expansion | Supports up to 9x HPE MSA 2060 SFF or LFF enclosures |
| Performance | Up to 395,000 IOPS |
| Snapshot & Replication | Yes – Virtualized Snapshots, Remote Replication via SAS/FC/iSCSI |
| Encryption Support | Yes – Local Key Management, Encrypted SSD/HDD Support |
| Supported OS | Windows Server 2022/2019/2016, VMware vSphere 6.7, RHEL 8, SUSE SLES 15 |
| Dimensions (W x D x H) | 17.5 x 20.0 x 3.5 in |
| Weight | 11 lbs (approx.) |
| Power & Cooling | ENERGY STAR certified, includes redundant fans and power supplies |
| Warranty | 3-Year Limited Warranty (NBD Parts Exchange), separate for drives/options |
