Description

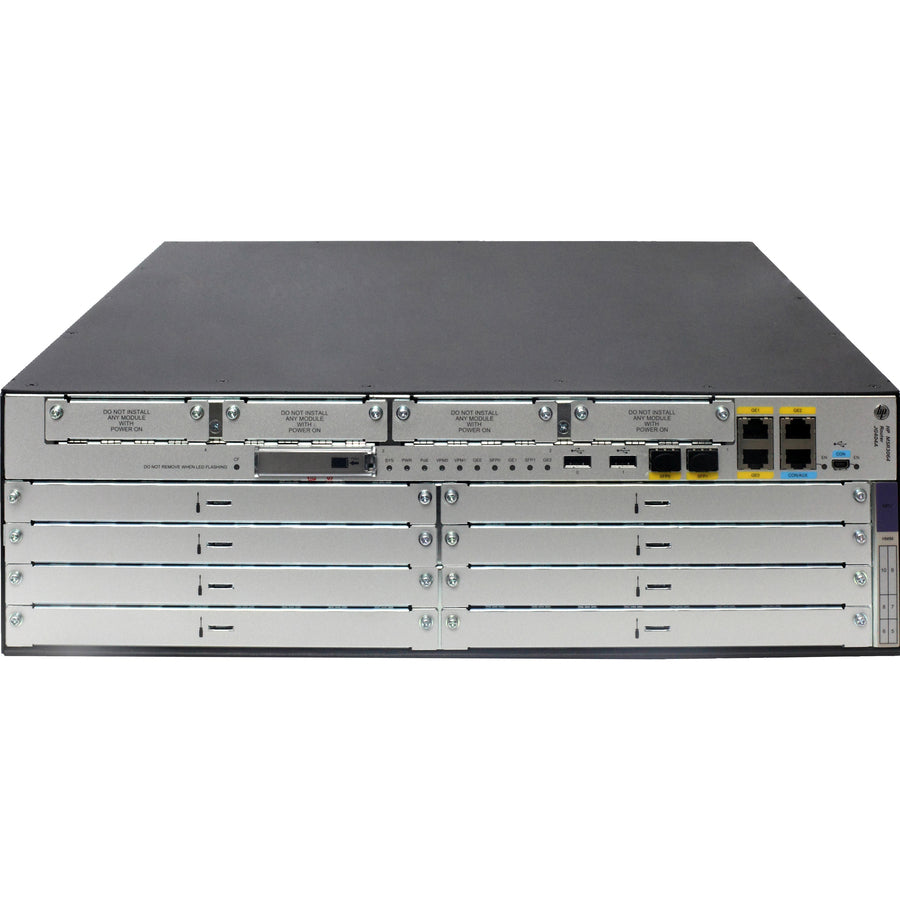

The HPE FlexNetwork MSR3024 AC Router (JG406A#ABA) is a modular, high-performance router designed for medium to large branch networks. As part of the HPE Comware MSR3000 Series, this router offers exceptional application services with integrated routing, switching, security, and voice capabilities—all in a single platform. Powered by Comware v7, it provides up to 13 Mpps forwarding capacity and 14.3 Gbps of IPSec VPN throughput, supporting demanding workloads and cloud transitions with ease.
Its modular design includes multiple slots for SIC, DSIC, and VPM modules, offering flexible connectivity options including Serial, Gigabit Ethernet, and optional wireless (3G/4G LTE). Integrated security features like IPS and a stateful firewall enhance protection, while zero-touch provisioning (ZTP) and dynamic VPN simplify deployment. Whether you're running advanced WAN services or high-density voice networks, the MSR3024 delivers the performance and resiliency your branch needs.
| Specification | Details |
|---|---|
| Product Number | JG406A#ABA |
| Product Series | HPE FlexNetwork MSR3000 Series |
| Model | MSR3024 AC Router |
| Operating System | HPE Comware v7 |
| Forwarding Capacity | Up to 13 Mpps |
| IPSec VPN Throughput | Up to 14.3 Gbps |
| Slot Configuration | 2 HMIM slots, 4 SIC or 2 DSIC slots, 1 VPM slot |
| WAN Ports | 3 x RJ-45 10/100/1000 (1 combo SFP) |
| Wireless Capability | 3G/4G LTE (optional, module-based) |
| Advanced Features | Open Application Platform, ADVPN, hierarchical QoS, stateful firewall |
| Input Voltage | 100-120V / 200-240V AC |
| Power Consumption | 100W (maximum) |
| Heat Dissipation | 168 BTU/hr (177.24 kJ/hr) |
| Dimensions (W x D x H) | 17.32 x 18.9 x 1.74 in (44 x 48 x 4.4 cm) |
| Weight | 17.42 lb (7.9 kg) |
| Management | HPE Intelligent Management Center (IMC), ZTP |
| Compliance | IPv6, MPLS, TAA |
