Description

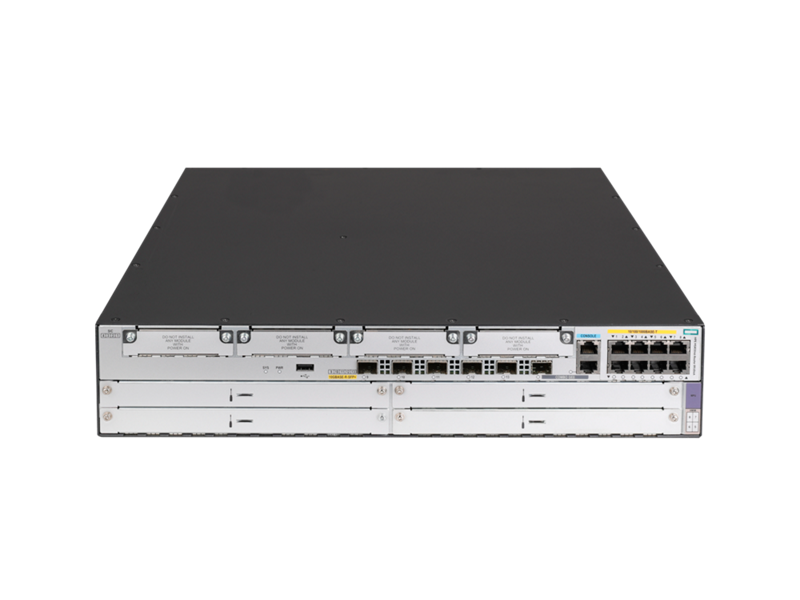

The HPE Networking Comware Router MSR3046 is a powerful, modular router designed to meet the demanding needs of medium to large branch offices. As part of the MSR3000 Series, it delivers high-speed routing, switching, security, and voice services in one simplified platform.
With up to 9 Mpps forwarding capacity, 14.3 Gbps IPSec throughput, and support for IPv6, MPLS, and virtualized applications, this router offers unmatched performance. It includes a high-density port layout with 9 RJ-45 Gigabit WAN ports, 5 SFP+ 10GE ports, and multiple expansion slots for flexibility. Built-in features like IPSec VPN, stateful firewall, and zero-touch provisioning (ZTP) reduce deployment time and operational complexity.
Whether you're connecting remote offices, deploying unified communications, or enhancing your network’s agility, the MSR3046 is ready for the challenge.
| Specification | Details |
|---|---|
| Product Number | R9J04A |
| Series | HPE Networking Comware MSR3000 Series |
| Forwarding Performance | Up to 9 Mpps |
| IPSec VPN Throughput | Up to 14.3 Gbps (MSR3000 Series capability) |
| Routing Table Size | 500,000 (IPv4), 500,000 (IPv6) |
| Ports | 9x RJ-45 10/100/1000 WAN (1 combo SFP), 5x 10GE SFP+ |
| Expansion Slots | 4x HMIM, 4x SIC |
| Wireless Capability | 3G, 4G LTE (via optional modules) |
| Operating System | HPE Comware v7 |
| Power Supply | 100-120 / 200-240 VAC |
| Power Consumption | 100 W (max) |
| Heat Dissipation | 218 BTU/hr (229.99 kJ/hr) |
| Dimensions (HxWxD) | 8.9 x 43.9 x 48 cm |
| Weight | 11.3 kg |
