Description

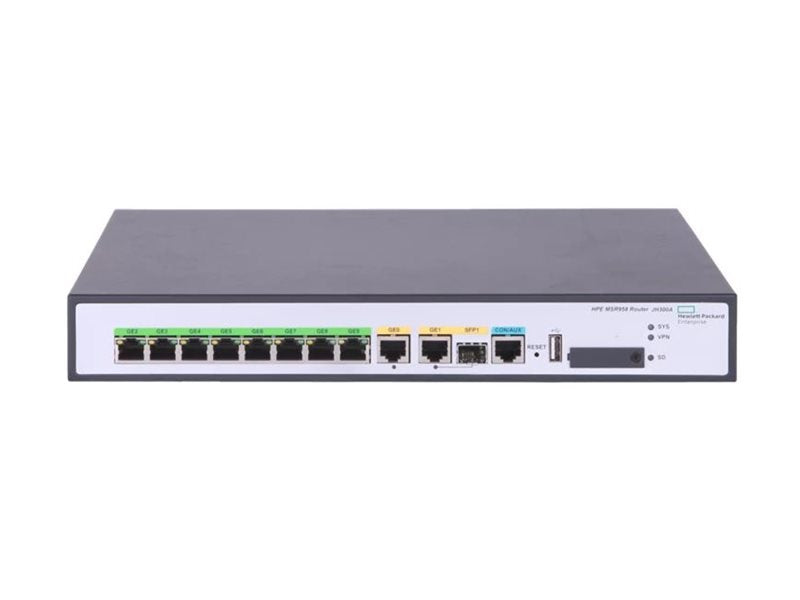

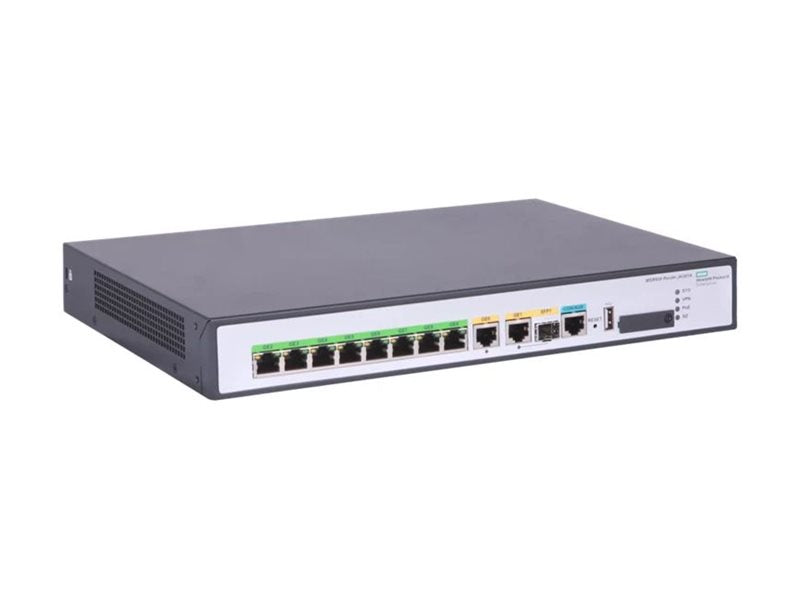

The HPE FlexNetwork MSR958X is a high-performance, compact router designed for small to medium enterprise branches needing integrated WAN, LAN, VPN, and wireless functionality. Featuring 8 Gigabit LAN ports and 6 WAN ports (2 combo RJ-45/SFP and 2 SFP), it delivers up to 3 Mpps throughput and supports Comware v9, offering robust routing, security, and Layer 2/3 switching capabilities in a rack-mountable form factor.
This router is optimized for converged services, with embedded IPSec VPN, firewall, NAT, and support for advanced protocols such as OSPF, BGP, and MPLS. With silent, fanless operation and rich remote management features, it is ideal for secure, high-throughput edge deployment in distributed networks.
| Specification | Details |
|---|---|
| Model | HPE FlexNetwork MSR958X |
| SKU / Part Number | S0P11A#ABA |
| Form Factor | Rack-mountable, 1U |
| Processor | Marvell ARM64 1.6 GHz |
| Memory | 2 GB RAM, 4 GB eMMC Flash |
| LAN Ports | 8 x 10/100/1000 Mbps RJ-45 (4 switchable to routing) |
| WAN Ports | 2 x RJ-45 (combo), 2 x SFP |
| USB/Console | 1 x USB 2.0, 1 x Console RJ-45 |
| Throughput | Up to 3 Mpps |
| Routing Table Size | 200,000 entries (IPv4 & IPv6) |
| Forwarding Table Size | 200,000 entries (IPv4 & IPv6) |
| VPN Support | IPSec, GRE, L2TP, ADVPN, GDVPN, DVPN |
| Wireless Support | Embedded 802.11b/g/n WLAN (autonomous mode) |
| Power Supply | Internal, 100–240V AC, 36W max |
| Operating Temperature | 0°C to 45°C |
| Dimensions (W x D x H) | 26.6 x 16.1 x 4.36 cm |
| Weight | 1.2 kg |
| Mounting Kit | Rack-mountable (kit JH317A sold separately) |
| Management | CLI, SNMP, Telnet, RMON, FTP, IMC |
| Security Features | Firewall, ACLs, URPF, NAT, SSHv2, RADIUS, TACACS+ |
| OS | Comware v9 |
| Warranty | Limited 1-year warranty |
