Description

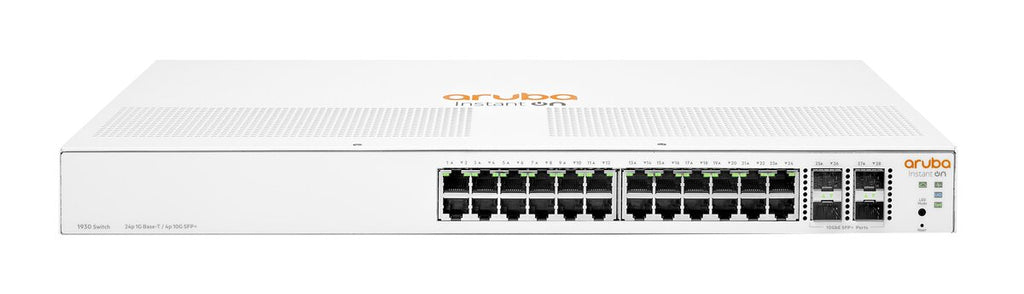

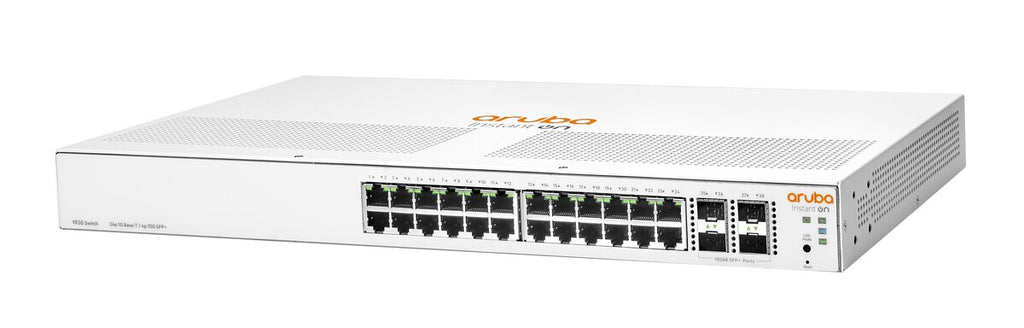

The HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch (JL682A#ABA) is a smart-managed Gigabit switch built for small businesses looking for enterprise-grade performance with minimal complexity. With 24 autosensing 10/100/1000 RJ-45 ports and 4 SFP/SFP+ 1G/10G uplink ports, this L2+ switch ensures reliable connectivity across copper and fiber infrastructure.
Ideal for bandwidth-heavy applications like VoIP, video conferencing, and surveillance, the switch supports cloud-based or local management via the Aruba Instant On mobile app or web portal. Energy-efficient and secure, it includes advanced features such as VLANs, link aggregation, access control, and DoS protection.
Designed for out-of-the-box plug-and-play deployment, the 1930 switch offers the performance and flexibility needed to scale with your business—without the need for extensive IT resources.
| Specification | Details |
|---|---|
| Product Number | JL682A#ABA |
| Form Factor | Rack-mountable (1U) |
| Management | Smart-managed (Cloud via Instant On App / Web GUI / SNMP) |
| Layer Support | Layer 2+ |
| Ports | 24 x 10/100/1000Base-T RJ-45 ports |
| 4 x 1G/10G SFP/SFP+ uplink ports | |
| Processor | ARM Cortex-A9 @ 800 MHz |
| Memory | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Packet Buffer | 1.5 MB |
| Switching Capacity | 128 Gbps |
| Throughput | 95.23 Mpps |
| Power Supply | Internal (100 – 127 / 200 – 240 VAC) |
| Power Consumption | Max: 22.6 W / Idle: 9.3 W |
| Security Features | IEEE 802.1X, VLANs, DoS protection, access control with multiple privilege levels |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Product Dimensions | 1.73 x 17.42 x 8.72 in (H x W x D) |
| Weight | 5.32 lb (2.41 kg) |
| Warranty | Limited Lifetime Warranty |
