Description

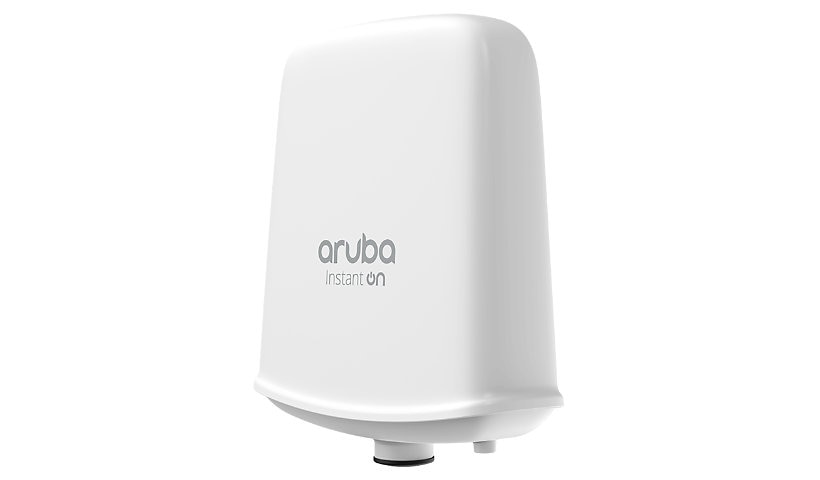

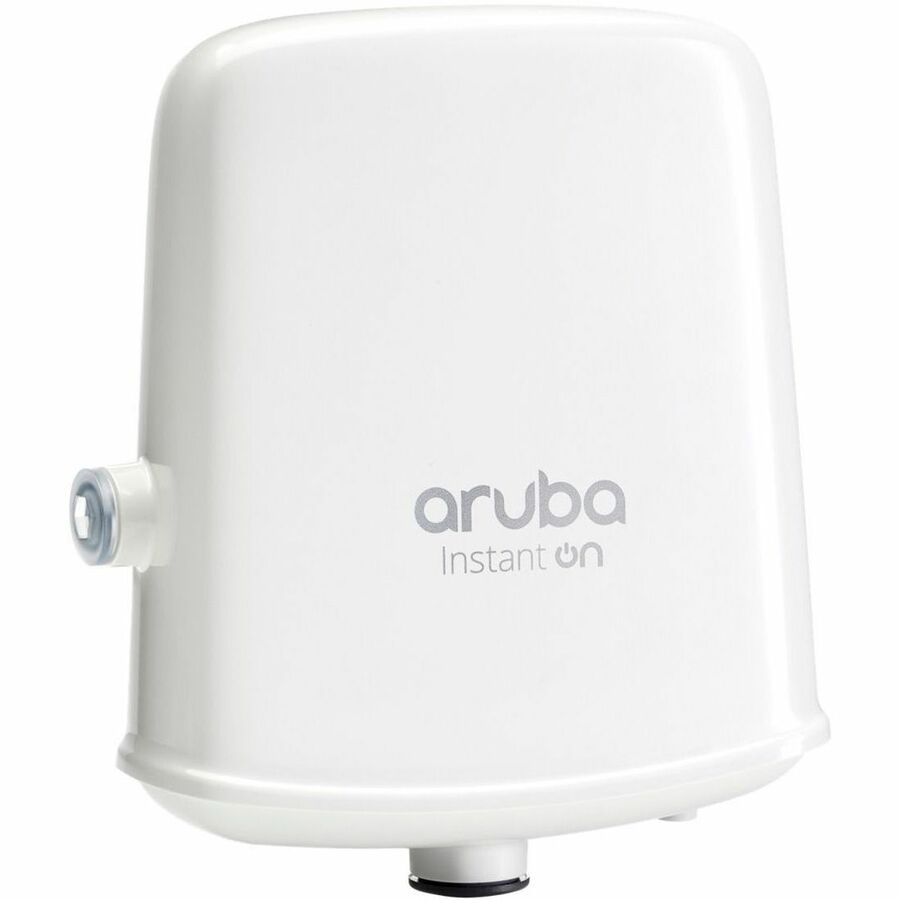

The HPE Aruba Networking Instant On AP17 (R2X10A) is an outdoor-rated wireless access point designed for small to medium businesses that require robust Wi-Fi performance in challenging environments. Featuring Wave 2 802.11ac (Wi-Fi 5) technology and a durable weatherproof housing, the AP17 delivers high-speed wireless connectivity in outdoor and semi-industrial locations such as open-air cafes, patios, manufacturing zones, and pool areas.
With dual-band coverage (2.4GHz and 5GHz), 2x2 MIMO antennas, and Bluetooth (BLE) support, it delivers an aggregate peak data rate of up to 1.17 Gbps. The built-in InstantOS software simplifies deployment and management, while Power over Ethernet (PoE) capability allows for flexible installation with a single cable. Ideal for expanding your network securely and affordably, the AP17 is perfect for multi-user environments needing streaming, cloud applications, and mobile device access—without complex setup or IT infrastructure.
| Specification | Details |
|---|---|
| Brand | Aruba |
| Product Line | Aruba Instant On |
| Model | AP17 (US) |
| Part Number (SKU) | R2X10A |
| Form Factor | External, Pole/Wall Mountable |
| Deployment | Outdoor |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac (Wi-Fi 5) |
| Network Band | 2.4 GHz and 5 GHz |
| Max Data Rate | 300 Mbps (2.4 GHz), 867 Mbps (5 GHz) |
| Total Throughput | 1.17 Gbps (aggregate) |
| MIMO Configuration | 2x2 MIMO |
| Antenna | 2 Internal Omni-directional Antennas |
| Antenna Gain | 4.7 dBi |
| Bluetooth Support | Bluetooth Low Energy (BLE) Clients Supported |
| Security | WPA2, WPA3, Opportunistic Wireless Encryption (OWE) |

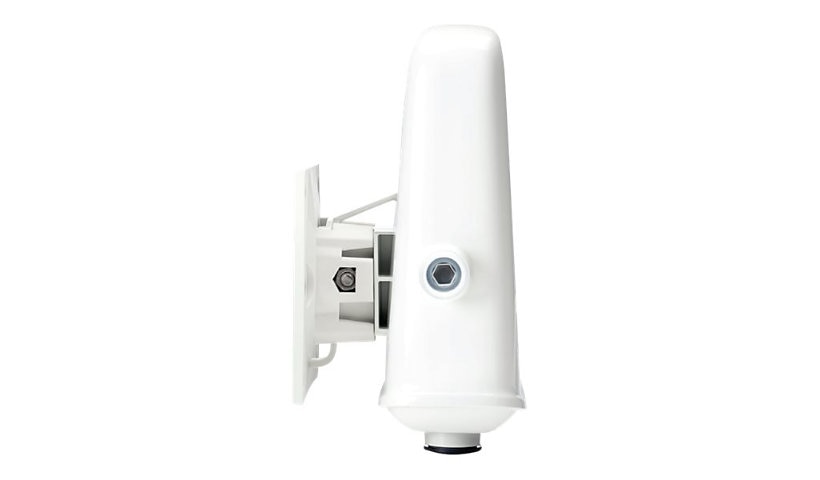

| Mounting Options | Pole Mount, Wall Mount |
| Management | Built-in Controller (InstantOS) |
| PoE Support | Yes, 802.3af |
| Port | 1 x 1000Base-T (PoE) RJ-45 |
| Temperature Range | -40°F to 122°F (-40°C to 50°C) |
| Humidity Range | 5% to 93% (non-condensing) |
| MTBF | 34 Years |
| Color | White |
| Dimensions (H x W x D) | 2.6 in x 7.4 in x 6.1 in |
| Weight | 22.93 oz (approx. 651 g) |
| Included Accessories | Mounting Bracket, M4x8 Screw, Self-tapping Screw, Cable Gland, Grounding Lug |
| Compliance | CB 62368, UL 2043, EN 60601-1-1, EN 60601-1-2, IEC 60950 |
| Energy Certifications | Not ENERGY STAR / EPEAT / TCO certified |
| Warranty | 2-Year Limited Warranty, 90-Day Phone Support, 2-Year Web Support |
