Description

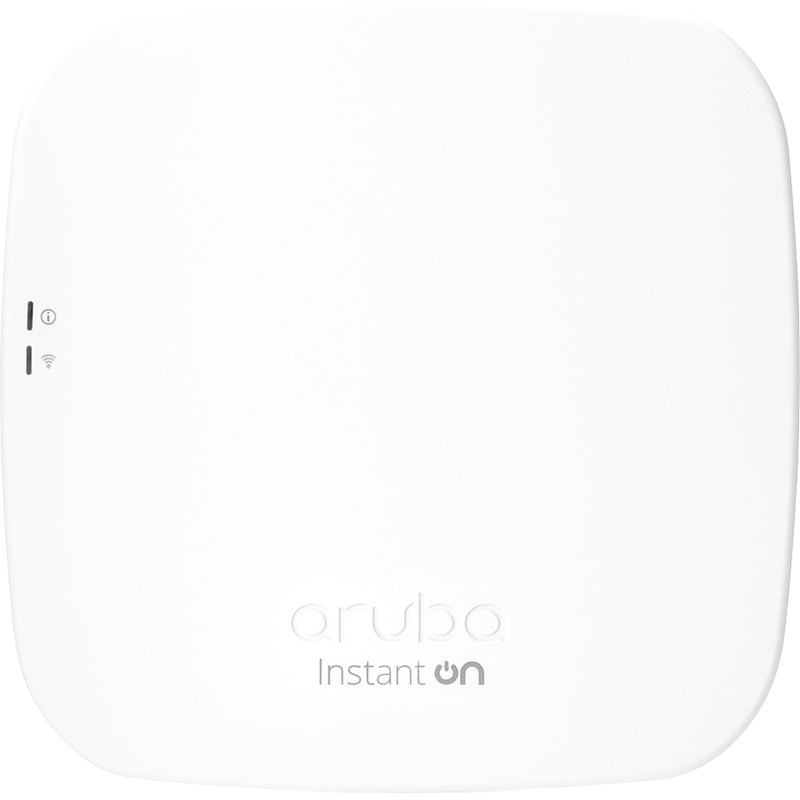

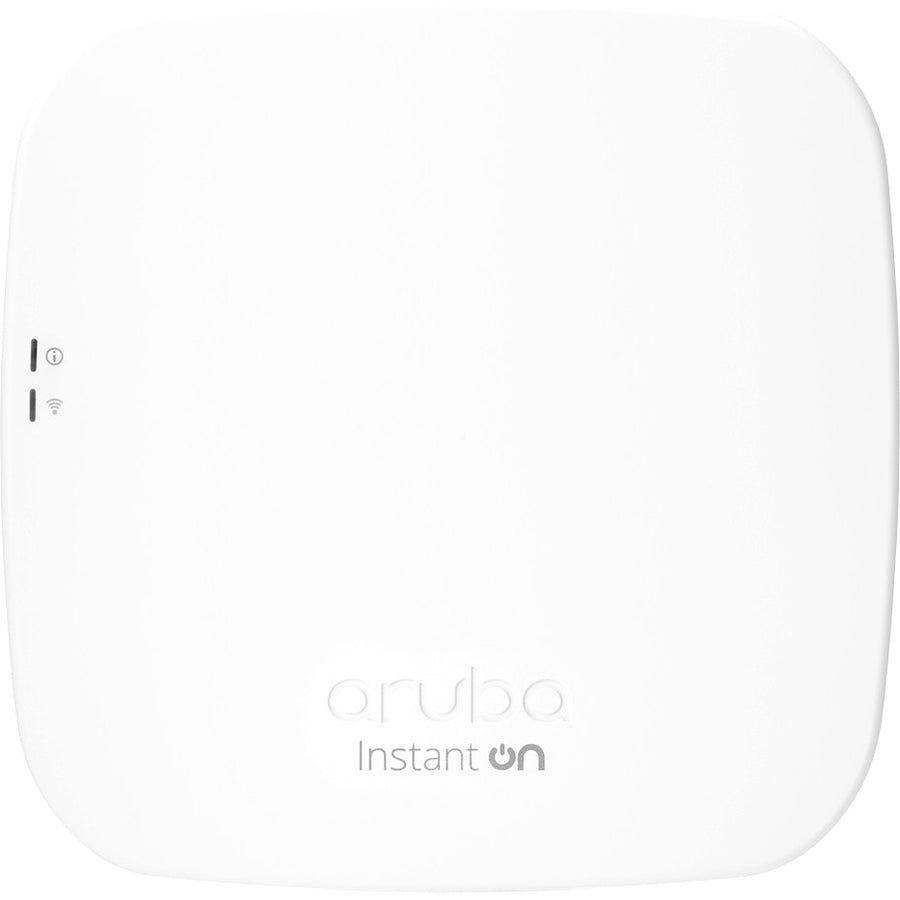

The HPE Aruba Networking Instant On AP12 (US) is a cost-effective, high-performance wireless access point tailored for small to medium-sized businesses. With Wave 2 802.11ac (Wi-Fi 5) support, dual-radio (2.4 GHz and 5 GHz), and MU-MIMO capabilities, the AP12 ensures robust connectivity, seamless video streaming, and smooth cloud application performance. Designed for indoor deployment, the AP12 features Bluetooth (BLE) support, wall/ceiling mount flexibility, and simple management through a built-in controller — making it ideal for tech startups, retail stores, and boutique offices. This unit includes mounting clips, a network cable, and supports Power over Ethernet (PoE) for streamlined setup without extra wiring.
| Specification | Details |
|---|---|
| Product Type | Wireless Access Point |
| Model | AP12 (US) |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac Wave 2) |
| Radio Bands | 2.4 GHz and 5 GHz |
| MIMO Technology | 2x2 (2.4 GHz), 3x3 (5 GHz) |
| Max Data Rate | 300 Mbps (2.4 GHz), 1300 Mbps (5 GHz) |
| Bluetooth | Yes (Bluetooth Low Energy) |
| Antenna Type | Internal, Omni-directional, 5.4 dBi Gain |
| Mounting Options | Wall / Ceiling mountable |
| Connectivity Ports | 1 x 1000Base-T RJ-45 (PoE), 1 x USB |
| Power Supply | Power over Ethernet (802.3af) |
| Encryption | WPA2, WPA3, Opportunistic Wireless Encryption (OWE) |
| Controller | Built-in (no separate controller required) |
| Operating System | InstantOS |
| Dimensions (WxDxH) | 6.2 x 6.2 x 1.3 in (158 x 158 x 33 mm) |
| Weight | 17.04 oz (0.48 kg) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Operating Humidity | 5% to 93% (non-condensing) |
| MTBF | 127 years |
| Certifications | UL 2043, EN 60601-1-1, EN 60601-1-2, Wi-Fi CERTIFIED |
| Included Accessories | 1 x network cable, ceiling rail mount clip, solid surface mount clip |
| Warranty | 2-Year Limited Warranty, 90-Day Phone Support, 2-Year Web Support |
