Description

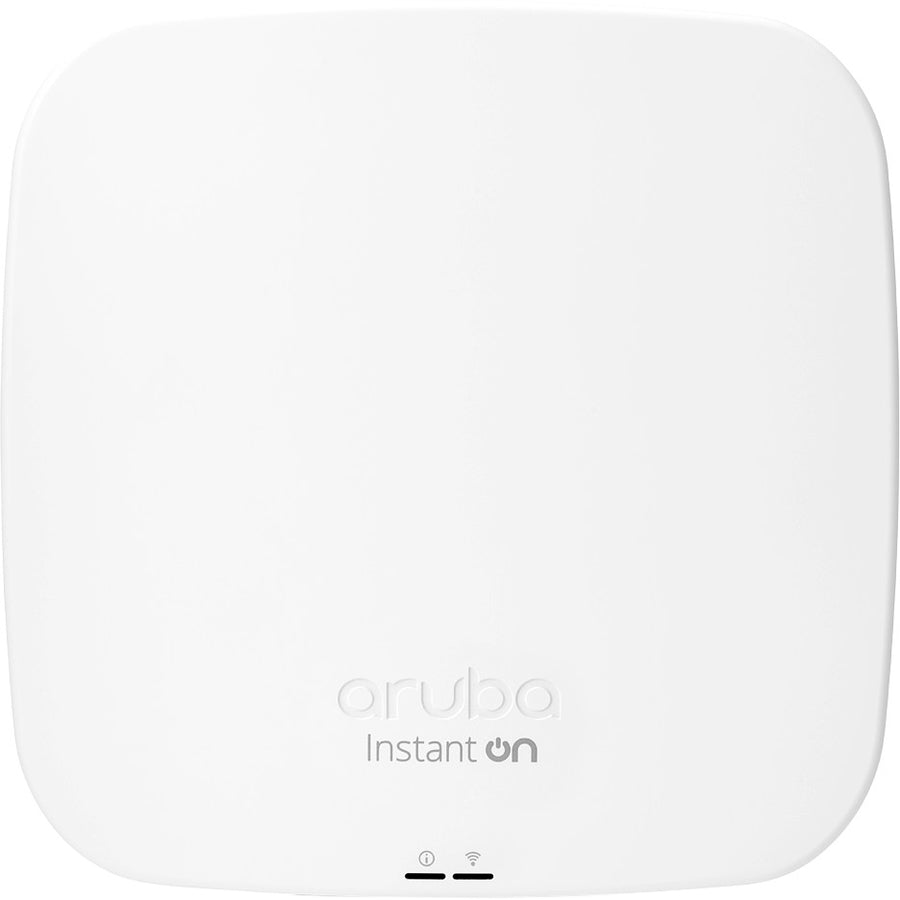

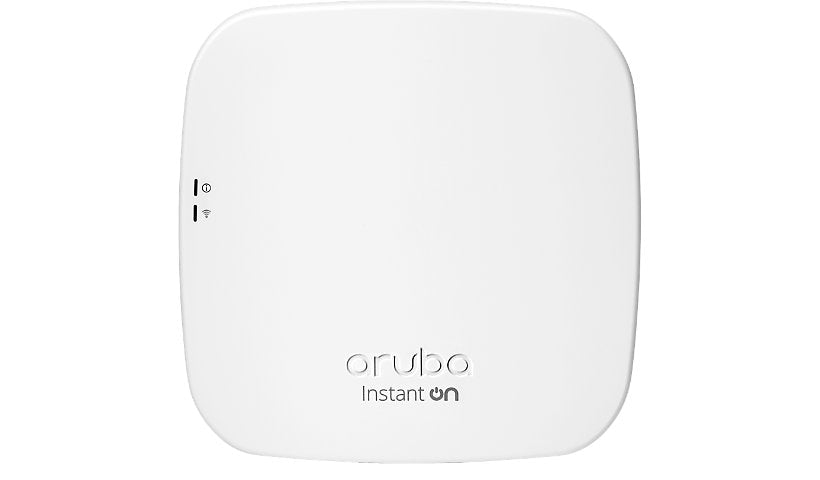

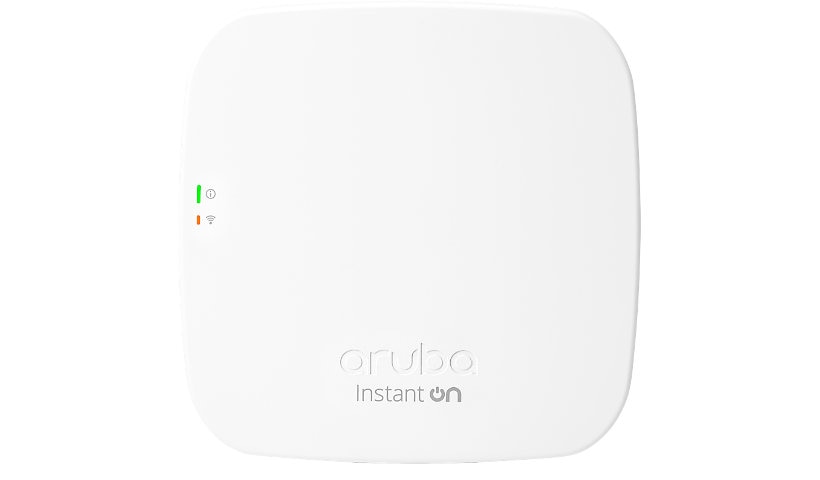

The HPE Aruba Networking Instant On AP15 (US) is a premium-grade indoor access point designed to meet the demands of medium-density small business environments like tech startups, co-working spaces, and retail stores. Supporting Wave 2 802.11ac Wi-Fi 5 with 4x4 MIMO, it delivers high-performance connectivity, seamless multi-user capabilities, and a peak data rate of up to 2 Gbps.
Equipped with dual-band support (2.4 GHz and 5 GHz), integrated Bluetooth, internal omni-directional antennas, and a compact wall/ceiling mountable design, the AP15 ensures fast and reliable connections with minimal setup. A built-in controller simplifies deployment, allowing easy management of multiple APs without the need for extra hardware or advanced IT skills.
Ideal for modern, high-traffic business environments, the AP15 also features enhanced security protocols including WPA3, and comes with included mounting accessories for quick installation.
| Specification | Details |
|---|---|
| Model Number | R2X05A |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac Wave 2) |
| Radio Configuration | Dual Radio 4x4:4 (5 GHz) + 2x2:2 (2.4 GHz) |
| Max Data Rate | 2.4 GHz: 300 Mbps5 GHz: 1733 Mbps |
| Frequency Bands | 2.4 GHz / 5 GHz |
| MIMO | 4T4R (5 GHz), 2T2R (2.4 GHz) |
| Bluetooth Support | Yes (BLE for IoT and client proximity) |

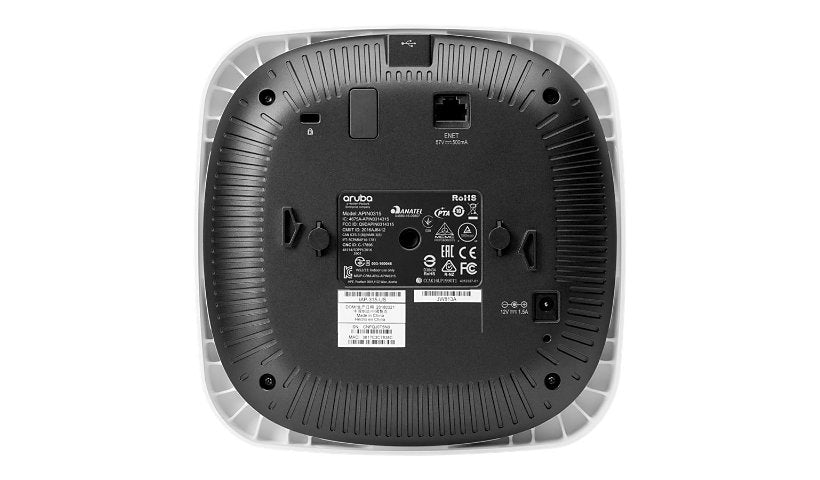

| Mounting Options | Wall / Ceiling mountable |
| PoE | 802.3af (PoE) via 1 x RJ-45 1000Base-T port |
| Antenna | Internal, Omni-directional, 6 dBi gain |
| Form Factor | Compact Indoor Unit |
| Security | WPA2, WPA3, Opportunistic Wireless Encryption (OWE) |
| Operating System | Aruba InstantOn (InstantOS) |
| MTBF | 105 Years |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Humidity Range | 5% – 93% (non-condensing) |
| Certifications | EN 60601-1-1, EN 60601-1-2, UL 2043, Wi-Fi CERTIFIED |
| Color | White |
| Included Accessories | 1 x Network cableCeiling rail mount clipSolid surface mount clip |
| Dimensions (W x D x H) | 7.2 x 7.2 x 1.6 inches (183 x 183 x 41 mm) |
| Weight | 23.77 oz (674 g) |
| Warranty | 2-Year Limited Warranty, Web Support: 2 Years, Phone Support: 90 Days |
