Description

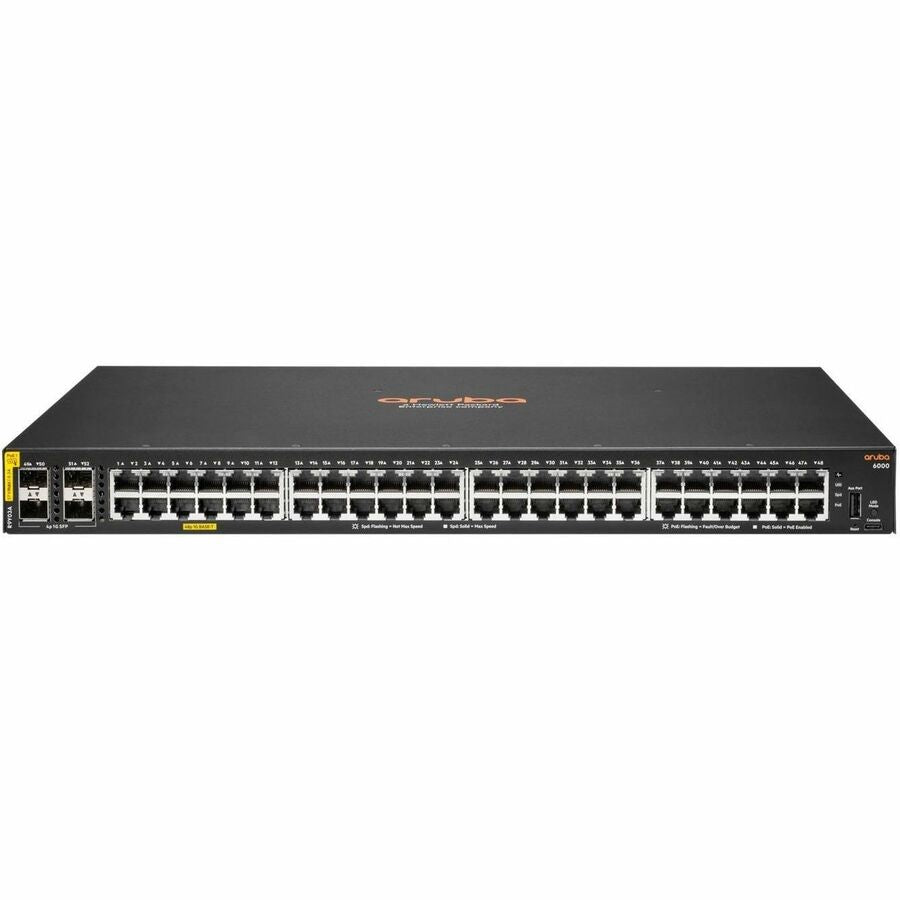

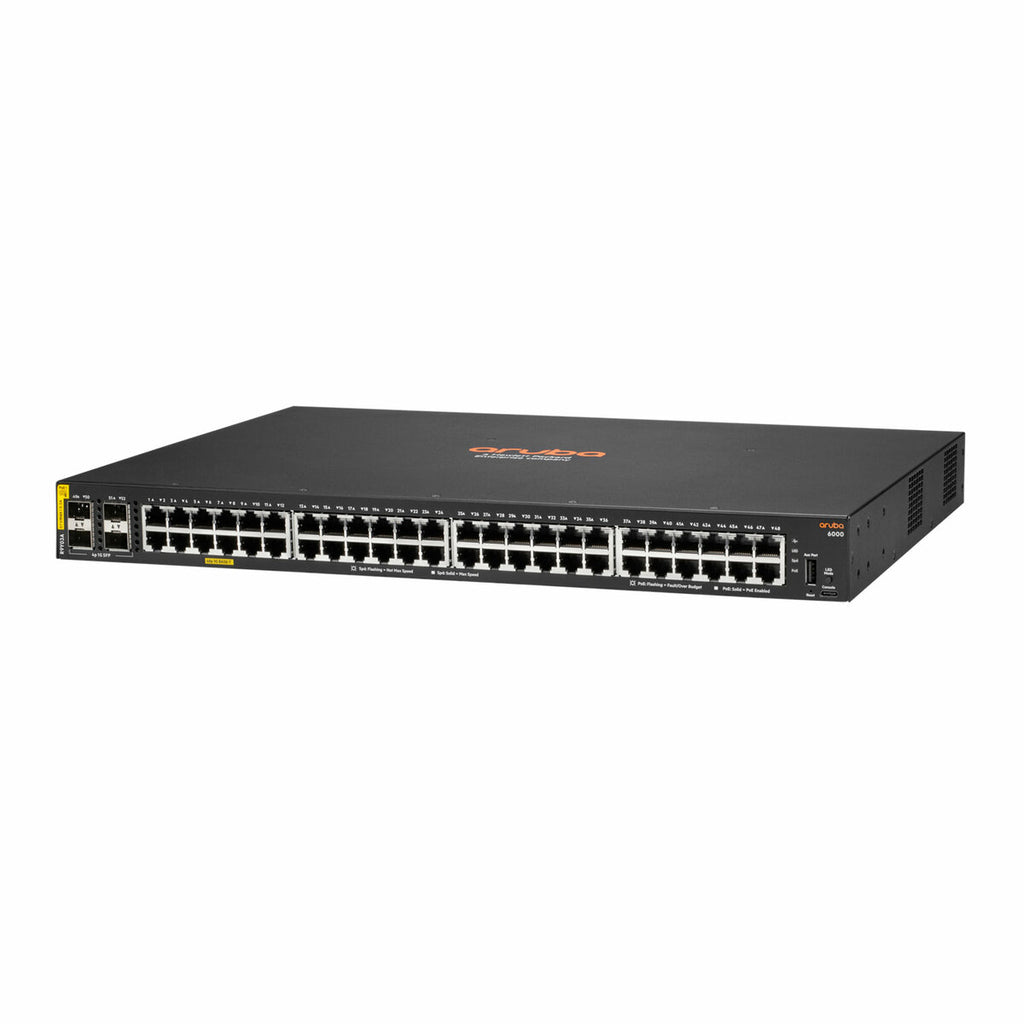

The HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch is a fully managed Layer 2 access switch designed for modern small to midsize businesses, branch offices, and enterprise edge environments. With 48 Gigabit PoE+ ports and 4 SFP uplinks, it offers robust connectivity and up to 740W of Class 4 PoE for powering IoT devices, APs, and security cameras.
Built on the Aruba ASIC architecture and powered by the AOS-CX operating system, this switch delivers enhanced visibility, automation, and programmability. Features such as REST APIs, static routing, ACLs, and advanced QoS help simplify IT operations, while flexible management via CLI, Web GUI, or Aruba Central ensures effortless deployment and maintenance. With its 1U rack-mountable form factor, the CX 6000 is an ideal wired access solution for growing network demands.
| Category | Specification |
|---|---|
| Model | CX 6000 48G Class4 PoE 4SFP 740W |
| Ports | 48 x 10/100/1000BASE-T PoE+ (Class 4), 4 x SFP Gigabit uplink |
| PoE Budget | 740W IEEE 802.3at (Class 4), 30W per port |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency | 1.9 µs (1 Gbps), 1.8 µs (10 Gbps) |
| Processor | ARM Cortex-A9 Dual-Core @ 1.016 GHz |
| Memory | 8 GB DDR3 RAM, 16 GB eMMC |
| Layer Support | Layer 2 (with static routing) |
| Advanced Features | AOS-CX OS, ACLs, sFlow, QoS, IGMP/MLD, VLANs |
| Security | SSH, SSL, RADIUS, TACACS+, TPM |
| Management | CLI, SNMP, RMON, Web GUI, Aruba Central, REST APIs |
| Dimensions | 1U rack-mountable |
| Power Supply | Internal (AC 100–127V / 200–240V, 50/60 Hz) |
| Operating Temp | 0°C to 45°C (32°F to 113°F) |
| Included Accessories | Mounting brackets |
| Warranty | Limited Lifetime Warranty |
