Description

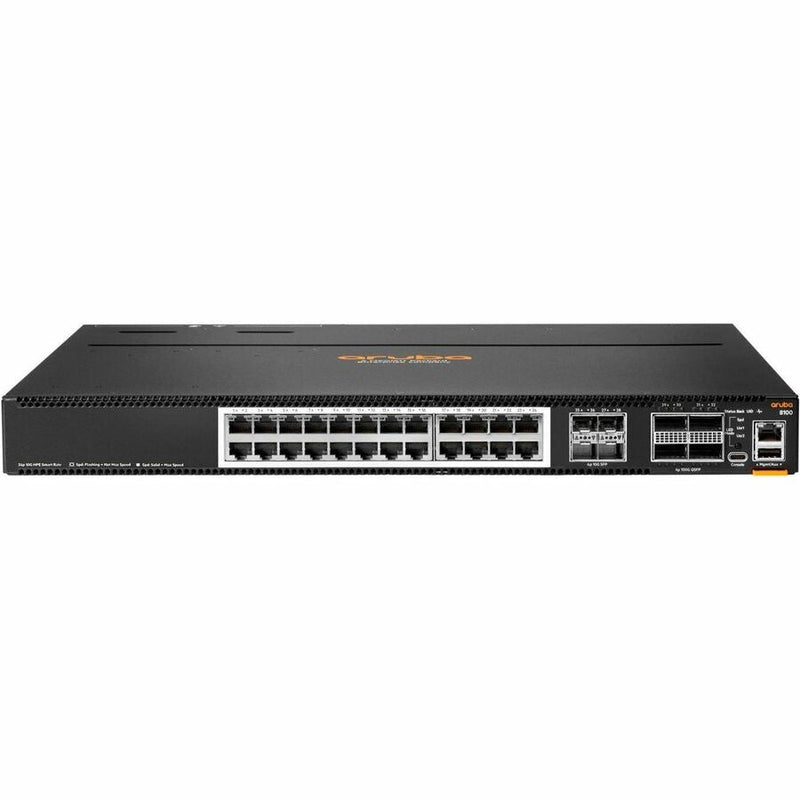

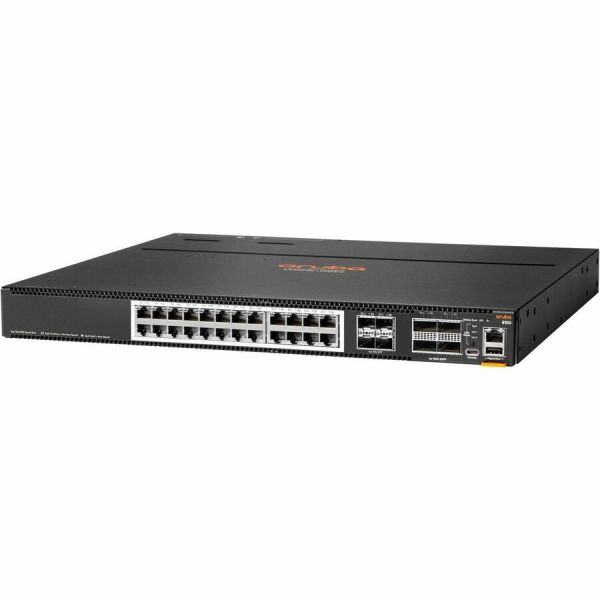

The HPE Aruba CX 8100 24XT4XF4C Ethernet Switch is purpose-built for today’s mobile, cloud, and IoT environments. With 24 high-speed 10G ports and a mix of breakout-capable uplinks (4x10G and 4x100G), this powerful Layer 3 switch delivers up to 1.76 Tbps of switching capacity in a compact 1U form factor.

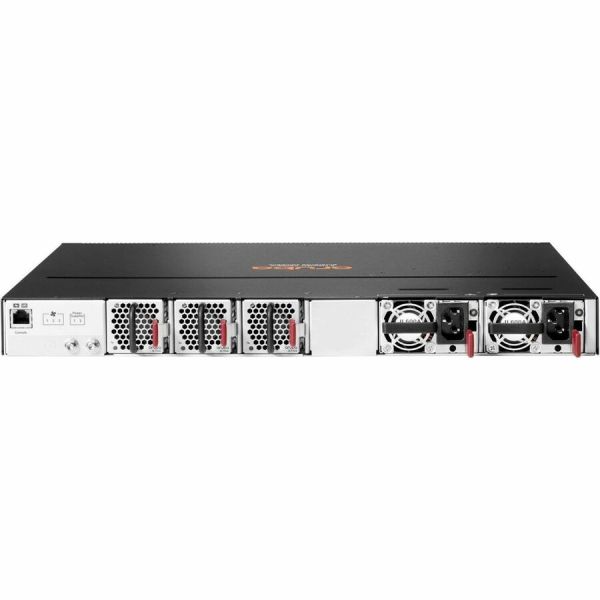

Powered by ArubaOS-CX, it supports advanced features like Dynamic Segmentation, Network Analytics Engine (NAE), and cloud-based management via Aruba Central. Built for high availability, this modular switch includes redundant power supplies and fans, PoE capabilities, and multi-environment mounting options.
Whether deployed in modern campus cores or dynamic data center environments, the CX 8100 ensures scalable, high-performance connectivity with energy-efficient design.
| Specification | Details |
|---|---|
| Brand | HPE |
| Series | Aruba CX 8100 |
| Model | 24XT4XF4C |
| Part Number | R9W89A#ABA |
| Form Factor | 1U, Surface, Cabinet, Rack-mountable |
| Manageable | Yes |
| Ports | 24 x 10G SFP+4 x 10G SFP+4 x 100G QSFP28 |
| Uplink Support | Yes |
| Media Types Supported | Optical Fiber, Twisted Pair |
| Ethernet Standards | 10GBase-X, 100GBase-X, 10Base-T |
| Layer Support | Layer 3 |
| Network Technology | 10/100 Gigabit Ethernet |
| Expansion Slots | 8 total (SFP+, QSFP28) |
| PoE Support | Yes |
| Power Consumption | 400 W |
| Power Supplies Included | 2 x AC Power Supply |
| Input Voltage | 120V AC / 230V AC |
| Frequency | 50/60 Hz |
| Operating System | ArubaOS-CX |
| Management Options | Aruba Central, On-Premises, Web UI, CLI |
| Advanced Features | NAE, QoS, Dynamic Segmentation, L2/L3 Routing |
| Height | 1.7 in (4.3 cm) |
| Width | 17.4 in (44.2 cm) |
| Depth | 16 in (40.6 cm) |
| Weight | 18.3 lbs (8.3 kg) |
| Package Contents | Switch, 3 Fans, 2 Power Supplies |
| Environmental Compliance | RoHS |
| Product Condition | New and Factory Fresh |
