Description
High-Performance Compact Server for Modern IT Workloads

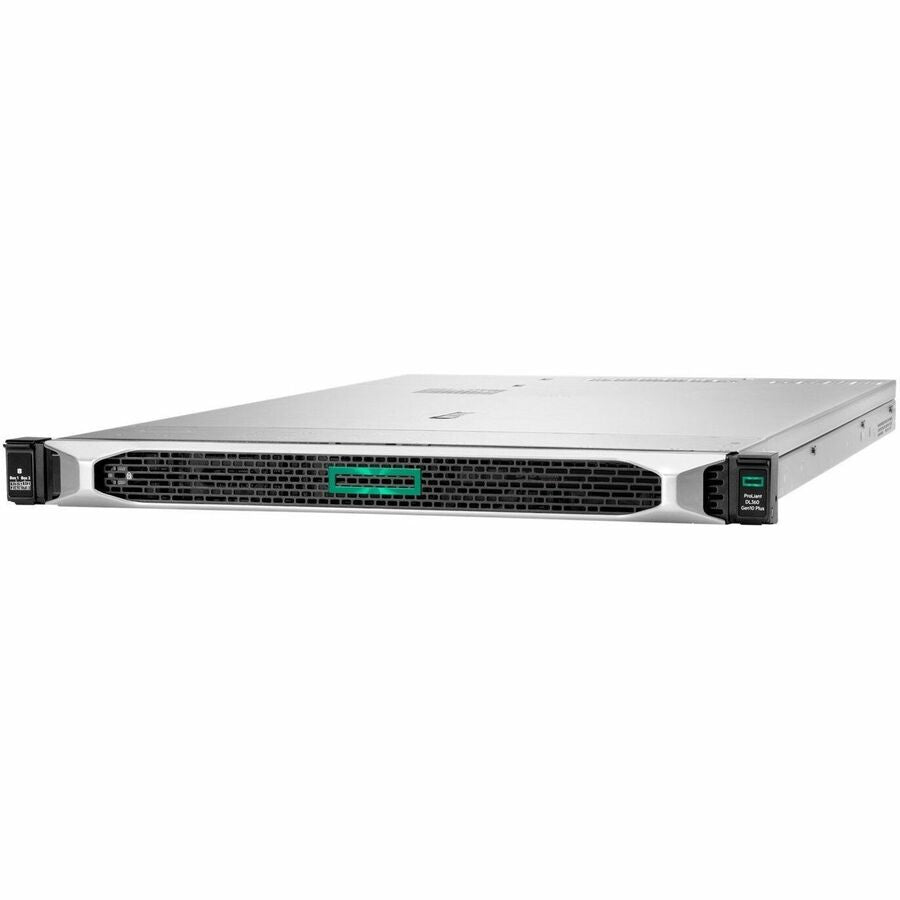

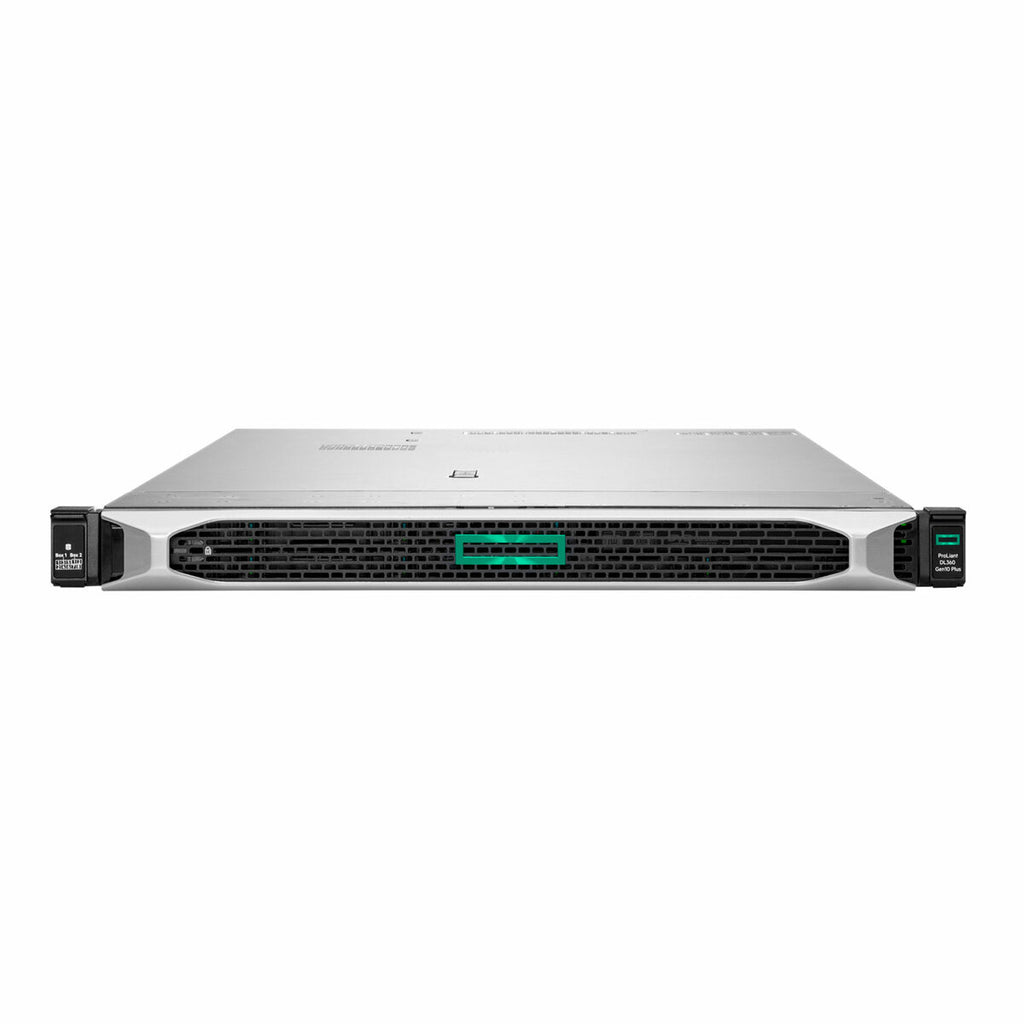

The HPE ProLiant DL360 Gen10 Plus (P69749-005) is a 1U rackmount server designed for agility, performance, and scalability. Powered by a single Intel® Xeon® Silver 4314 16-core 2.4GHz processor and equipped with 128GB DDR4 Smart Memory, it provides robust computing power for virtualization, hybrid cloud, and high-demand enterprise applications.
This server includes the HPE MR416i-a RAID controller supporting NVMe/SAS drives, two 480GB SATA SSDs for fast read-intensive workloads, and drive bays for up to 8 SFF drives. Its flexible architecture enables easy scaling, while advanced I/O with PCIe Gen4 and OCP 3.0 support ensures modern connectivity.
Integrated with HPE iLO and HPE OneView for intelligent management and holistic security, this model also supports HPE GreenLake for as-a-service deployment.
Ideal for: Virtualization, Web Hosting, High-Performance Compute, SMB/Enterprise workloads, Edge environments.
| Specification | Details |
|---|---|
| SKU | P69749-005 |
| Form Factor | 1U Rack |
| Processor | Intel® Xeon® Silver 4314 (16-Core, 2.4GHz, 24MB L3 Cache, 135W) |
| Processor Included | 1 |
| Memory Installed | 128 GB (4x32 GB) DDR4 HPE Smart Memory |
| Memory Type | HPE DDR4 Smart Memory |
| Storage Controller | HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller |
| Included Drives | 2x 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |

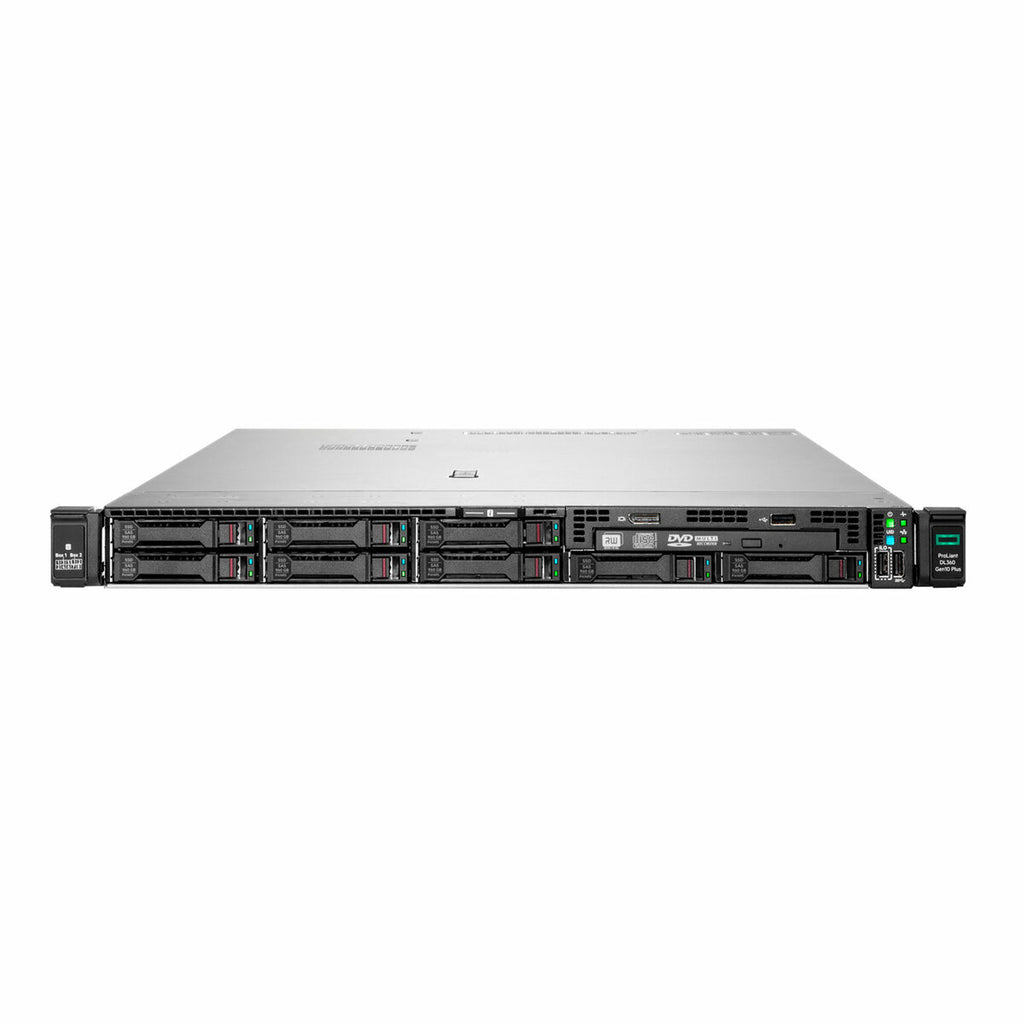

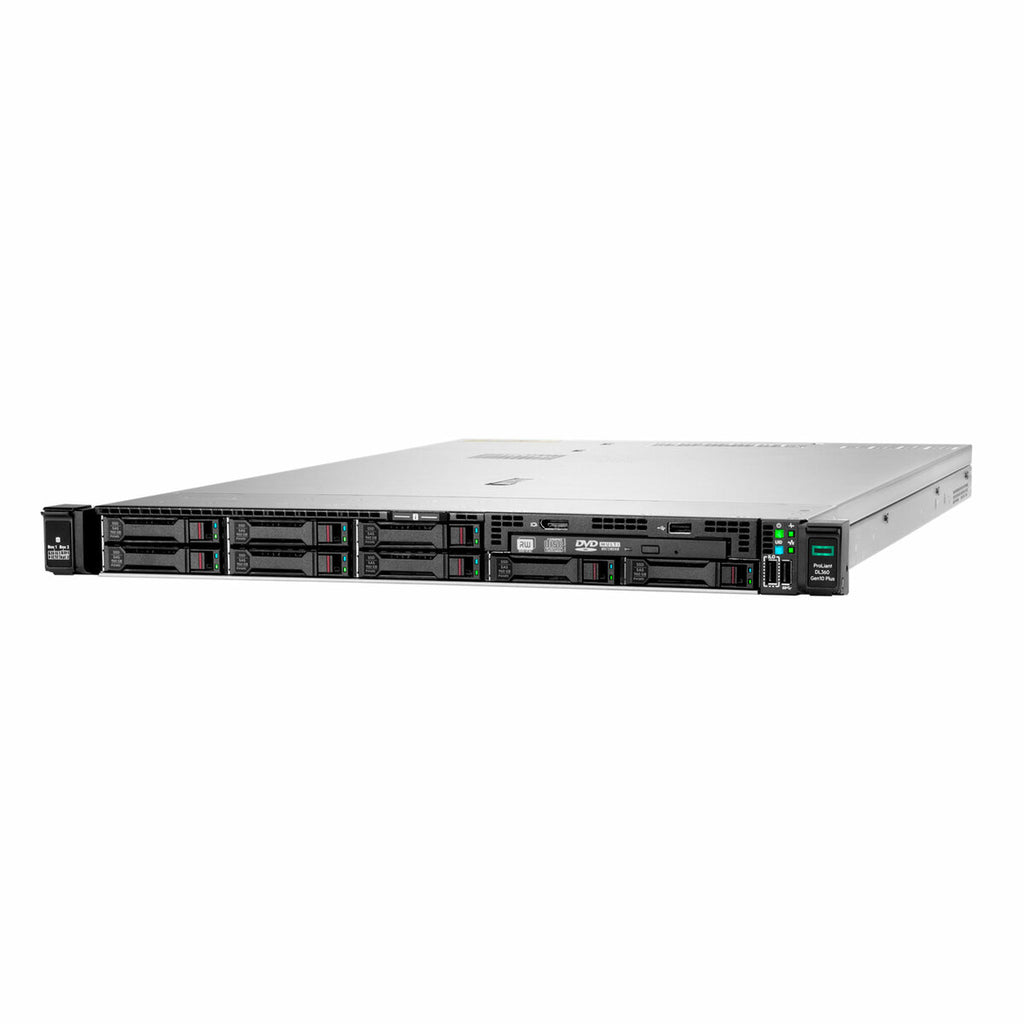

| Drive Bays | 8 SFF (Small Form Factor) |
| System Fans | 5x Standard Fans |
| Network Controller | Broadcom BCM57416 Dual Port 10Gb BASE-T OCP3 |
| Expansion Slots | Up to 3x PCIe Gen4 |

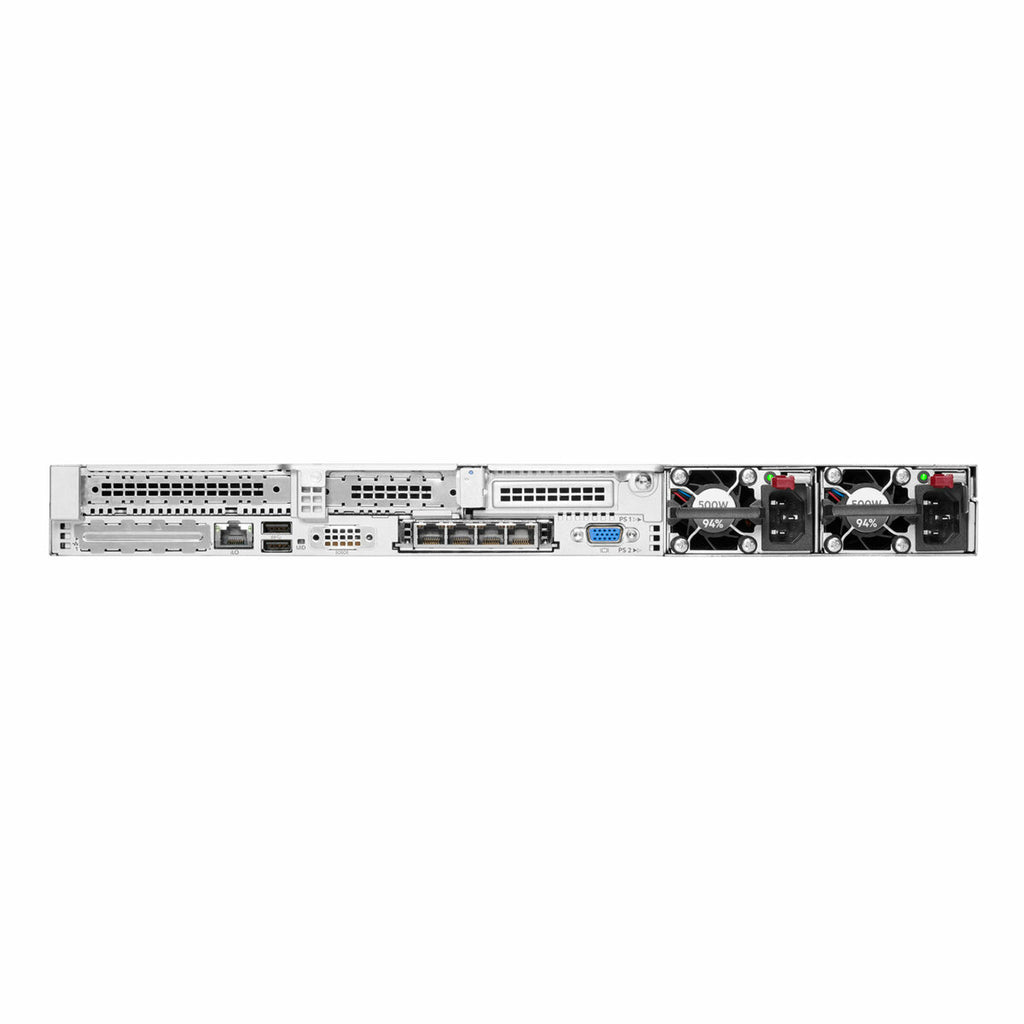

| Power Supply | 2x 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Optical Drive | Not included (optional) |
| Security Features | UEFI Secure Boot, SGX, Immutable Silicon Root of Trust, TPM, Intrusion detection |
| Management | HPE iLO Standard (embedded), HPE OneView Standard, optional iLO Advanced |
| Dimensions (SFF) | 1.69 x 17.11 x 30.30 in |
| Weight (SFF) | 28.74 lb to 35.86 lb |
| Warranty | 3/3/3: 3 years parts, 3 years labor, 3 years onsite support |
