Description

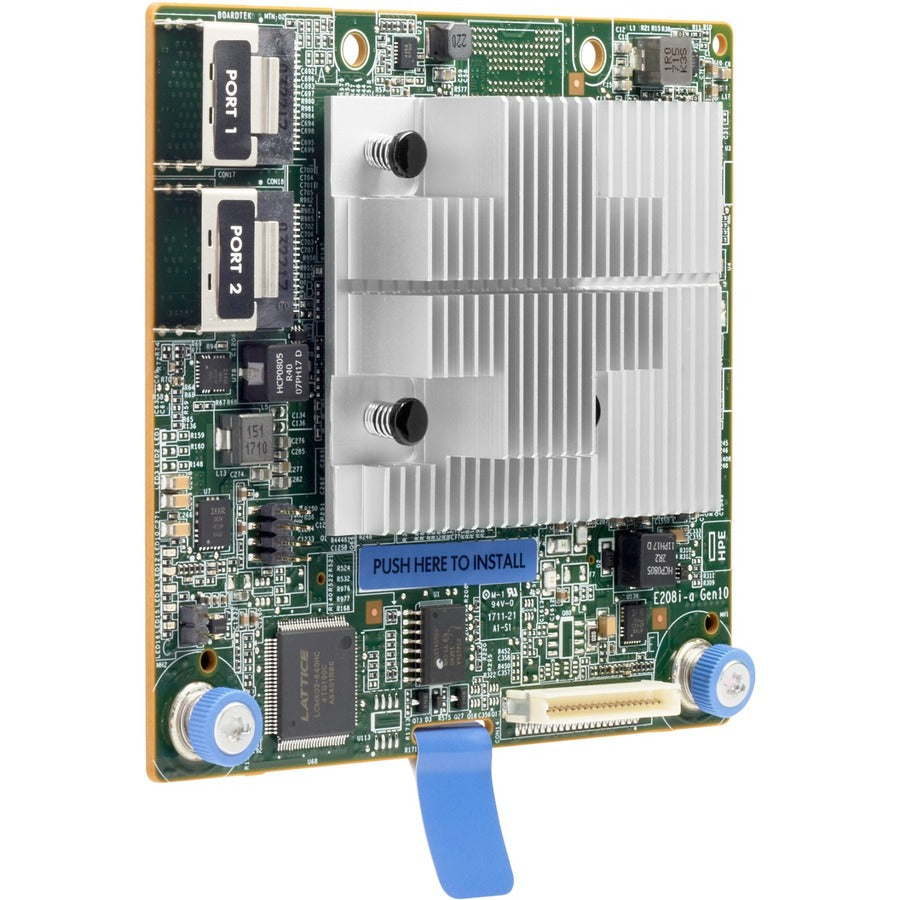

The HPE Smart Array E208i-a SR Gen10 is an enterprise-class storage controller designed for internal drive connectivity without using a PCIe expansion slot. Ideal for use in HPE ProLiant Gen10 servers, this modular controller delivers high-performance 12Gb/s SAS and 6Gb/s SATA connectivity across 8 internal lanes via 2 x4 Mini-SAS ports.
It supports RAID 0, 1, 5, and 10 levels, along with Mixed Mode operation, which enables simultaneous RAID and HBA functionality. This controller also features support for HPE Smart Array SR Secure Encryption (optional license), offering robust data-at-rest protection. With no onboard cache, the E208i-a SR Gen10 is an excellent cost-effective solution for systems where simplicity, efficiency, and data protection are essential.
| Specification | Details |
|---|---|
| Part Number | 804326-B21 |
| Model | HPE Smart Array E208i-a SR Gen10 |
| Form Factor | Type-a modular controller |
| Interface | PCI Express 3.0 x8 (via storage slot, not PCIe slot) |
| Ports | 8 internal SAS lanes via 2 ×4 Mini-SAS ports |
| Transfer Rate | 12 Gb/s SAS per lane6 Gb/s SATA per lane |
| Cache | No cache |
| RAID Levels Supported | 0, 1, 5, 10 |
| Supported Features | Mixed Mode (RAID + HBA), HPE Smart Array SR Secure Encryption (optional) |
| Warranty | 3-year parts only |
| Servers Supported | HPE ProLiant DL360 Gen10HPE ProLiant DL380 Gen10HPE ProLiant ML350 Gen10HPE ProLiant XL450 Gen10 |
