Description

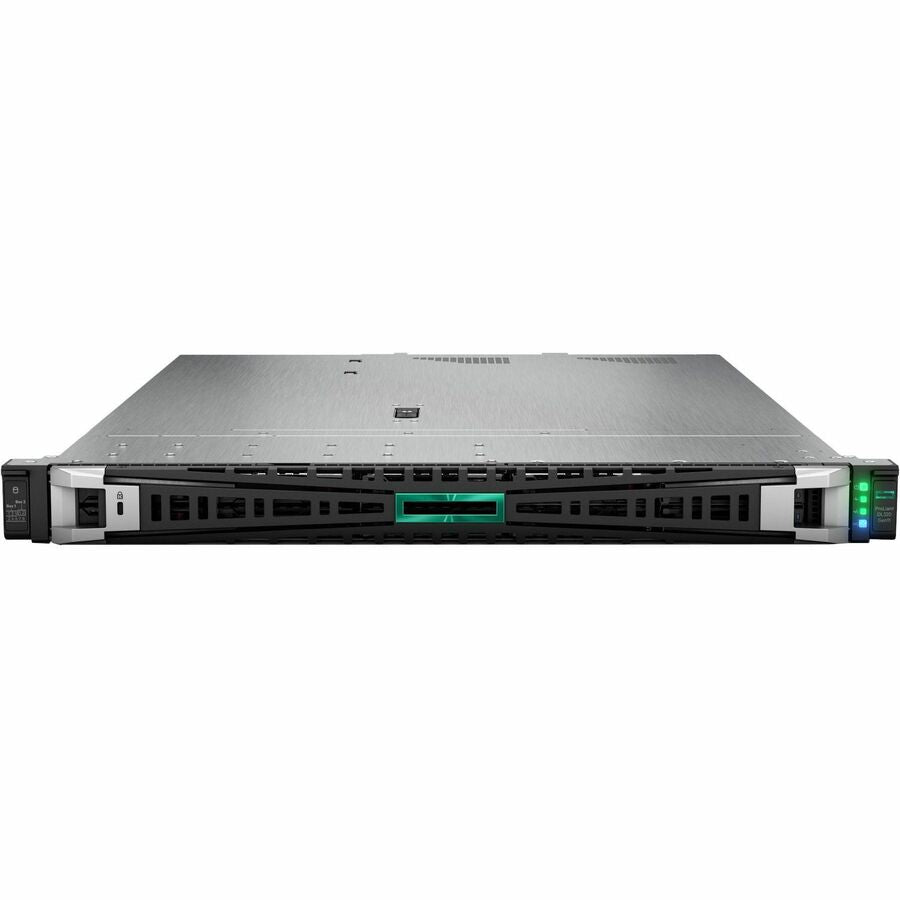

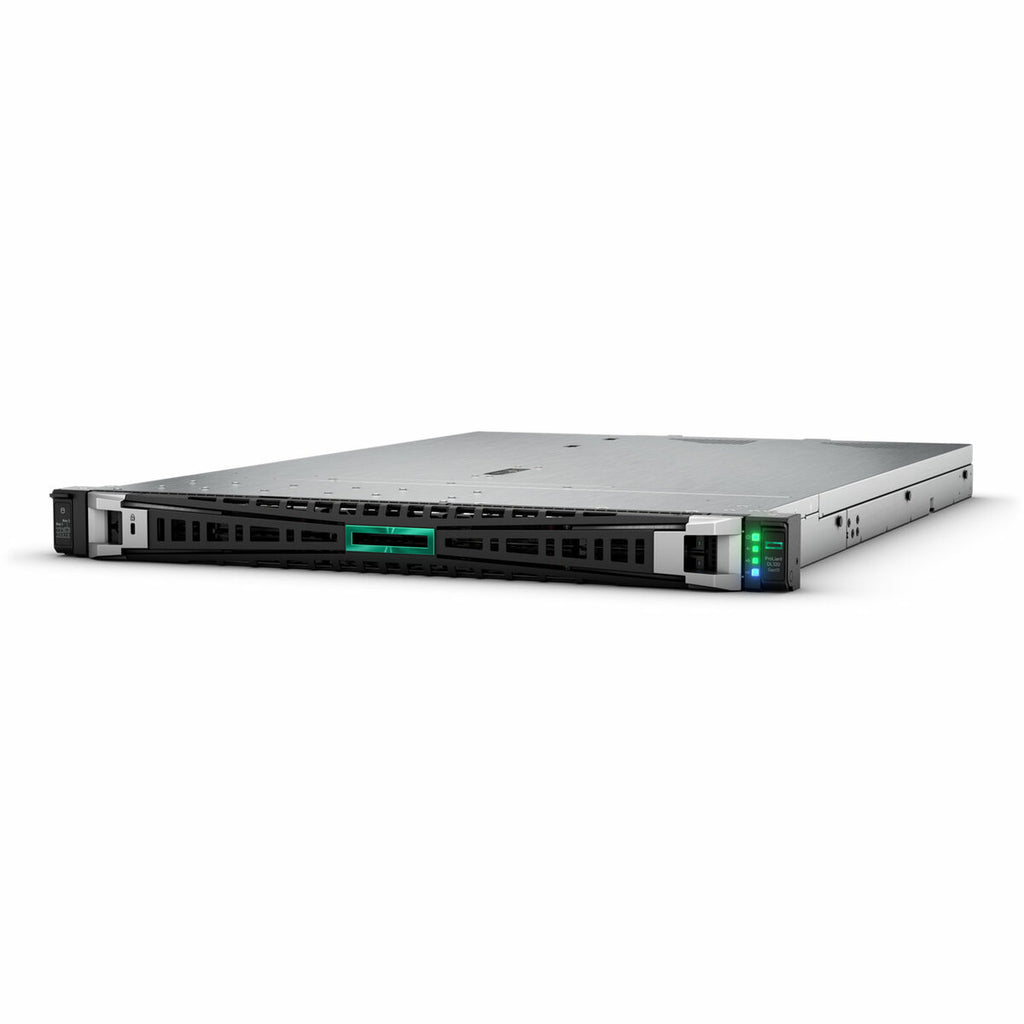

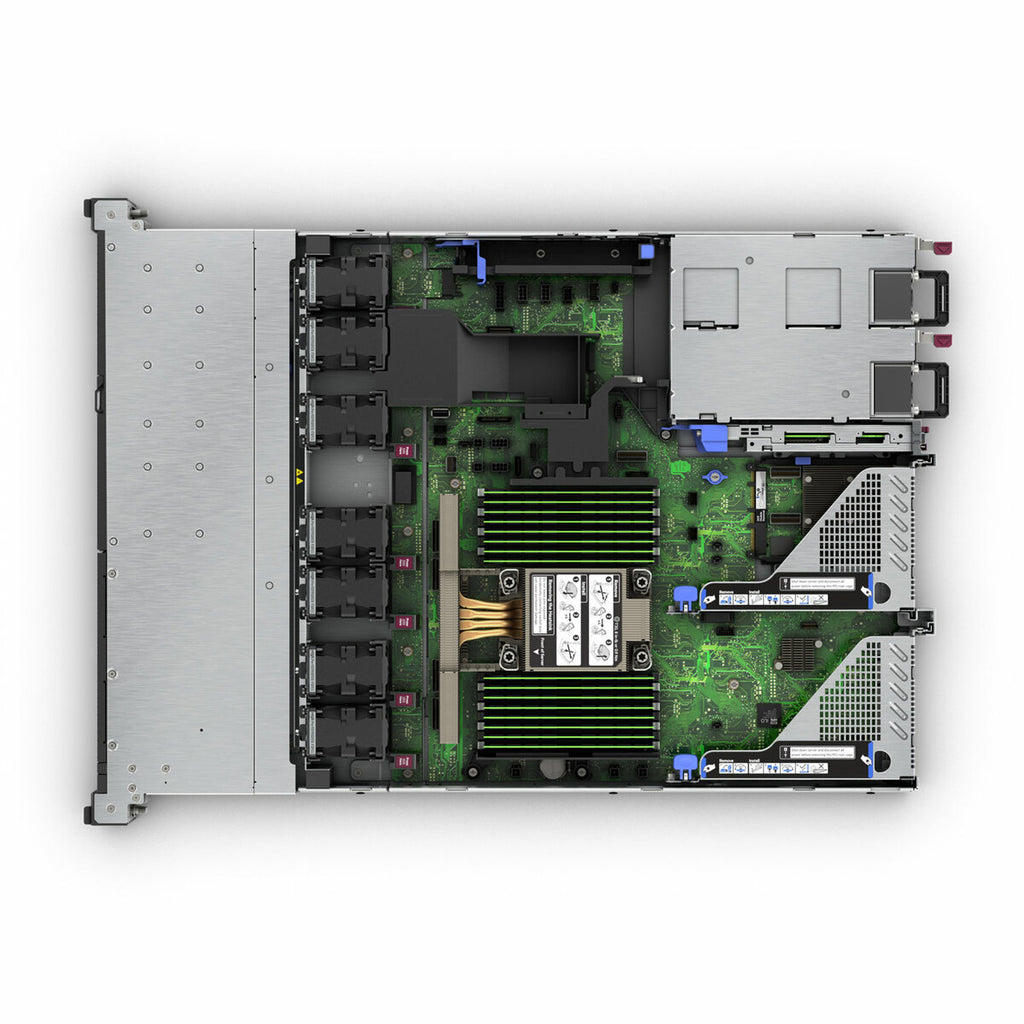

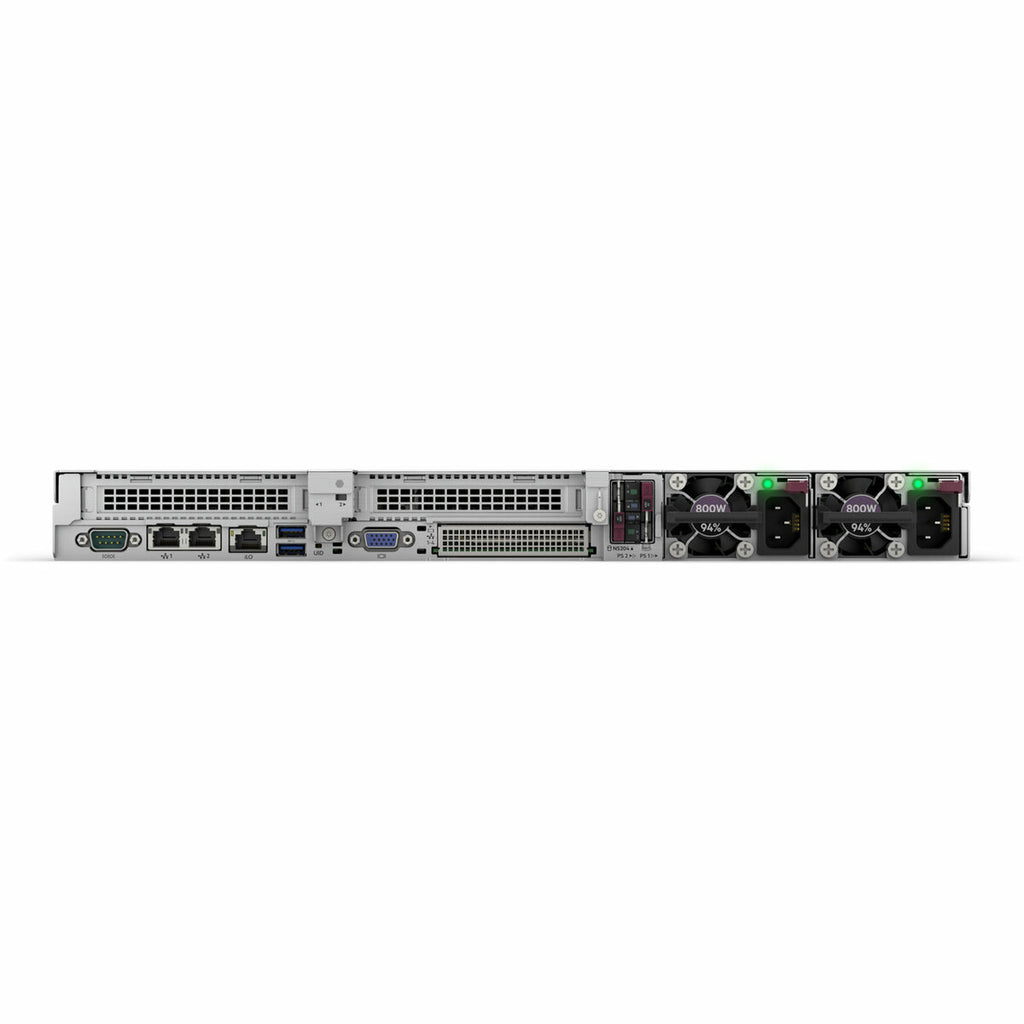

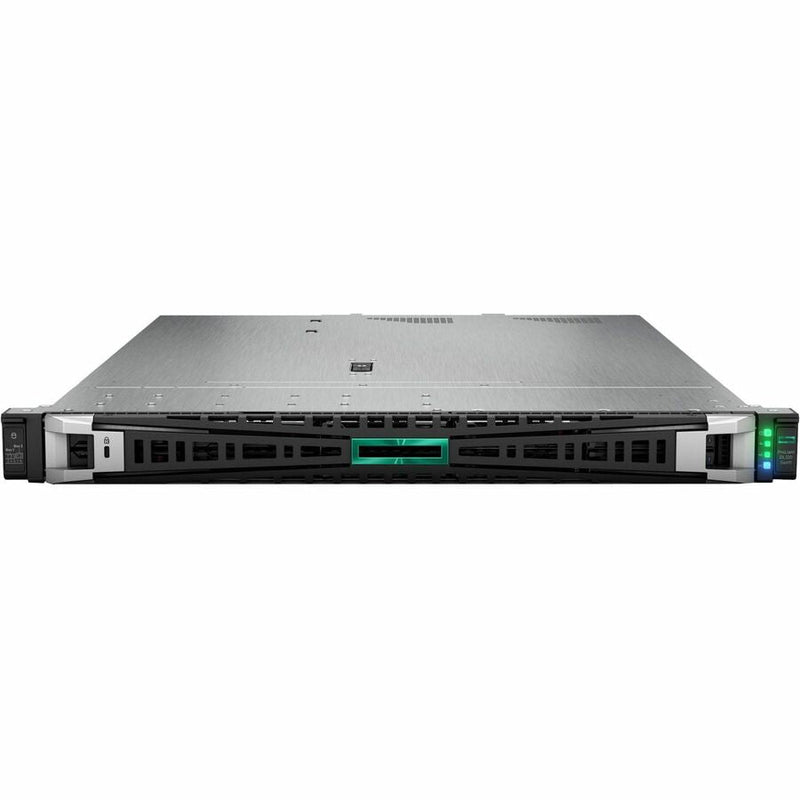

Designed for performance, scalability, and edge workloads, the HPE ProLiant DL320 Gen11 server is a powerful 1U, 1P rack-mount server built for modern hybrid IT environments. Powered by an Intel® Xeon® Gold 6530 32-core processor and equipped with 128GB DDR5 memory, this server is optimized for virtualization, VDI, and compute-heavy workloads at the edge.
With hot-swappable drive bays, support for both SAS and NVMe, PCIe Gen5 expansion, and enterprise-grade RAID via the HPE MR416i-o controller, the DL320 Gen11 ensures reliable performance and flexible storage configurations. Integrated HPE iLO6 and HPE Compute Ops Management deliver cloud-based simplicity for managing from anywhere. This server is ideal for edge AI, computer vision, and high-performance compute environments.
| Category | Specification |
|---|---|
| Model Number | P78100-005 |
| Form Factor | Rack-mountable 1U |
| Processor | 1x Intel® Xeon® Gold 6530, 32-core, 2.1GHz, 160MB L3 Cache, 270W |
| Memory Installed | 128GB (2x64GB) DDR5 Registered Smart Memory |
| Max Memory Supported | Up to 2TB DDR5 (16 DIMM slots per processor) |
| Storage Bays | 10 x 2.5" SFF Hot-swap |
| Storage Installed | 3 x 2.4TB 12G SAS 10K HDDs, 2 x 1.92TB SATA SSDs (Mixed Use) |
| RAID Controller | HPE MR416i-o Gen11, 8GB Cache, x16 Lanes, OCP SPDM |
| Network Controller | Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter |
| Expansion Slots | 2 x PCIe Gen5, 1 x OCP 3.0 Gen5 |
| GPU Support | Up to 4 single-wide or 2 double-wide GPUs (optional) |
| Power Supply | 2 x 1000W Flex Slot Titanium Hot Plug Power Supply |
| Management Tools | HPE iLO 6, HPE OneView, HPE Compute Ops Management |
| OS Installed | None |
| Monitor | None |
| Warranty | 3/3/3 (3-year parts, labor, and onsite support) |
