Description

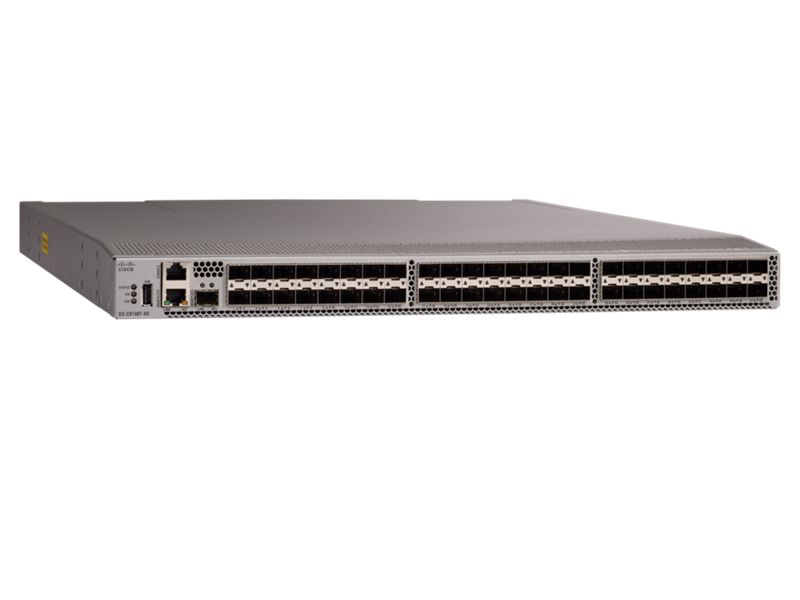

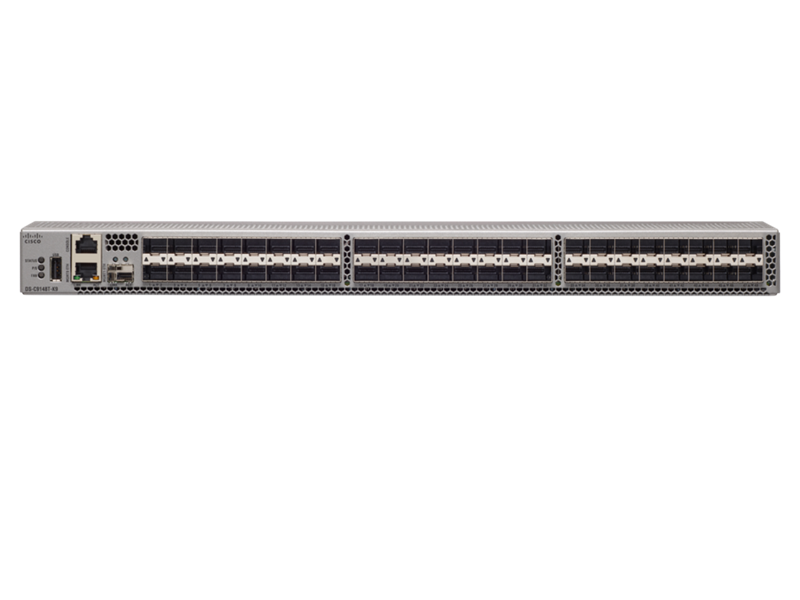

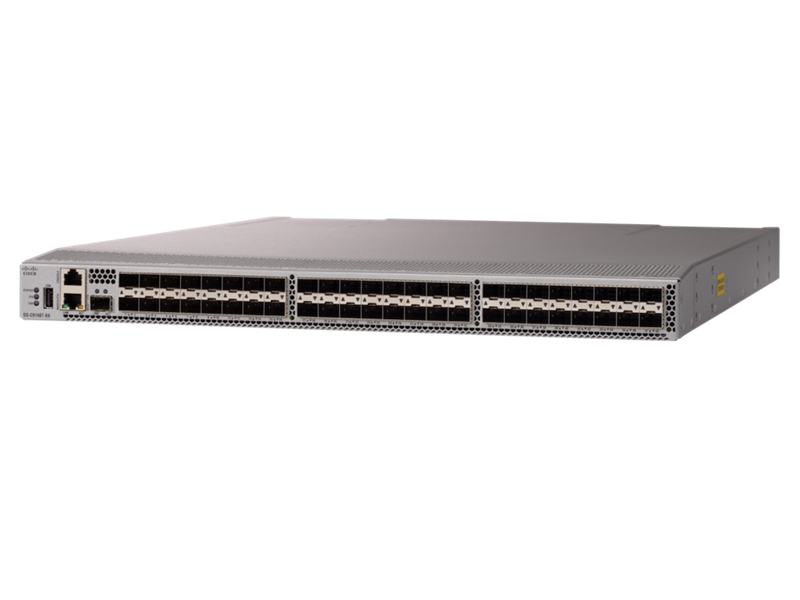

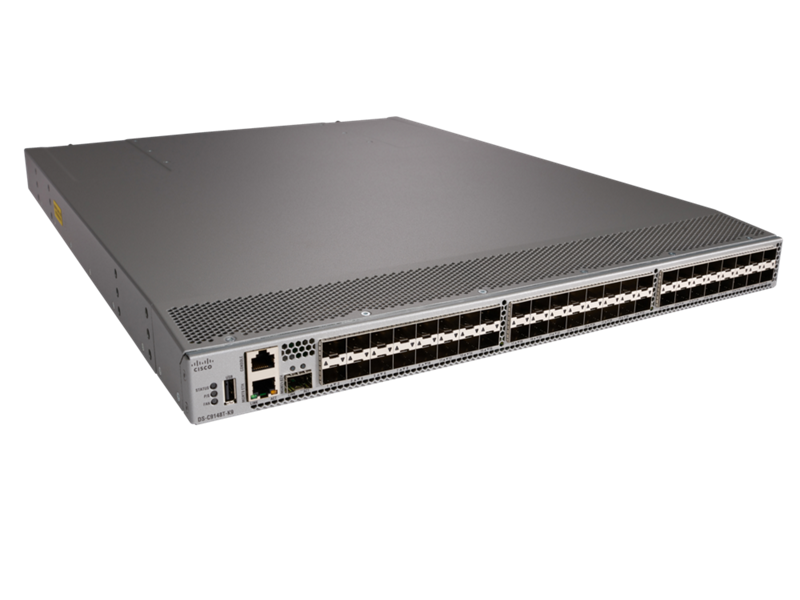

The HPE SN6620C 32Gb 48/24 Fibre Channel Switch delivers high-speed, low-latency 32Gbps Fibre Channel connectivity ideal for NVMe/All-Flash SAN environments. Designed to scale from 24 to 48 active ports, it offers an aggregate switch bandwidth of 1536 Gbps, enabling seamless cloud-scale deployments across small to large enterprises. With hot-swappable components, stateful upgrades, robust encryption, and support for Cisco DCNM/NDFC management, this switch is built for flexible, secure, and future-ready SAN infrastructures.
| Specification | Details |
|---|---|
| Product Number | R0P12A |
| Port Speed | 32 Gb |
| Ports | 24-port active, expandable to 48 with 8-port licenses |
| Aggregate Switch Bandwidth | 1536 Gbps (maximum) |
| Encryption Capability | SNMPv3 with AES, Cisco TrustSec payload encryption |
| Protocol Supported | Fibre Channel |
| Form Factor | 1U rack-mountable |

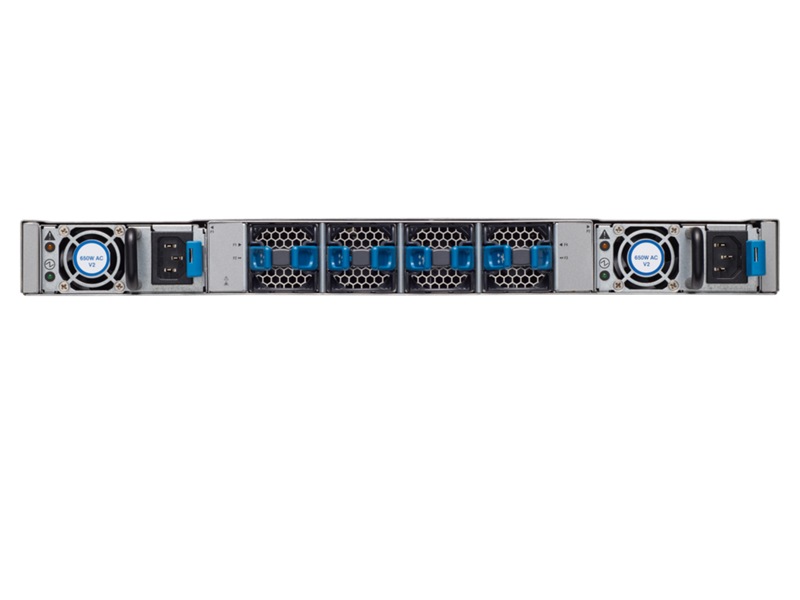

| Availability Features | Hot-swappable power/fans/optics, stateful process restart, redundant power |
| Media Types Supported | 32 Gb, 16 Gb, and 8 Gb transceivers |
| Upgradability | 8-port incremental upgrades (up to 48 ports) |
| Management Software | SMI-S, CLI, Cisco DCNM/NDFC REST API |
| Optional Software Licenses | Port Upgrade, DCNM, SAN Insights, Advantage & Premier (1/3/5-year) |
| Dimensions (W x D x H) | 43.9 x 56.6 x 4.37 cm (17.3 x 22.3 x 1.72 in) |
| Weight | 8.5 kg (16.7 lb) |
